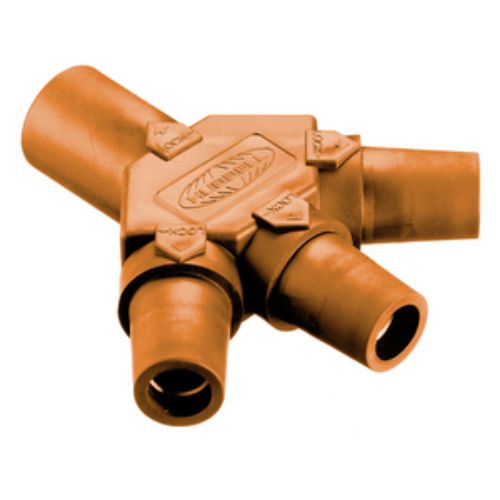

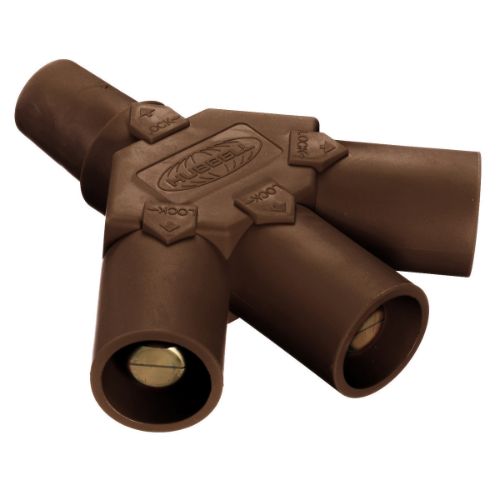

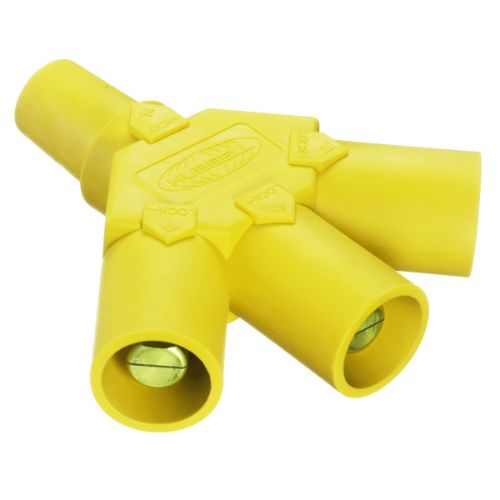

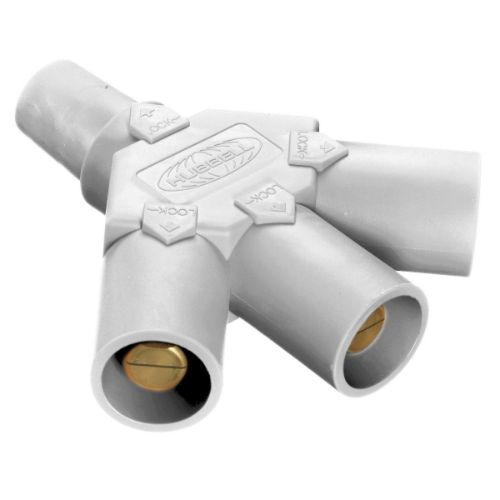

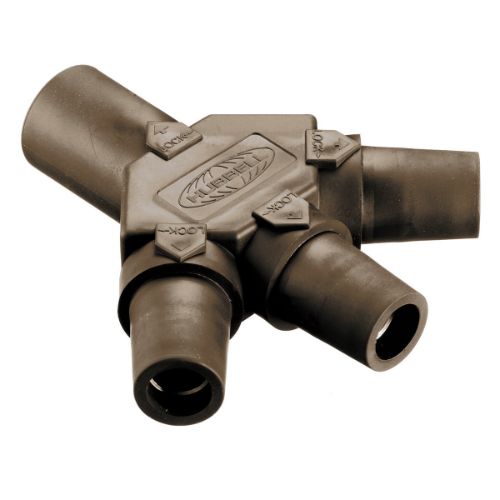

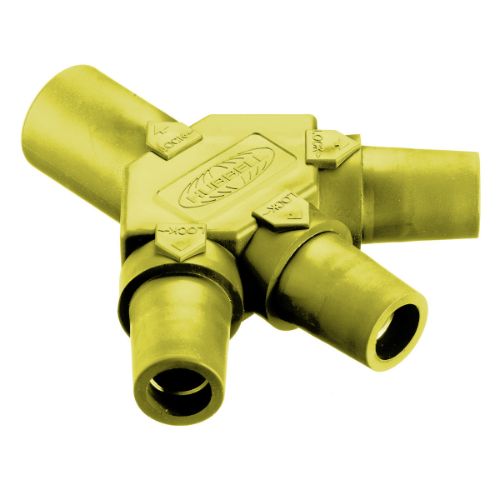

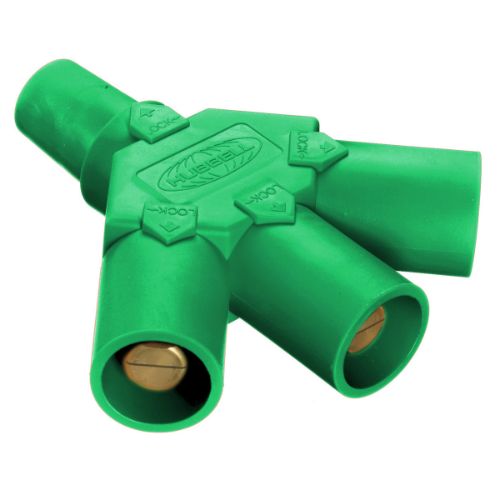

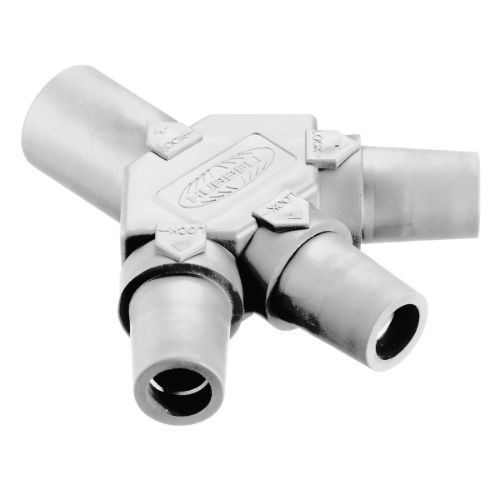

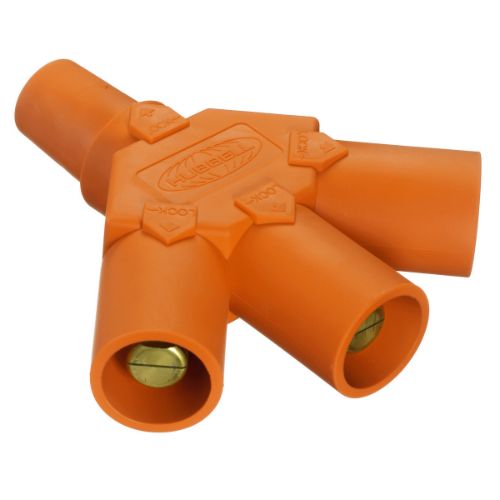

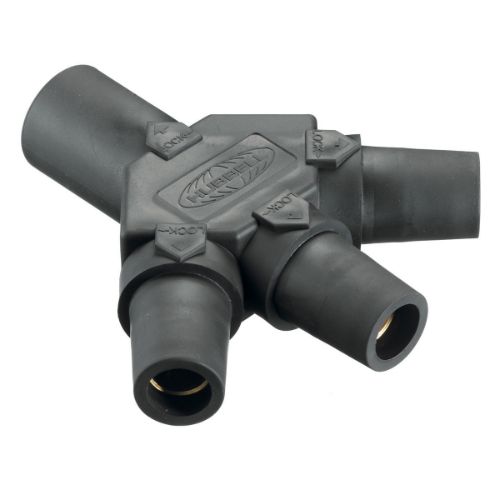

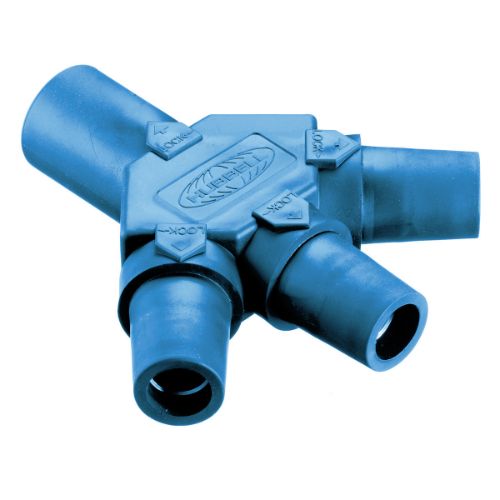

The Series 16 three-way connecting adapters, made by Hubbell, are designed for use in harsh environments. This device offers a three-way transfer
of electrical current that is useful when several connections are needed. Use these adapters to connect power for reliable, strong connections in a range of industry sectors.
Available in Black, White, Green, Red, Blue, Brown, Orange, and Yellow.
Features:
of electrical current that is useful when several connections are needed. Use these adapters to connect power for reliable, strong connections in a range of industry sectors.
- Connect portable cables to distribution boxes and generators
- Power stages and studios to provide lighting for on-set filming
- Provide power to carnivals, theme parks, fairs, and concerts
Available in Black, White, Green, Red, Blue, Brown, Orange, and Yellow.
Features:
- Made with features that are suitable for tough environments
- Interchangeable with other brand names three-way adapters. (Marinco, Leviton, Crouse-Hinds)
- Made of Thermoplastic Elastomer (TPE) crack resistant to extreme heat or cold
- The TPE housing is a NEMA-rated enclosure preventing dust, dirt, and moisture from penetrating
- The housing is a rounded design which prevents snagging on other structures or equipment
- Turn and Lock symbol aids to indicate that devices are properly connected – devices lock 180° to prevent accidental disconnect and vibration proof
- A large Raised Alignment Arrow aids in the mating of devices
- Non-conductive retaining screws lock the contacts into place – prevent movement during usage.
- High conductivity for reliable power
- Material: Brass and Elastomer
- Number of Pins: (1) Male In – (3) Female Out, OR (1) Female In – (3) Male Out
- Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
- Amperage Rating: 400A Maximum
- Voltage Ratings: 600V AC Maximum 250V DC Maximum
$278.06
