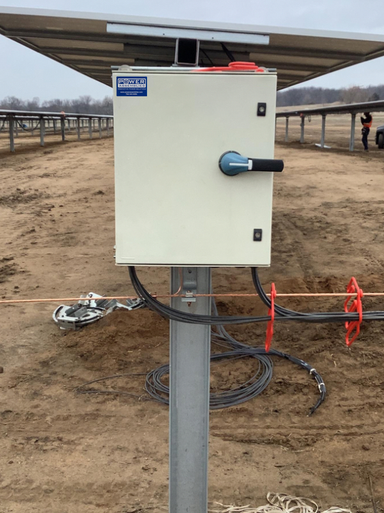

ATI provides the standard variation 400A, 1500V, and 1000V Photovoltaic Combiner Boxes equipped with a watertight enclosure and a handle that also functions as a load-break-rated disconnect switch. Our Combiner Box can mount in various styles where grid tie-in is necessary, including wall, pedestal, array structure, and pole mount styles.

When used as an addition to a complete solar storage system, the PV Combiner Box combines strings from an array and creates a convenient, organized current that is ideal for storage and usage of downstream machinery. PV Source Circuit Connections provide touch-safe fuse holders and Type II factory-installed overcurrent protection. It also features a 20-position busbar to terminate negative source conductors and create a single output circuit.

Data collection options are available to support the efficiency of the solar system, and custom configurations are available by request. For any custom configurations please contact us at PPG@ATIelectrical.com.

Application:

Off-Grid Solar Systems
Residential Solar Systems
Commercial and Industrial Solar Systems
Solar Micro-Grids

Guarantee:

2-Year Standard Warranty

Key Features:

NEMA 4X, IP66 Waterproof Grade Enclosure
Non-Fusible 2P Safety Disconnect
Wall, Pedestal, Array Structure, and Pole Mounting Capabilities
Data Collection Variations Available
Custom Configurations Available by Request
