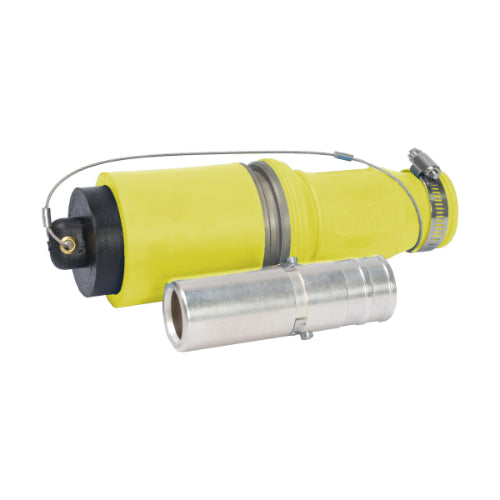

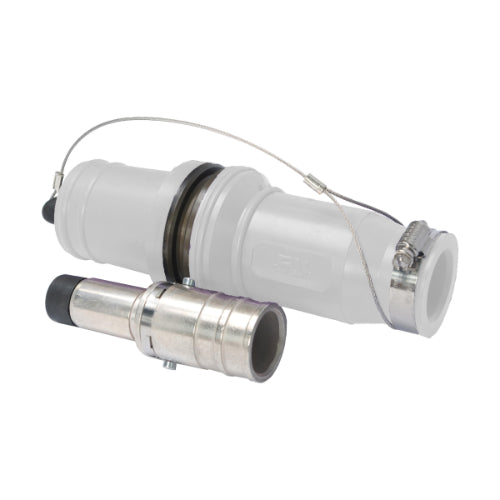

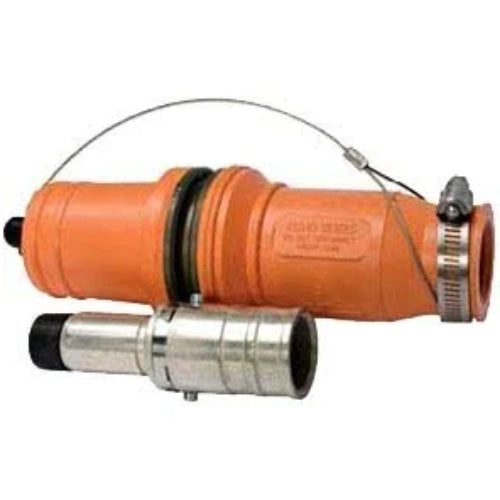

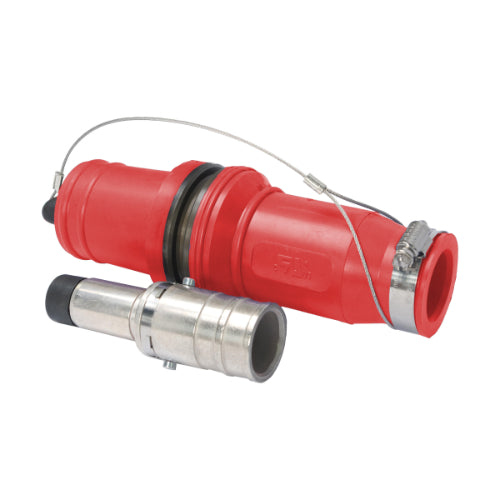

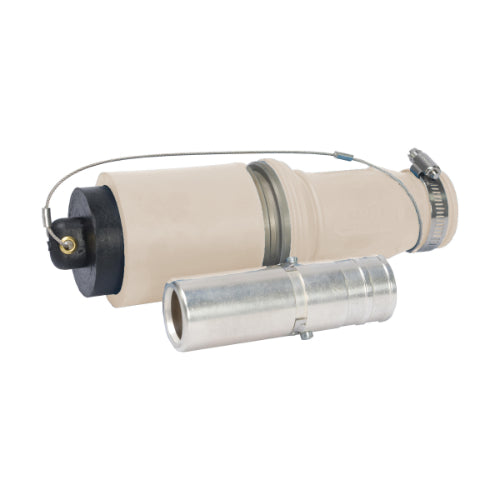

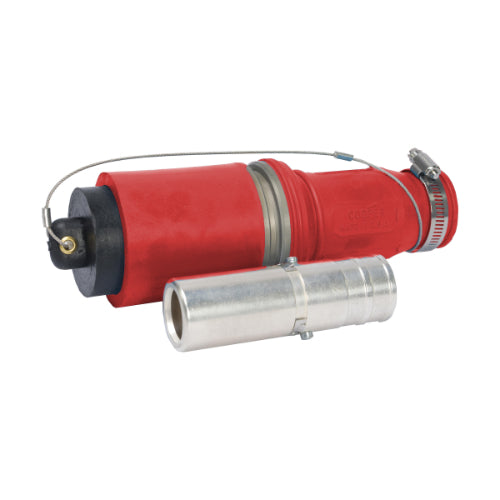

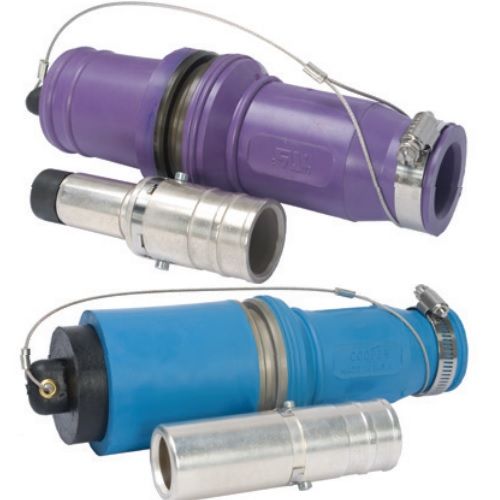

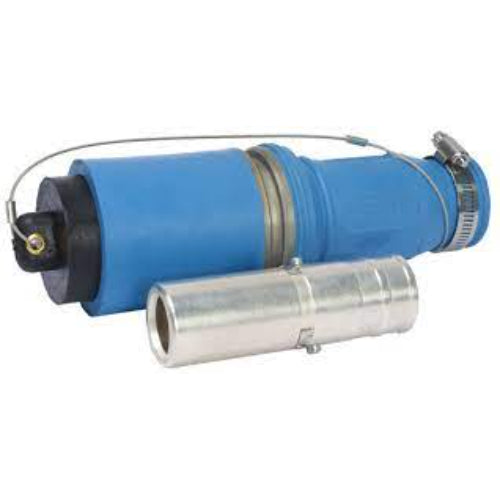

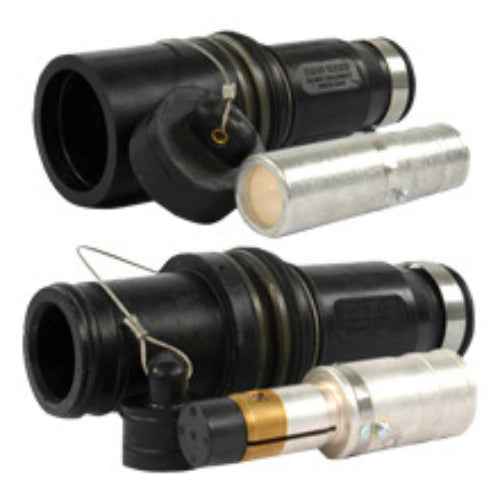

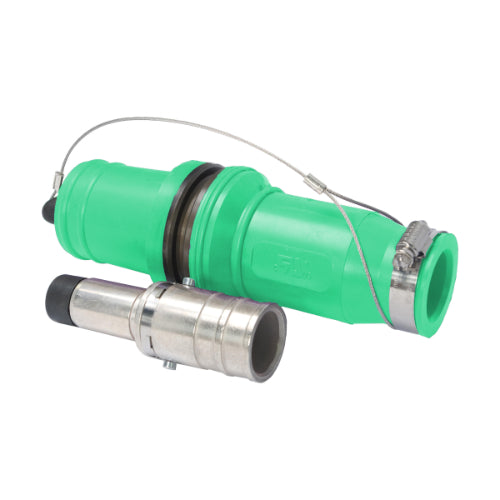

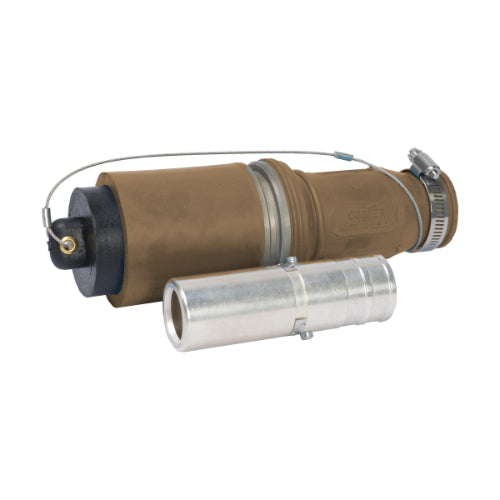

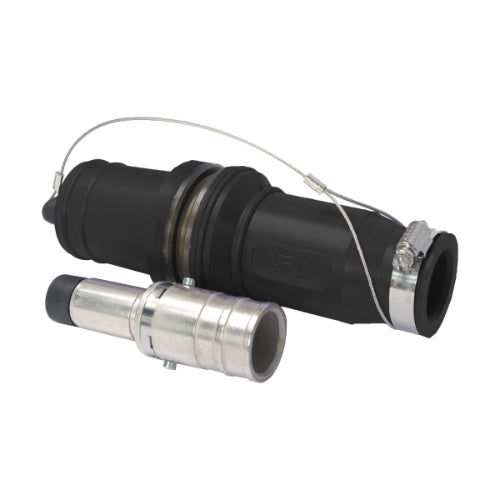

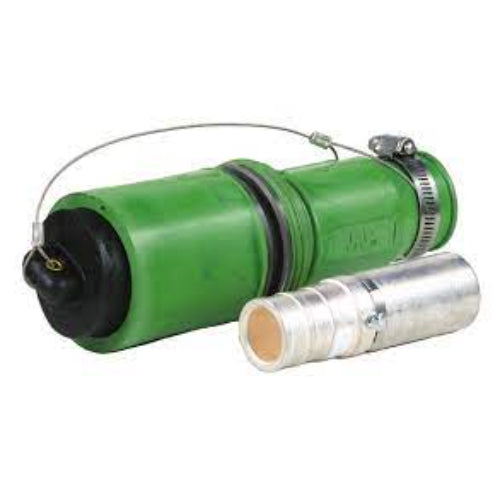

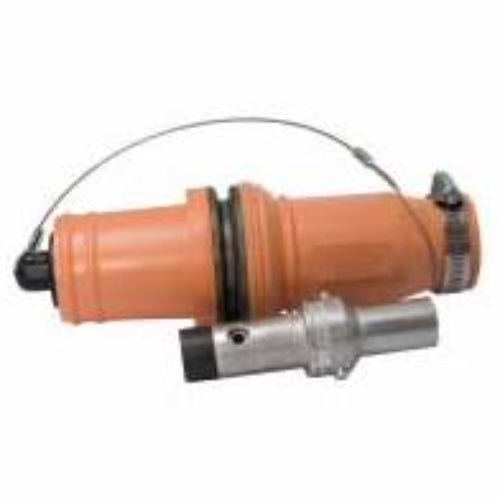

Roughneck E1049 Series Male and Female Standard Connectors - 777 MCM

$1,121.22
$1,121.22
SKU ECH-E1049-70
Categories:
These Roughneck™ E1049 series connectors are made rugged and hardy, ideal for land based drilling applications. They are designed to withstand heavy abuse all the while maintaining a safe and secure connection.

Features and Benefits
  • Contacts machined from solid copper and specially plated for corrosion resistance and superior conductivity
  • Color-coded rubber insulator provides quick visual identification of circuit and phase connections
  • Watertight insulators provide maximum protection
  • Male and female contacts are assembled to cable with standard crimp tools
  • Drive pins on contacts securely lock it to the insulator
  • Male contacts are equipped with safe front insulated tip

Product Specification
  • Cable Size: 777 MCM
  • Voltage Rating: Up to 1135A continuous
  • Ampacity rating at 40° ambient: 916 Amps at 90°C - 1135 Amps at 125°
  • Material - Insulator: Rubber
  • Material – Receptacle Shell: epoxy powder coated aluminum alloy
  • Material – Hardware: Stainless Steel
  • Material – Contact: Copper
