Power Assemblies TruOne MTS – Non-Switched Neutral
This NTS is available in your choice of single, double, or three-pole options with a non-switched neutral. You can select your choices from the drop-down menus on the right-hand side of this page. It is a bottom-entry transfer switch, meaning the sources will be located at the bottom of the enclosure, and the load on the top. For custom requests you cannot find on our site, please contact one of ATI’s portable power experts at (800)-597-9311 or email us directly at PPG@ATIelectrical.com
This Transfer Switch can operate under an Automatic, Manual, Or Non-Automatic Means of switching sources. The NTS will need an operator to transfer power from Source 1 to Source 2 once a power outage occurs. This is crucial in locations where more control over the switching capabilities is necessary. This includes machinery operation and areas where you will constantly switch between two power sources. When entered into Non-Automatic mode, this switch is capable of switching sources manually by using the Human-Machine Interface mounted on the surface of the box.

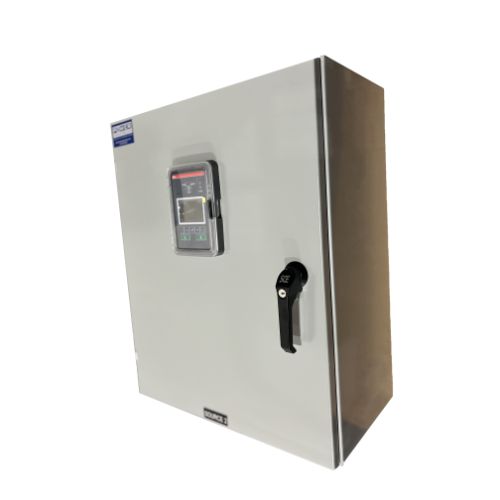

Power Assemblies' all-in-one Non-Automatic Transfer Switch is built inside a highly durable NEMA 3R carbon steel enclosure (Stainless steel available upon request). You can also add on a skid-mounted steel frame with fork pockets and eye holes to easily move it from place to place. This enclosure is capable of weathering extremely demanding markets such as commercial and industrial construction, hospitals, data centers, airports, and rental operations.
All Power Assemblies products are covered by a manufacturer’s warranty for a period of one (1) year from the date of shipment from the manufacturer. This warranty covers all internal operations of the switch and does not include any physical damage or wear and tear from standard use.
- 100A- 1200A
- ANSI-61 Carbon Steel Enclosure for long life and corrosion resistance (Stainless Steel available upon request)
- Wall mountable, Compact Design
- Single-Phase or Three-Phase Arrangements
- Bottom entry; sources on the bottom, load on top
- LCD-screen computer interface
- Non-Switched Neutral
- NEMA 3R Rated enclosure
- Series 16 Male Input Camlocks
- Residential Homes
- Commercial Buildings
- Industrial Sites
- Data Centers
- Rental Markets
- Airport Facilities
- Medical Facilities
- Grocery Stores
- Gas Stations
Please Note: Power Assemblies products are built to order. Please check the lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
