Pilot Lighted 8300 Duplex Receptacle Outlet

$60.13
$60.13
SKU LEV-8300-PLI
Categories:

Get these Extra Heavy Duty Hospital Grade Receptacles from Leviton, featuring their innovative power on light indicator.

Application: The receptacles UL tested to ensure safe operating standards and mechanism in applications that require high-abuse tolerance including:

  • Health care facilities like hospitals and clinics
  • Manufacturing plants and industrial operations
  • Schools and educative centers

 Receptacle Features:

  • The duplex receptacles feature a Power indication – a dot lens with a green LED indicator that will last for over a 100,000 hours of operation. The green light indicates properly function power
  • Face made of impact resistant thermoplastic nylon that withstand knocks and abrasion
  • Impact resistant cover is also smooth. It will not easily collect dirt making it easy to maintain and keep clean
  • Straight blade for plug in receptacle

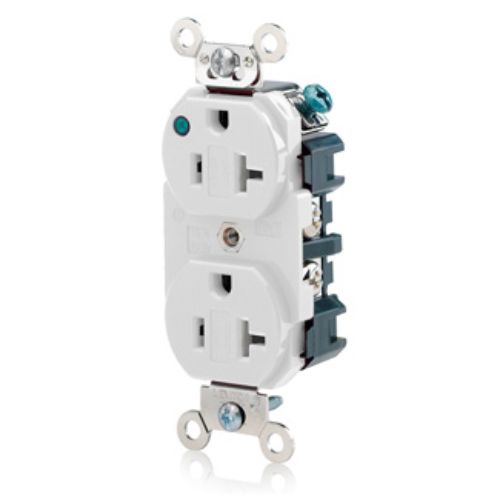

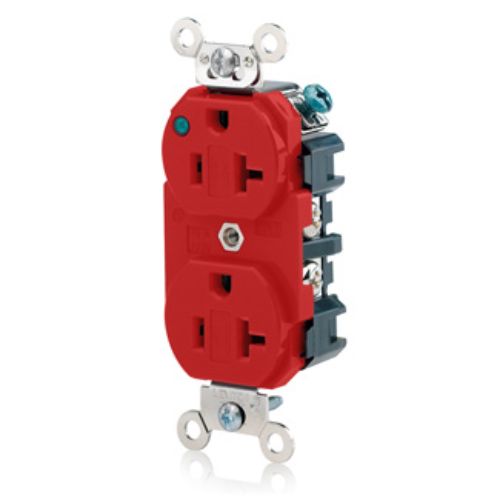

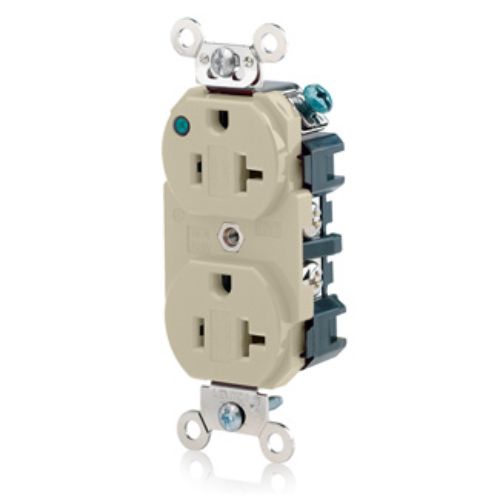

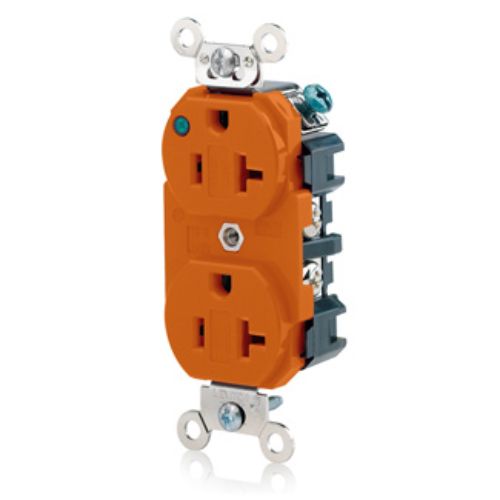

  • Available in white, red, orange, ivory.

Termination and Grounding Features:

  • The receptacle features back and side wire ground termination with back and side wiring options, specifically 8 hole feed through.
  • The terminal screws are made of a high performance brass #10-32 that reduce conductor oxidation
  • There is an apron barrier between terminal screw heads and metal box to prevent accidental contact
  • V shaped serrated back wiring clamps for superior contact

Safety and Environmental Features:

  • Meets all UL listed requirements, NEMA 5-20R rating, CSA certifications and is backed by 10 year warranty
  • The flammability is rated V-2 per UL94
  • The receptacle has optimal operating temperature range of -40°C to 60°C

Electrical Specifications

  • AC Horsepower Rating: 1 HP
  • Amperage: 20 A Current Limiting: Full Rated Current Dielectric
  • Voltage: Withstands 2000V per UL498
  • Grounding: Self-Grounding
  • Pole: 2
  • Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
  • Voltage: 125 VAC
  • Wire: 3
Mechanical Specifications Product ID:
  • Markings are permanently marked on device Terminal Accom.: 14-10 AWG
  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Termination: Back or Side Wire Torque
  • Range: 14-16 inch pounds
Material Specifications Body Material
  • Nylon Clamp Nuts: Galvanized Steel Face
  • Material: Nylon Ground
  • Clips: Nickel-Plated Brass
  • Grounding Screw: Plated Brass Line
  • Contacts: Nickel-Plated Brass Triple-Wipe .040 Thick
  • Strap Material: Nickel-Plated Brass
  • Terminal Screws: Plated Brass

Standards and Certifications: ANSI: C-73; CSA C22.2 No. 42: File 152105; NEMA: WD-6; NOM: 057; UL Fed Spec WC-596: File E13399; UL498HG: File E13399
