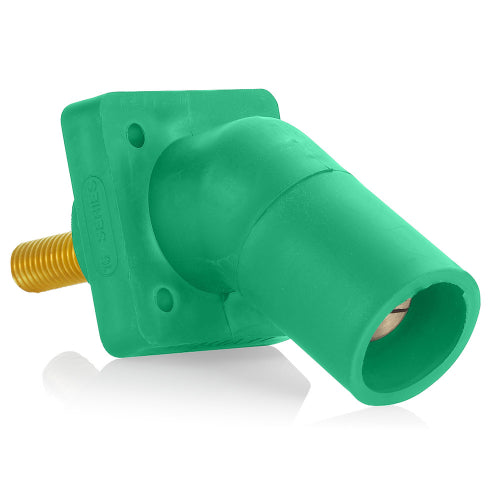

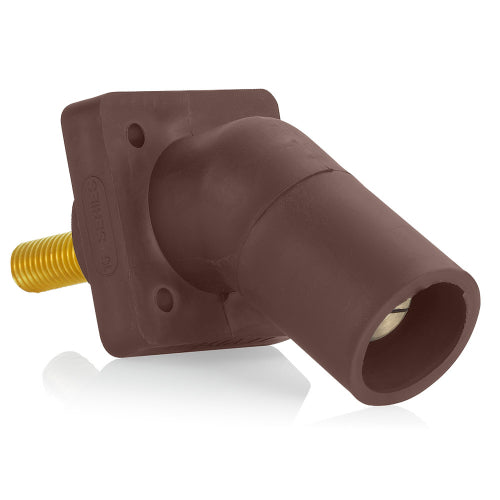

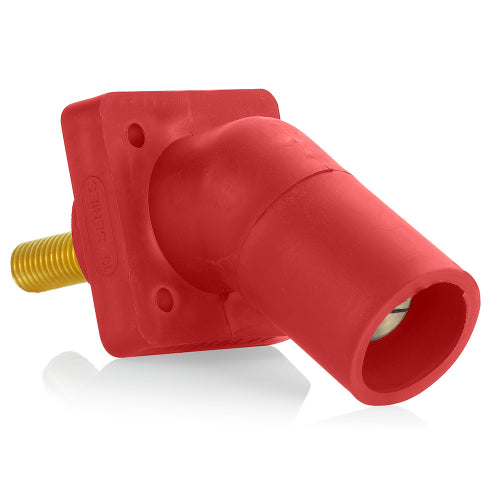

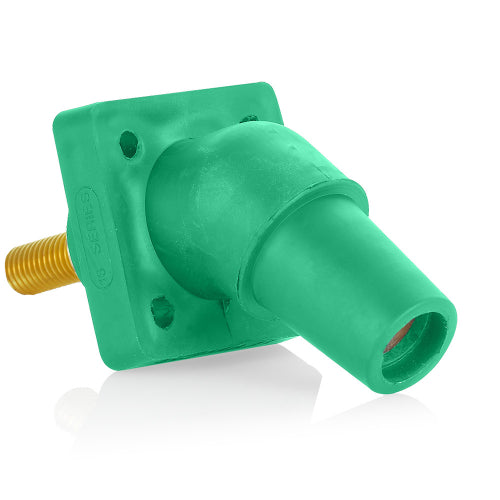

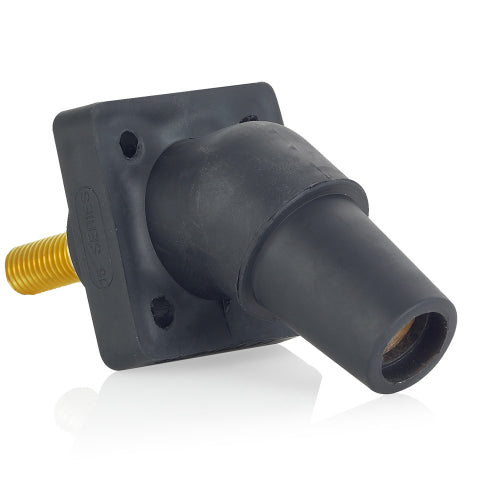

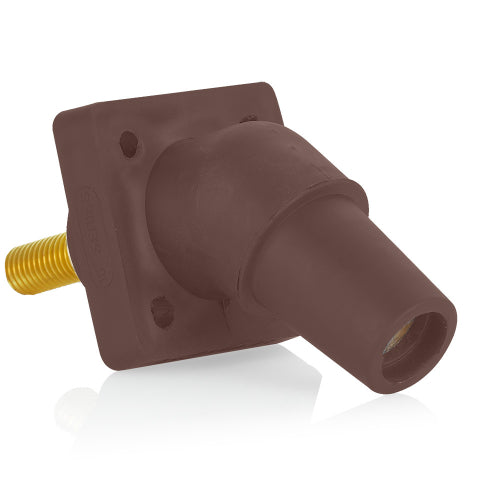

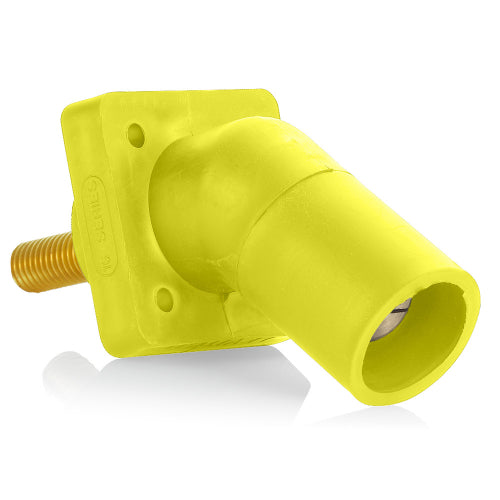

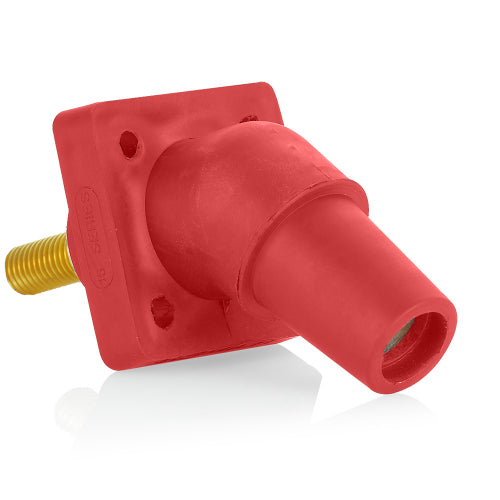

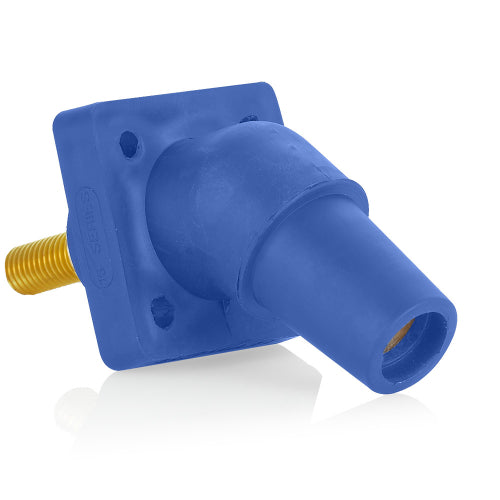

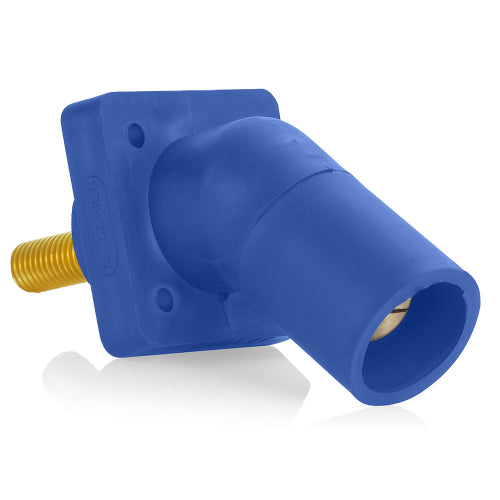

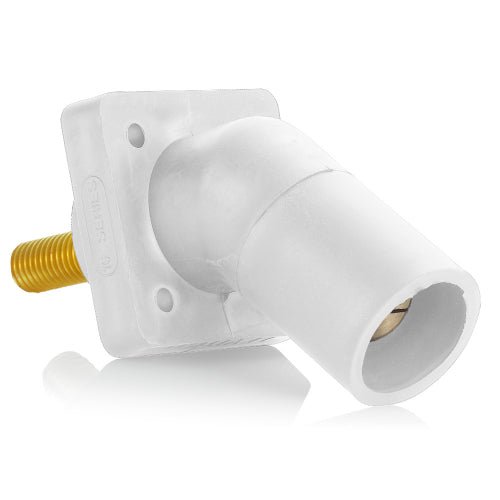

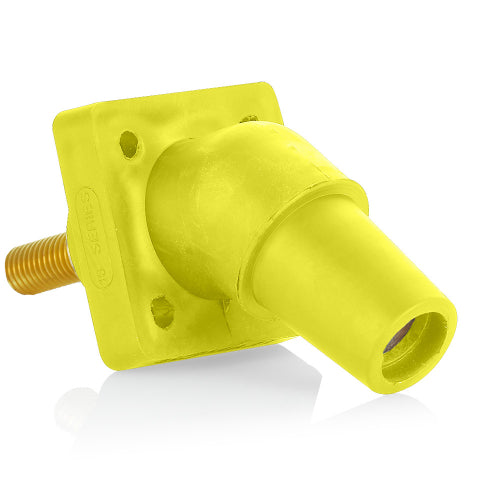

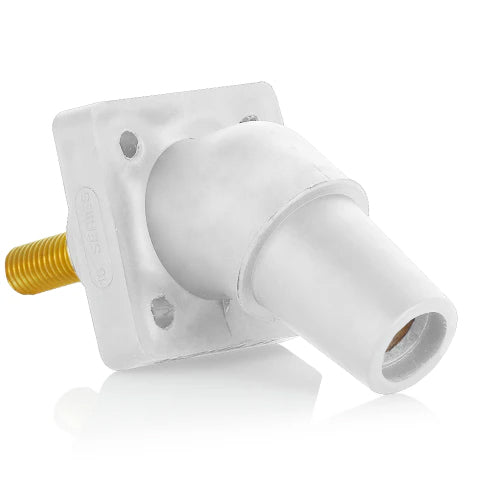

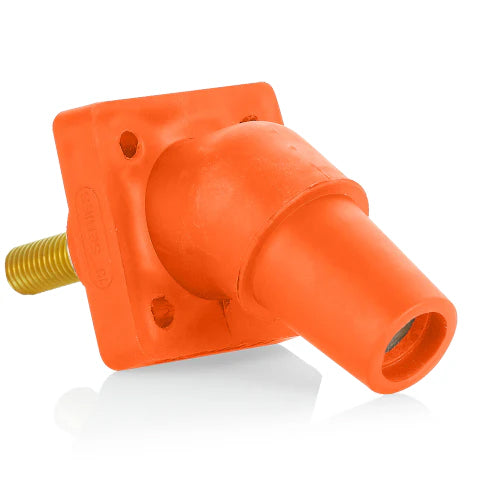

Leviton Threaded Post 45 Degree Series 16 Panel Mount Camlocks, #2 – 4/0 AWG
Leviton Rhino-Hide Single Pole Cam-Type Connectors are tough and reliable even in the most severe operating conditions. These receptacles are available in 8 standard colors in both male and female configurations. Use the drop-downs on the right-hand side to select the color and gender of your choice. These receptacles are used to supply temporary electrical power for numerous indoor and outdoor applications and are designed for easy assembly and disassembly without special tools. The 16 Series Cam-Type is rated up to 400A and 600VAC making it ideal for the most common power distribution applications. This panel mount connector is a 45-degree angled threaded post and is rated for #2 - 4/0 AWG.
All Leviton 16 Series products are interchangeable and compatible with all other manufacturer’s 16 Series Cam-Type products including Marinco, Hubbell, and Crouse-Hinds (Eaton). If you are planning to mount these on existing power distribution equipment, be sure to browse our Premade Cam Lock Panels.
- Rated 400A
- Rated 600VAC
- 45-degree angled cam
- Threaded Stud (Sizes Available: 0.75" L or 1.125" L)
- #2 - 4/0 AWG
- Color-coded for fast and easy phase identification
- Santoprene™ Thermoplastic Vulcanizate (TPV) insulator (or neoprene rubber) sleeve is shatterproof and crackproof
- Cam design provides high conductivity with a positive, vibration-proof connection
- NEMA 3R when connected
- Meets NEC requirements
- UL Listed
- CSA Certified
