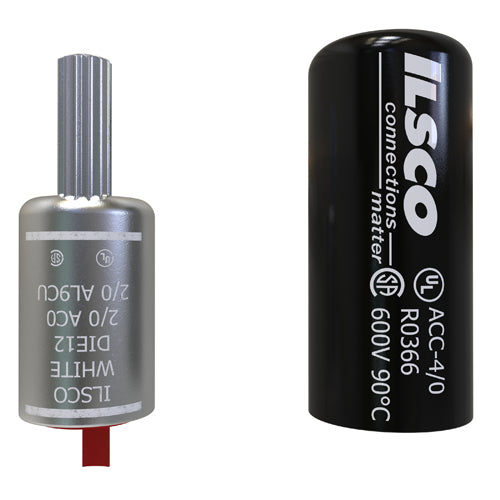

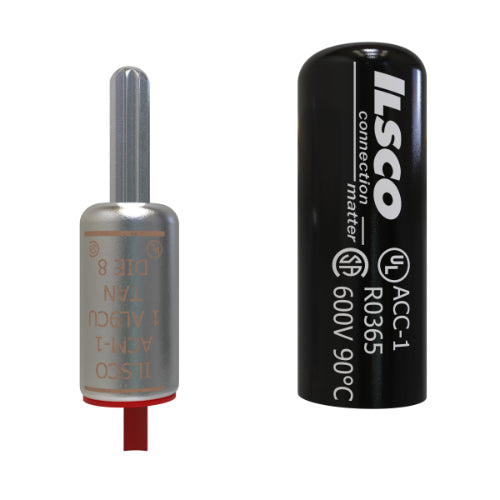

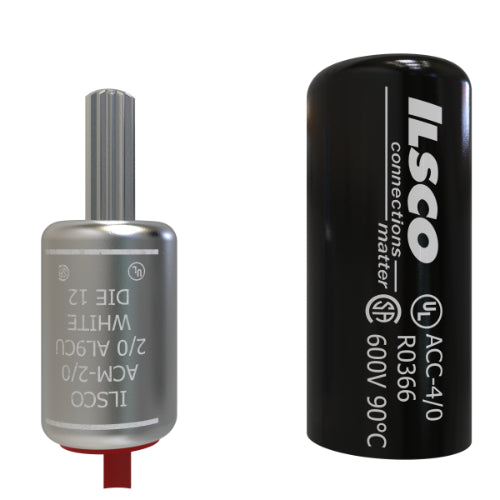

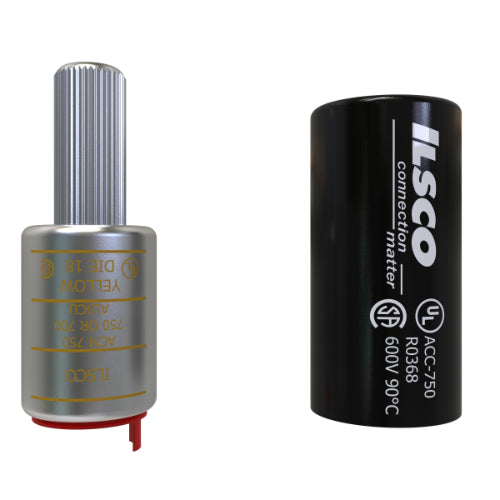

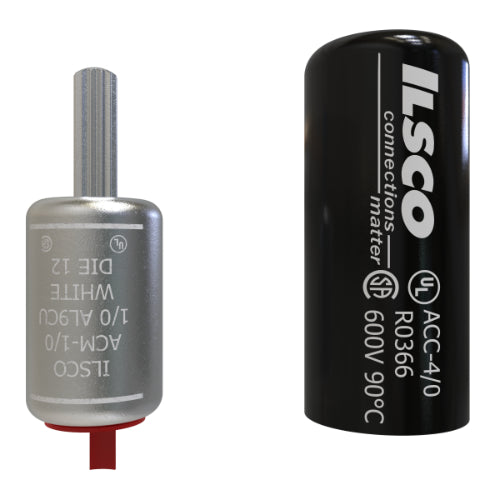

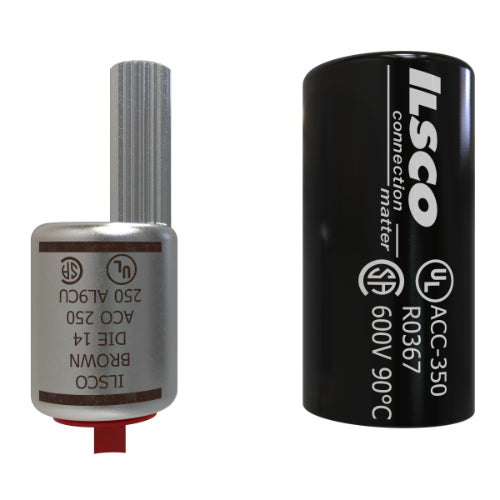

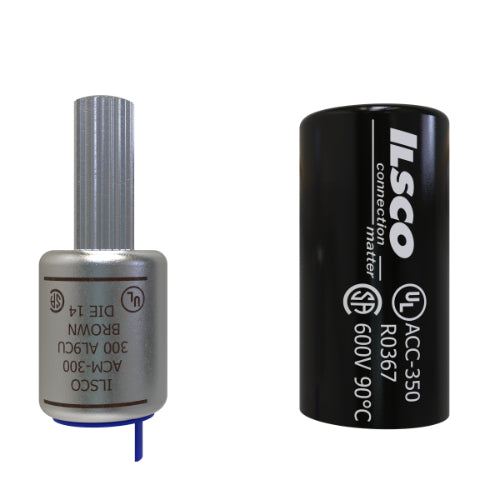

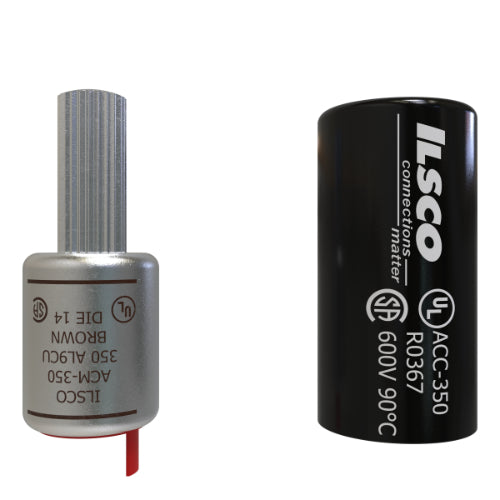

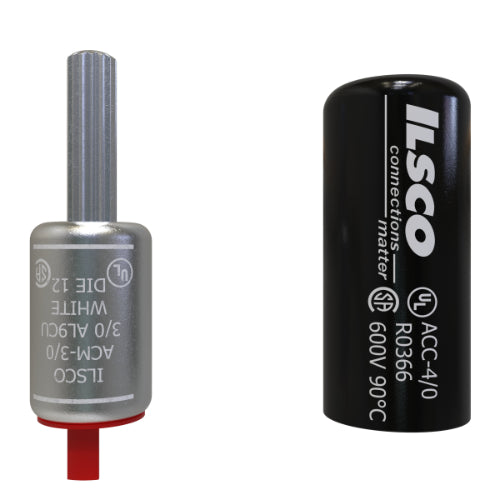

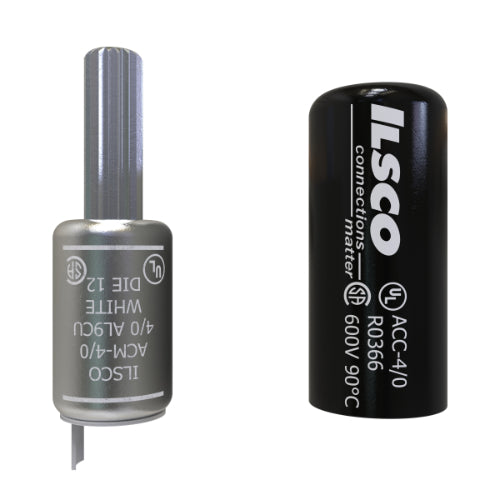

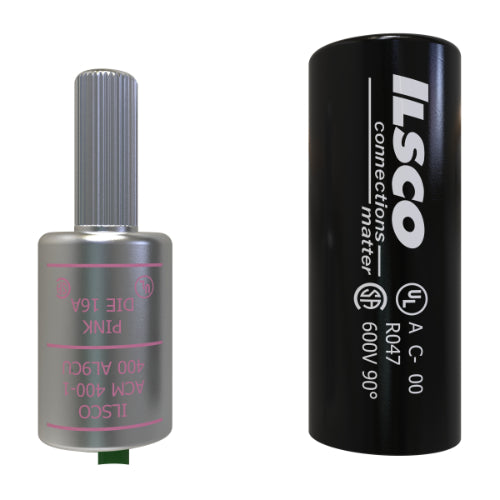

Ilsco Aluminum Compression Pin Adapters
ATI’s Aluminum Compression Pin Adapters are manufactured by Ilsco and offer excellent conductivity paired with an easy-to-crimp design. The Pin Adapters are made with high-strength aluminum alloy and offer you effortless conductor insertion. It ships pre-filled with an oxide inhibitor and includes an insulating cover to protect the connector.
Each Aluminum Compression Pin Adapter is rated for 600V with the insulating cover and up to 35 kV without the insulating cover. Wire sizes range from #6 AWG to 750 MCM, with center and offset pin variations to fit into those tight spaces in your electrical panel. If you would like to request a quote or need Ilsco Compression Pin Adapters not listed on this site, please contact us at (800)-597-9311.
● Center or Offset Pin Variations
● Tin Plated Compression Lugs
● 180° Connecting Angle
● Allows For Aluminum or Copper Connections
● Includes Rubber Insulated Cover
● UL 487A/B Listed
Color Code Dies
|Tan||#6 AWG - 1/0 AWG|
|White||2/0 AWG - 4/0 AWG|
|Brown||250 MCM - 350 MCM|
|Pink||400 MCM - 500 MCM|
|Yellow||600 MCM - 750 MCM|
