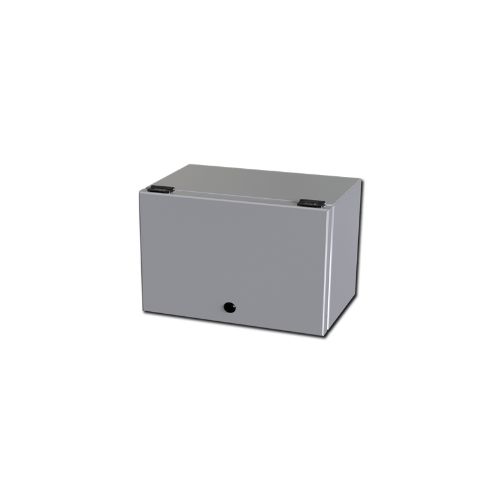

Enviroline ® Series Trough Junction Enclosures

$222.34
$222.34
SKU SAG-SCE-L9126ELJ
Categories:
The trough enclosures are ideally suited for use in both indoor and outdoor environments. They provide protection to your electrical equipment and components that can be safely stored inside. The solid structures guard against the ingress and entrance of solid objects like dirt and water and moisture (rain, sleet, snow). Use this 0,063 inch carbon steel trough to store electricals and disconnects in a range of industrial applications and heavy commercial uses like:
  • Oil refineries
  • Chemical and petrochemical plants
  • Onshore plants
  • Fuel depots
  • Ships and shipbuilding

The trough is NEMA rated and UL listed, so designed according to industry standards to be corrosion resistant to the environmental elements and UV resistant to sun exposure.
Mechanical Features
  • 0.063 In. carbon steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil & water resistant gasket
  • Standoffs provided for mounting optional panels.
  • Removable hinges.
  • Doors open 180 degrees.
  • Black mini quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Sealing washers and hole plugs included.
  • Ground stud on door & body.
  • Mounting holes in back of enclosure.
  • Mounting feet included.
  • Padlocking or keylocking latches, and tamper-resistant hardware is available.
