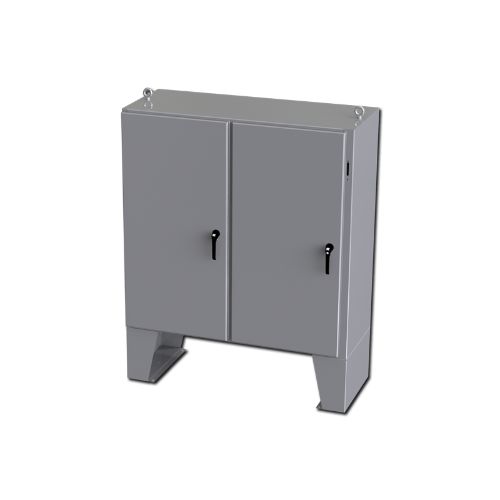

Enviroline® Two Door Enclosure for Flanged Mounted Disconnects

Application

• These two door enclosures are well suited for housing standard disconnects in the 0,104” thick carbon steel housing.
• Available in three sizes, you can select the enclosure that bests suits your disconnect needs.
• The enclosure can also store and secure other electrical instruments and components.
• For outdoor use, a drip shield and drain hole is required.

Plus, with two doors, these enclosures are perfect for use in industrial and heavy commercial environments: Oil refineries, Chemical and petrochemical plants,  Onshore plants,  Fuel depots Ships and shipbuilding, and Safety & Protective
Features
These enclosures are NEMA rated and UL Listed. That means the housing is resistant to dust, oil and water ingress. In addition the enclosures have the extra protection of flange trough collars on all sides of the opening doors, to prevent these items from entering through the edges, when the door is open. The powder coated carbon steel is also corrosion and UV resistant, able to withstand harsh industrial environments.
Mechanical Features
The enclosure is designed with a 0,104 inch thick carbon steel housing, strong enough to contain the components of your circuit breaker and other electricals with ease. The seams of the enclosure are welded and ground smooth for a clean, neat look that will fit in anywhere.
Other features are as follows:

• Oil-resistant gasket.
• Concealed hinges.
• Removable and interchangeable doors. 3-point latching mechanism.
• Removable print pocket on main door of disconnect enclosures.
• Lifting eyes for easy handling.
• Ground studs on door and body.
• Collar studs provided for mounting optional sub-panels.
• Black quarter turn latches as required. 15” removable floor stands.
• Removable center post.
• Mechanical interlock
• No door stiffeners required.
• Black zinc die cast coinproof/padlocking handle on main door with black zinc die cast padlocking handle on slave door.
• Provisions for light kit.
•  Hole plugs provided to seal holes in bottom of enclosure.
