Class L Spider II Temporary Power Boxes, 60A, 3 Phase, 120/208VAC

Save 21%
Original Price $4,419.64
Current Price $3,499.00
Save 21%
Original Price $4,419.64
Current Price $3,499.00
SKU HUB-SCTL0M2
Categories:

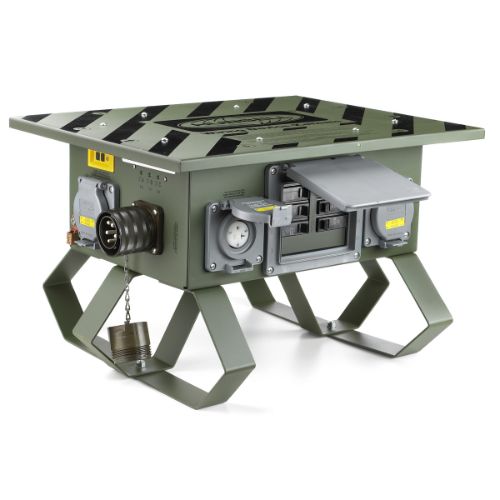

These Class L Spider box units are rated at 60 amps, 120/208 VAC, Three phase. With this distribution box power is immediately available at the 60 amp outlet when the source is energized on all the modules.

APPLICATION
  • With 3R rating the enclosure is rainproof and suitable for use in damp and wet locations, as well as dry ones.
  • These power distribution box can be used to power electricals, tools and equipment on sites both indoor and outdoor, including concerts, events, carnivals, festivals or construction and manufacturing sites.

FEATURE
  • 6 20 Amp Receptacle outlets individually protected by circuit breakers
  • 4 of the outlets have GFCI circuit modules to protect from shock hazards and ground faults
  • This range of power distribution boxes has a steel metallic enclosure rated Nema Type 3R as intended for heavy duty usage with abuse resistant legs
  • The enclosure, rated as is at 3R is also rainproof, suitable for use in damp and wet conditions as well as dry conditions.
  • The breakers are fitted with gasketed cover lids

MATERIALS
  • Enclosure: Galvanized steel with yellow polyester paint finish
  • Cover: Galvanized steel with yellow polyester paint finish
  • Gasket: closed cell neoprene foam
  • Legs: HR steel with yellow polyester paint finish
  • Screws: C1021 Steel chromate/zinc plated

DIMENSIONS
  • Height: 14,7 inches
  • Length: 22,71
  • Width: 18,71
AVAILABLE OPTIONS:

  • Class L Spider II Temporary Power Boxes, Twist Lock, (6) GFI 20A 125V Receptacles, (1) Class L 60A 3PH 120/208V AC Inlet and Outlet, Green
  • Class L Spider II Temporary Power Boxes, Straight Blade, (6) GFI 20A 125V Receptacles, (1) Class L 60A 3PH 120/208V AC Inlet and Outlet, Green
