Circuit Lock Fused Disconnect Switches

$985.19
$985.19
SKU HUB-FDS30
Categories:

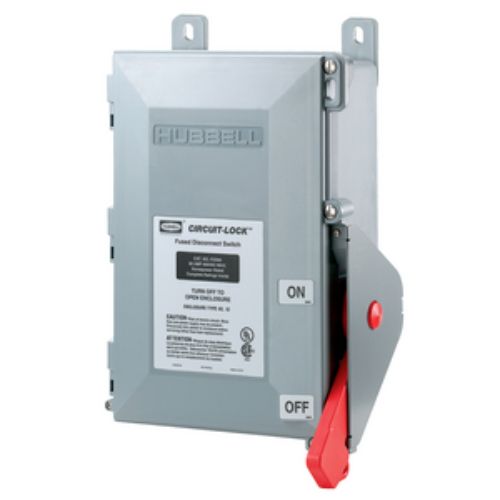

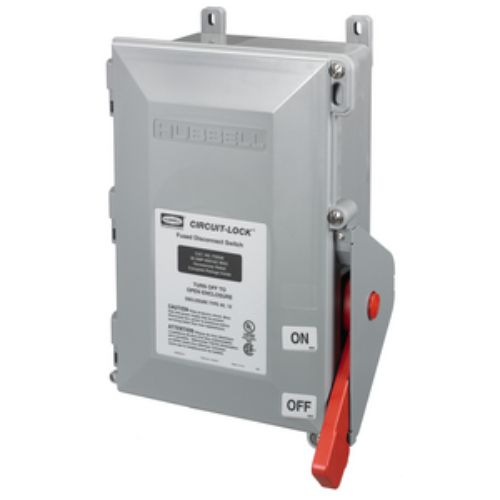

Get these circuit lock fused disconnect switches from Hubbell, made in the USA.
Application:
  • These Fused disconnect switch suited for industrial grade applications with typical harsh environments. Can withstand exposure to water, chemicals oils and wash downs of industrial use.
  • Hubbell's fusible switches are well suited for automation & process control in a range of heavy duty operations especially those requiring back up generators, compactors, loading doc equipment and large HVAC units.

High Quality Performance Fuses and Switches:
  • The electrical operation has dialectric voltage that withstands 3000V AC minimum
  • This fused switch can operate continuously, without impact between a maximum of 75°C and minimum -40°C.
  • Fused disconnect switches accepts Class J fuses
  • Three molded-in conduit fittings are found of the body of the enclosure, 2 on top and 1 at the back.
  • These fused products are also UL certified ensuring maximum safety and security. Rated and Certified gray

Enclosure securely holds fused switch:
  • This fusible switch enclosure has ingress protection 66 and Nema Type 4X 12 meaning the enclosure of this fused disconnect switch is watertight, dust-tight and Non-metallic.
  • The mechanical nature of the fused disconnect switch is impact resistant, UV resistant.
  • The door panel of this fused switched enclosure can be removed for ease of wiring during installation and or maintenance checks.
  • The door can also be locked to prevent unauthorized access and is also designed with another safety feature: if the switch is ON, the door cannot be opened.
  • This fused disconnect features a lockable highly visible red switch handle to comply with the OSHA Lockout/Tagout standards
  • The enclosure of the fused disconnect features 4 adjustable mounting feet. The feet adjust to any 1 of 3 positions for suitable mounting.
  • The Product Materials of this fusible switch are made from a composite of materials, listed: Enclosure material: PBT Frame & Ground Plate: Galvanized Steel Enclosure Gasket: Neoprene Enclosure screws: Stainless Steel Conduit Hub: Zinc, 1 in. Available in 30 Ampere or 60 Ampere.
 Need some more info? Just email us at support@atielectrical.com.
$985.19
$985.19
