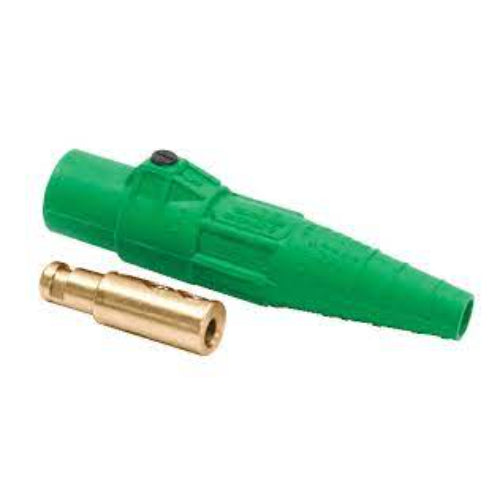

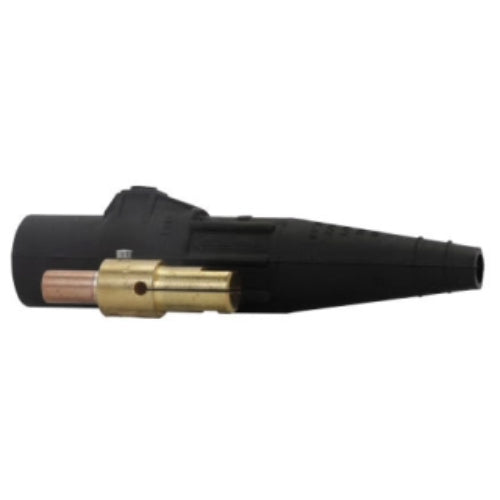

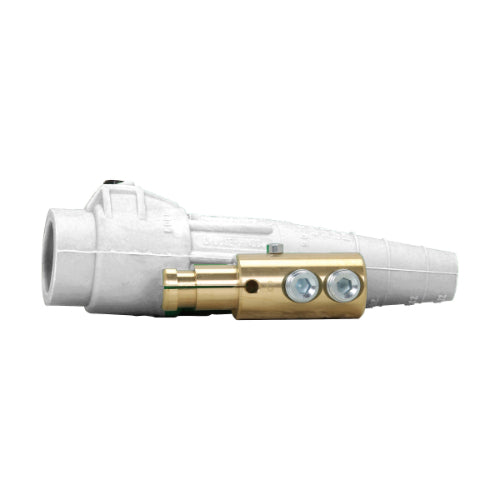

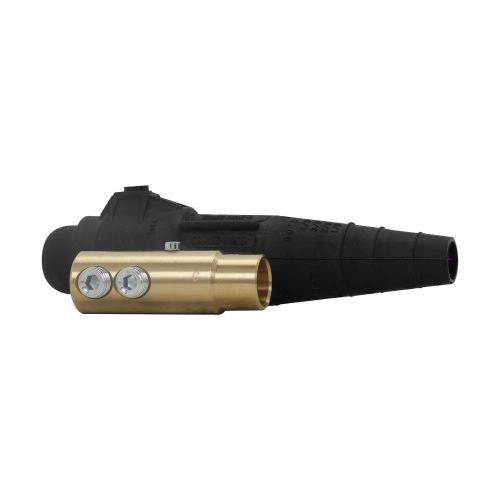

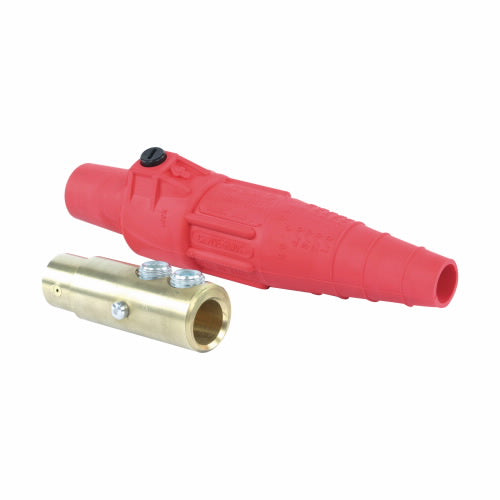

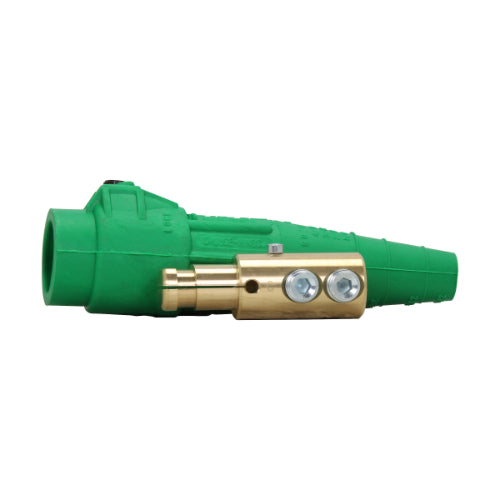

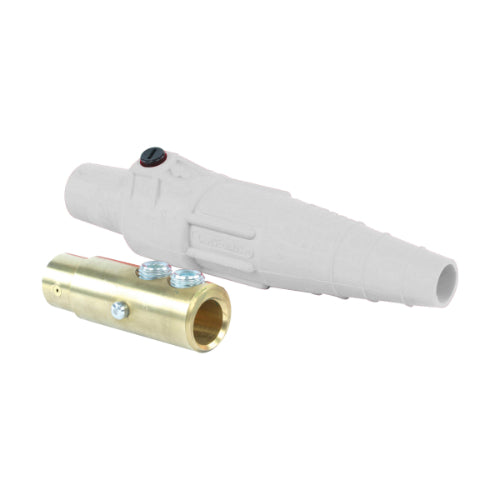

Cam-Lok Standard Series E-Z1018 Double Set Screw Plugs, Cable Size 2/0 - 4/0

$25.03
$25.03
SKU ECH-E-Z1018-8362
Categories:
Staying connected is critical for any business. That why having the right tools is so important. This set of Cam-Lok J series connectors are the right tools. Designed for use in heavy duty demanding environments, these connectors will provide power for portable applications.
Application
These plugs are ideal for use at:
  • Fares/events
  • Concerts and film sets
  • Entertainment applications
  • Motors and generators

Features and Benefits
  • This connectors series is insulated
  • The plugs are shatter crack resistant and water tight
  • They are heat, weather, ozone, oil and abrasion resistant
  • Elastomeric, non-vulcanized, double set screw connection
  • The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
  • The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
  • The locked contacts will withstand a pulling force of 1,000lbs
  • Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
  • The connectors are self-compensating for wear
  • Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
  • Non-metallic retaining screw provides safe, strong and reliable contact retention
  • The retaining screw snaps back into place to prevent loss
  • The cam-lock plugs and connectors are easily assembled with standard tools
  • These J-series non-vulcanized plugs have a cable size of 350-500 MCM
  • E-Z align drive pin increases torque and longitudinal strength 300%
  • Double set screw termination for added strength
  • Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
  • Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure.
  • Plugs feature a high-strength, molded-in-place locking ring to capture and secure the insulator to the contact.

Product Specifications
  • Cable Size: 2/0 – 4/0
  • Voltage Rating: 600V AC/DC
  • Amperage Rating: Up to 400A continuous
  • Temperature Ratings: -40°C to 105°C
  • Listed to UL1691, Listed to CSA C22.2 No.1691-12, CSA certified to C22.2, No. 182.3 LR13963
  • NEMA 3R

Available Options

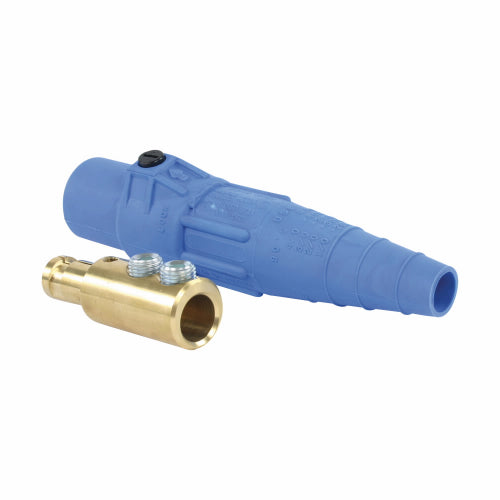

  • MALE or FEMALE plugs in Black, , Green, White, Blue
