Cam Lock Non-Fused Disconnect Switch Single Throw

Save 19%
Original Price $10,741.55
Current Price $8,727.51
Save 19%
Original Price $10,741.55
Current Price $8,727.51
SKU PWA-CCS-06SNXL-3
Categories:

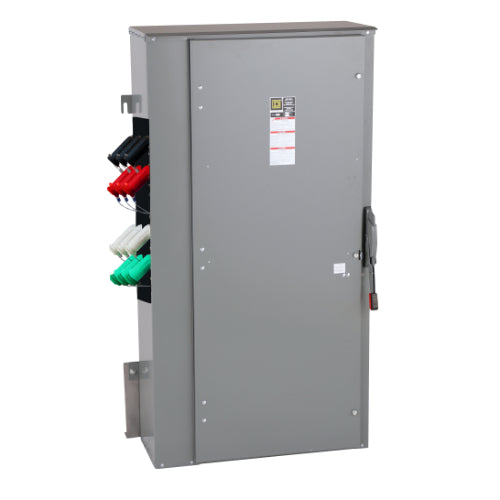

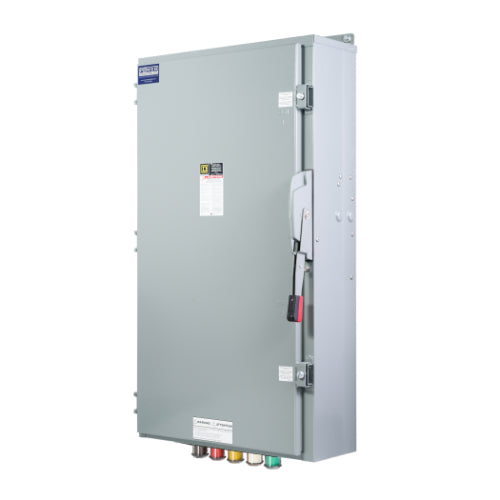

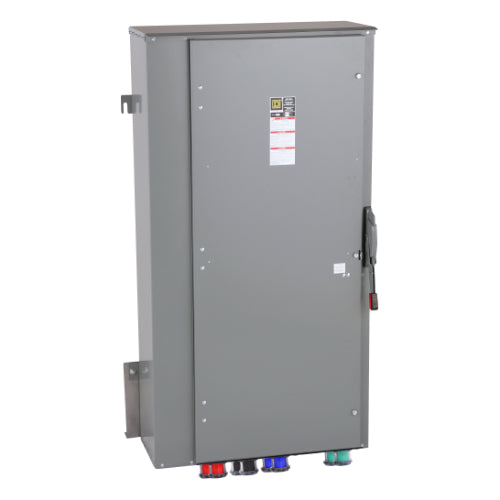

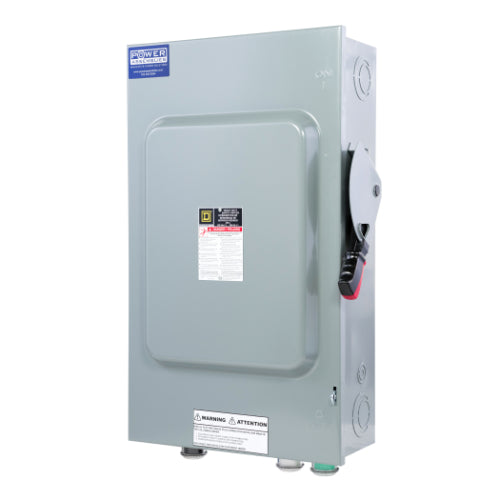

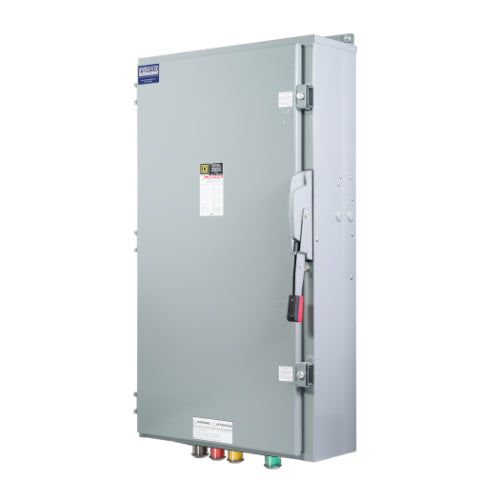

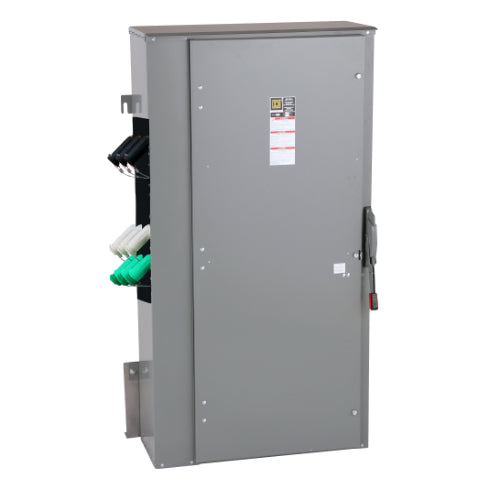

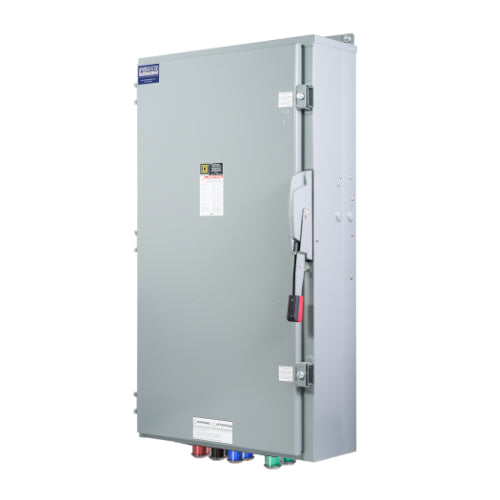

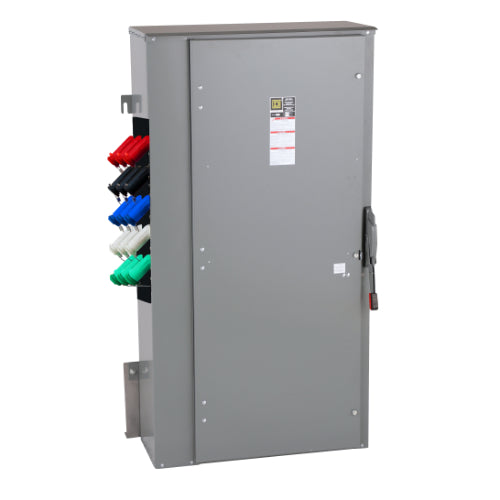

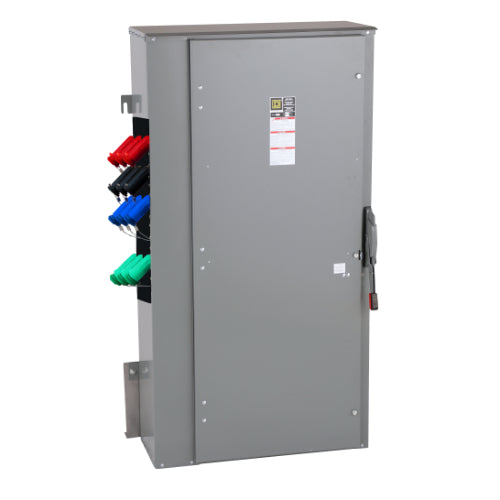

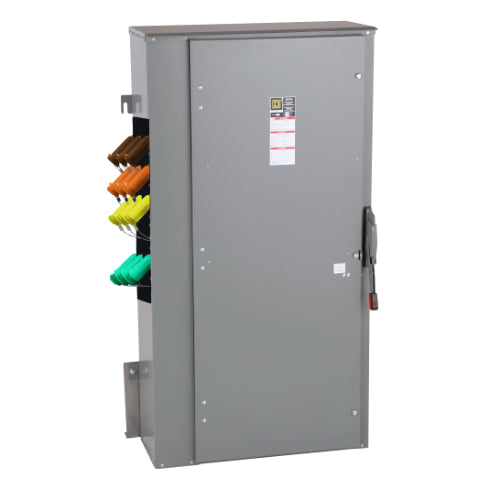

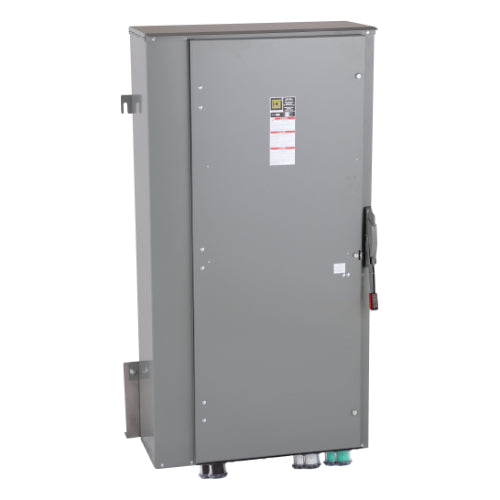

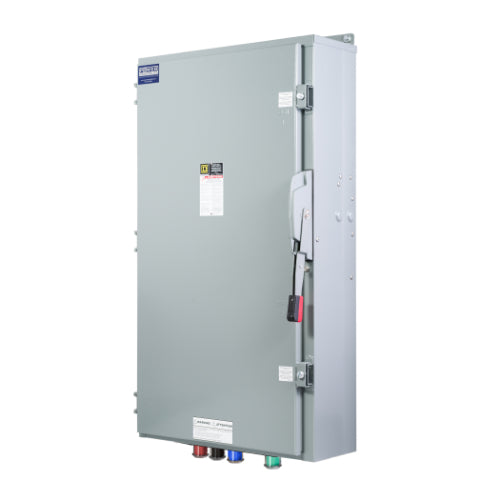

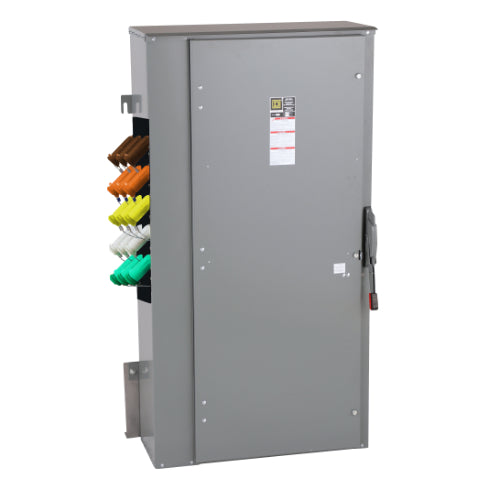

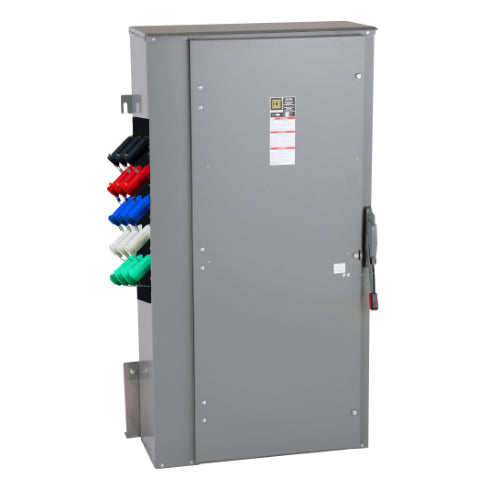

The Cam Lock Connection Switch is a standard NEMA 3R Single-Throw Non-Fused Disconnect Safety-Switch equipped with quick-connect series 16 cam-lock inputs - (Male Cams to Source: meaning power is incoming) or outputs - (Female Cams to Load: meaning the power is outgoing). All camlock receptacles are color coded to match your voltage requirements and easily identify the correct insertion point for each phase. All receptacles feature a snapping cover to protect from outside debris and particles. Camlock caps and lanyards are available upon request.

The Cam Lock Connection Switch offers a cost-effective solution for a quick and safe method of power interruption available with or without overcurrent protection (Upon request). This Cam Lock Connection Switch is non-fused and comes in a Single Throw configuration. Power Assemblies Cam Lock Connection Switches are available in 100A – 1000A configurations and multiple voltage options. For larger switches that exceed 1000A, please call us at (800) 597-9311 or email our portable power group at ppg@atielectrical.com

Application:
These Cam Lock Connection Switches are safety switch compartments with factory-installed receptacles that are used to connect and disconnect temporary and portable power systems or equipment. The receptacle and plug interlock to form a secure and safe connection, this is critical in industrial and manufacturing circumstances where unexpected disconnects can be costly or unsafe.

Assembly:
The Cam Lock Connection Switch comes equipped with industry-standard Series 16 CAM Connectors. The Cam Connectors are UL/CSA Listed single-pole and they are color coded to phase-match appropriate voltages. The Cams come standard with clear snapback covers or caps and lanyards upon request. There is one output terminal for simple on/off applications.

Durability:
The Cam Lock Connection Switch can stand up to heavy commercial, industrial, and institutional applications. This enclosure is constructed of galvanized steel. The enclosure is NEMA 3R rated to protect against water entry from rain, sleet, and snow. It is also available in NEMA 12 or 4X upon request for a stainless-steel option that is corrosion-resistant.

Guarantee:
All Camlock Connection Switches supplied by ATI are covered by a manufacturer’s warranty for a period of one (1) year from the date of shipment from the manufacturer.

Key Features:
  • Male Cam Lock Input (Source/Line)
  • Female Cam Lock Output (Load)
  • Switched or Non-Switched Neutrals
  • Quick Connections
  • Wall Mount
  • Non-Fused
  • Single Throw
  • 100A – 1000A Configurations
  • Multiple Voltage Options
Common Applications:
  • Temporary Power
  • Portable Power
  • Generator Connections


Please Note: Power Assemblies products are built to order. Please check the lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
