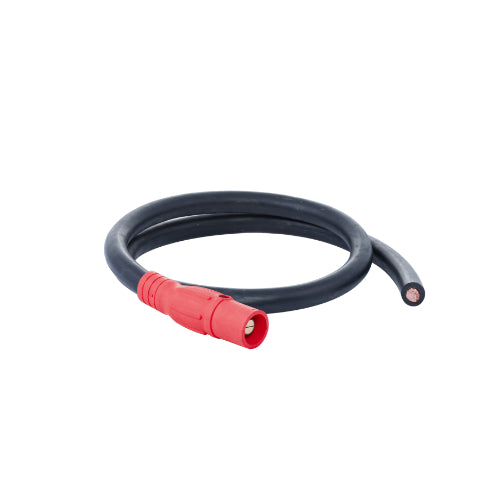

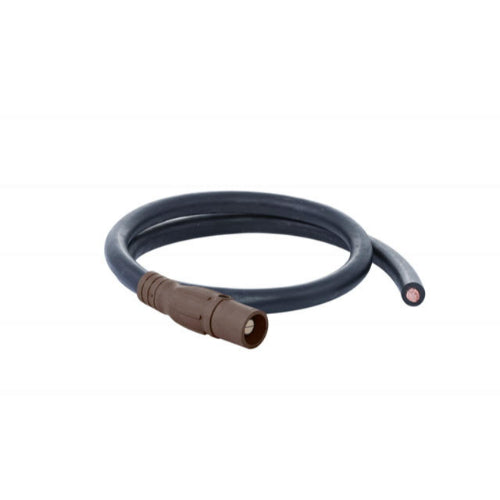

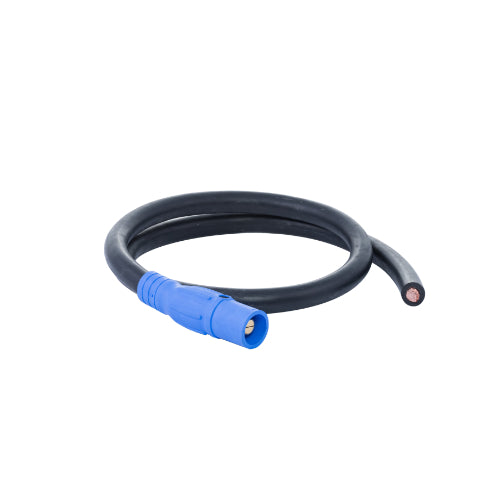

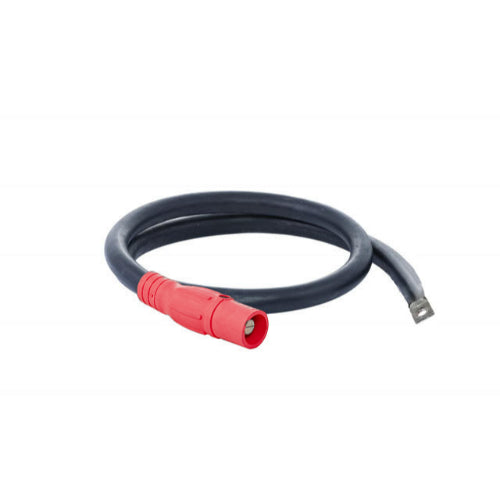

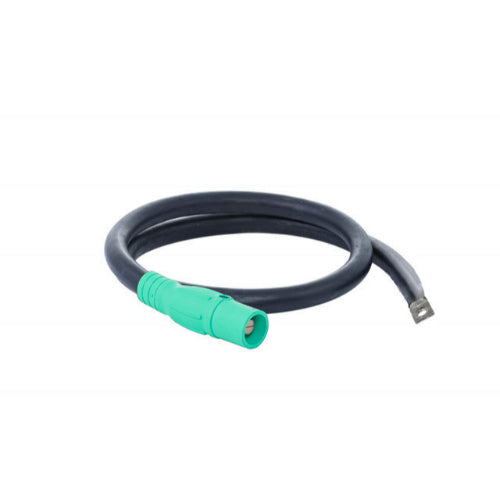

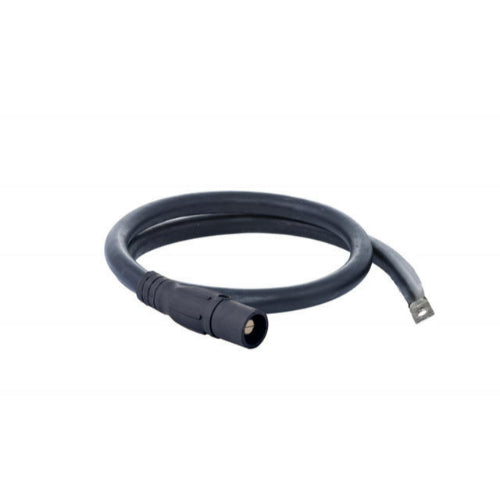

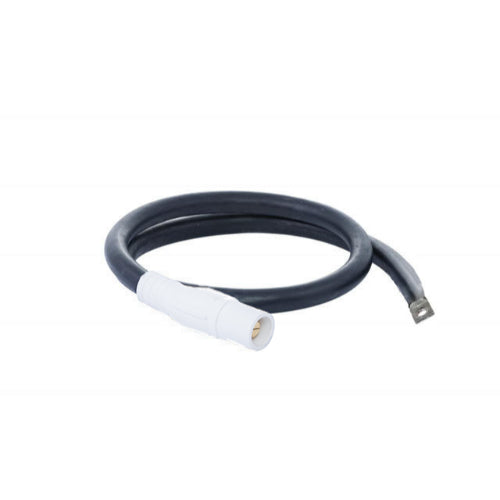

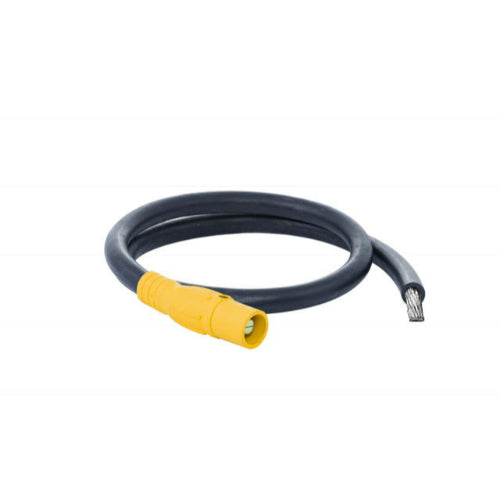

400A Type W Male Pigtails with Series 16 Camlocks - 6ft

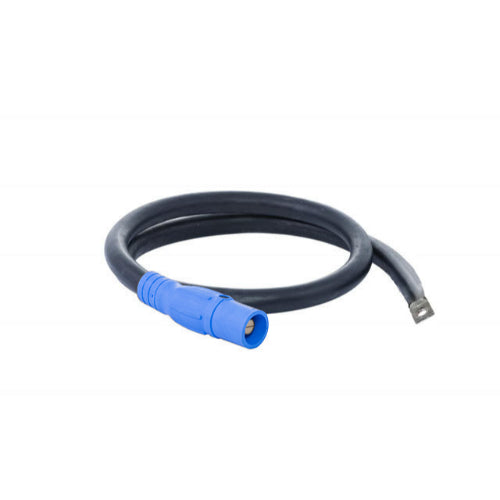

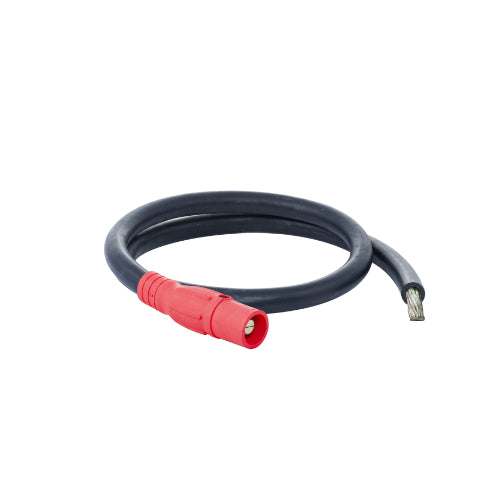

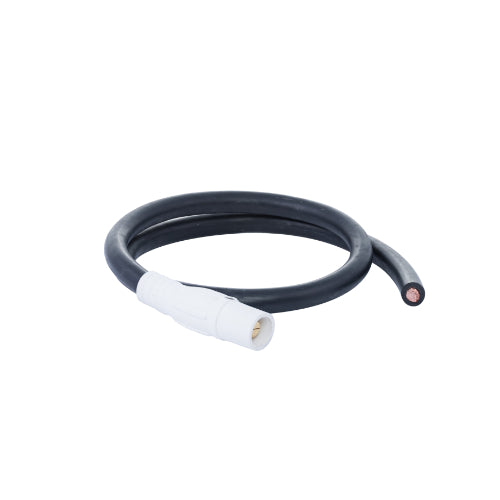

Power Assemblies’ Type W Pigtails are constructed of 4/0 AWG, fully annealed 2107 Stranded Bare Copper, and are rated for a maximum of 400 amps. Type W Pigtails could not be more user-friendly, as they’re equipped with a Series 16 Camlock that incorporates a twist-and-lock component for reliable connectivity on one end of the cable, whereas the opposite end of the cable can be prepared blunt, tinned, or crimped with a single hole long barrel lug to make your terminations as simple as possible. Double hole lugs are available upon request as well.
The available customizations of our 400A pigtails make them a staple product that should always be kept on hand for temporary power connections. While connected, these pigtails are rated NEMA 3R which makes them ideal for both indoor and outdoor hookups. Our pigtail cables are often used to connect a generator to a distribution panel or even tap into long runs of cable assemblies.
Resistant to sunlight, water, oil, acids, heat, flames, moisture, alkalies, and chemicals, these pigtail cables were designed to withstand even the most severe environmental conditions. All components meet or exceed flame test requirements of MSHA, ICEA, and UL.
Click here to watch our test video!
They’re suitable for use in industrial, heavy-duty commercial, and residential power applications that require temporary, emergency, and/or portable power. Custom solutions are available - Email our portable power experts at PPG@ATIelectrical.com or call us directly at (800)-597-9311.
- Manufactured in the USA
- NEMA 3R while connected
- RoHS Approved components, UL Rated
- Hard-use Chlorinated Polyethylene (CPE) rubber single-pass thermoset jacket
- CPE provides greater abrasion and heat resistance over thermoplastic PPE/TPE jackets
- Premium Grade Insulated EPDM (Class M Rubber)
- Cable Reinforcement - Polyester braid between the insulation and the jacket for optimal mechanical strength.
- End 1: Series 16 Camlocks
- End 2: Lugged, Tinned, or Blunt
- Cable Voltage: 2000V
- Amperage: 400A
- AWG: 4/0
- Conductors: 1 CDR
- Temperature Rating: -40°C - 90°C
Available Lengths: 3’, 4’, 5’, 6’, 10’, & custom lengths available upon request
Available Colors: Black, Red, Blue, Brown, Orange, Yellow, White, Green
Please Note: Power Assemblies products are built to order. Please check lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
