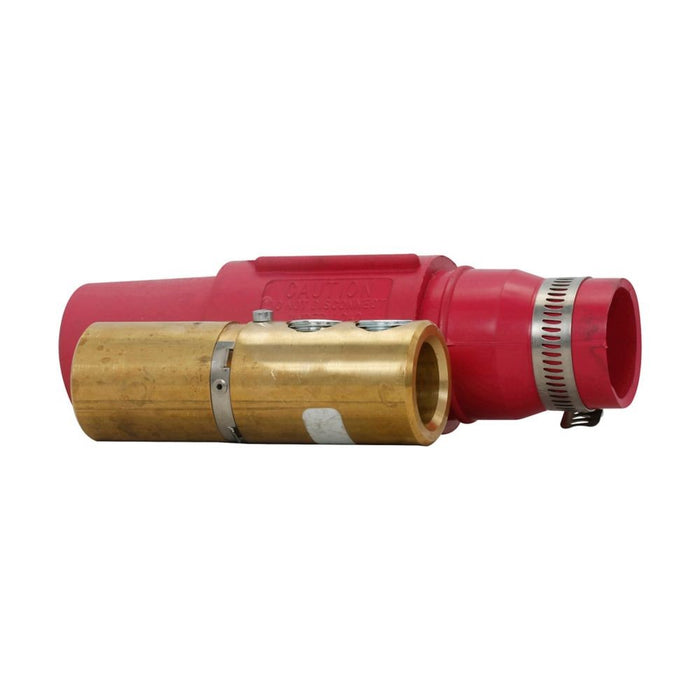

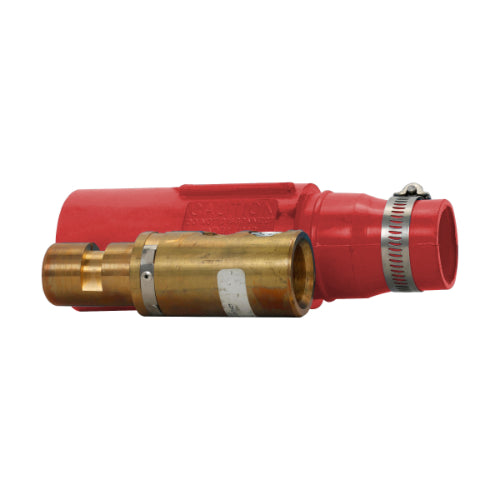

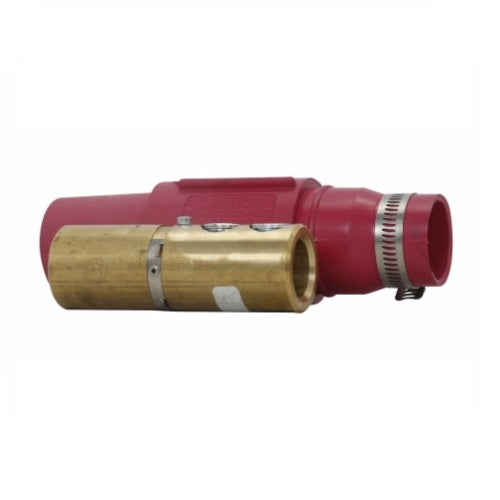

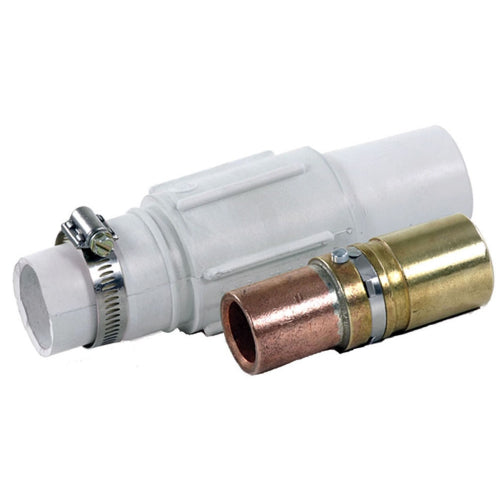

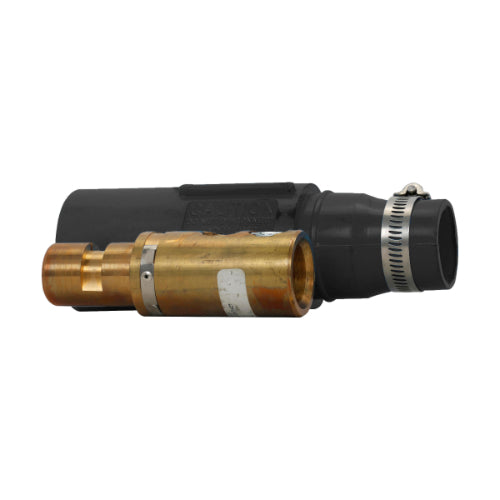

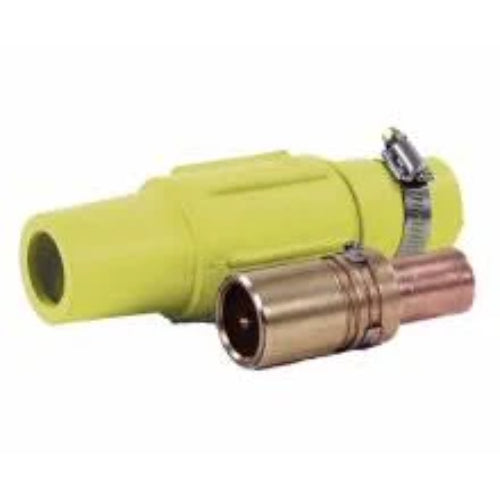

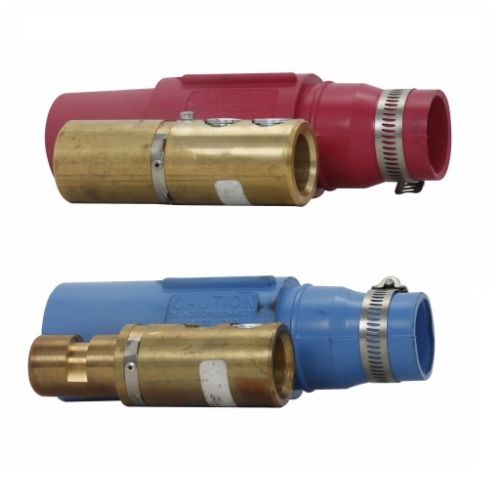

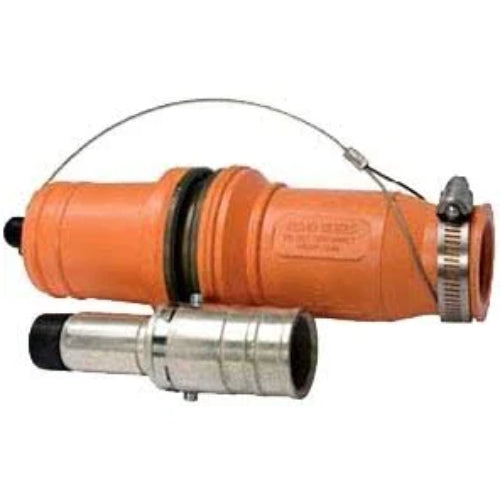

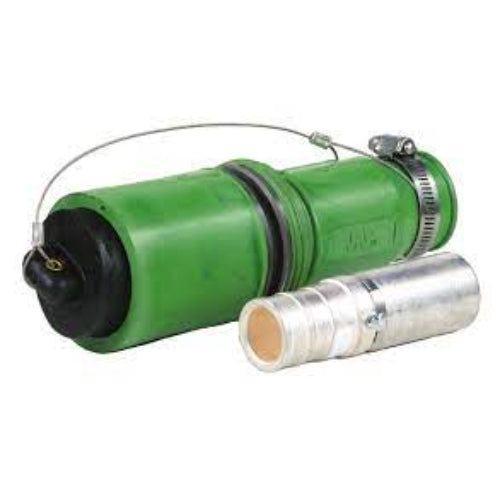

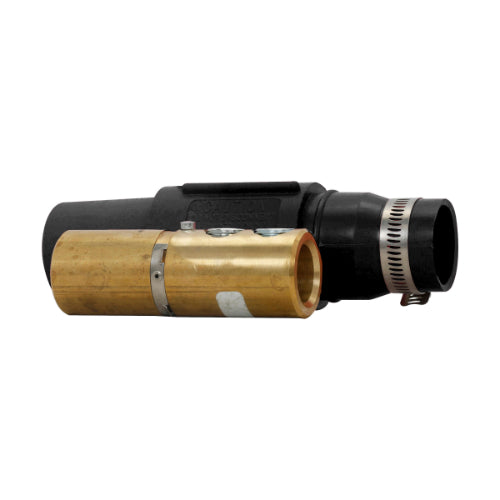

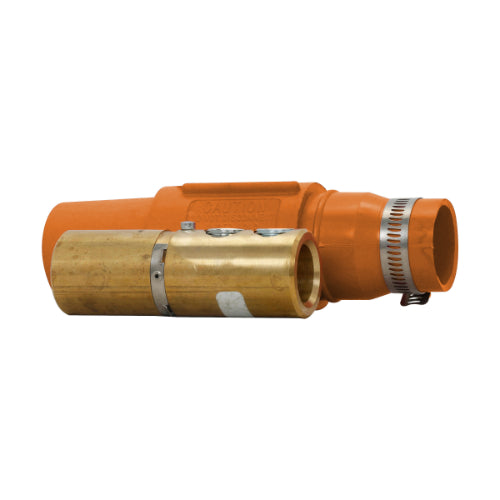

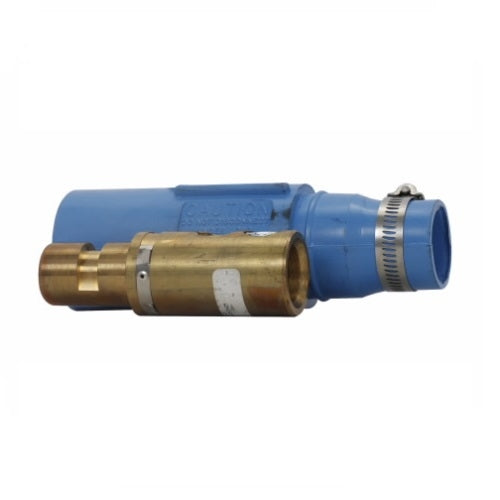

350-500 MCM Double Set Screw Non-vulcanized Plugs

$233.44
$233.44
SKU ECH-E1017-379
Categories:
This series of Cam-Lok™ connectors J series are safer and stronger that traditional connector and wiring options. This series of cam-loks are made with integrated watertight insulators and feature a strain relief system.

Benefits and Features
  • The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
  • The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
  • The locked contacts will withstand a pulling force of 1,000lbs
  • Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
  • The connectors are self-compensating for wear
  • Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
  • Non-metallic retaining screw provides safe, strong and reliable contact retention
  • The retaining screw snaps back into place to prevent loss
  • The cam-lock plugs and connectors are easily assembled with standard tools
  • These J-series non-vulcanized plugs have a cable size of 350-500 MCM
  • E-Z align drive pin increases torque and longitudinal strength 300%
  • Double set screw termination for added strength

Product Specification
  • Cable Size: 350-500 MCM
  • Voltage Rating: 600 volts
  • Amperage: Up to 545 Amps continuous
  • NEMA 3R
  • Material: Rubber Insulator
  • Temperature Rating: operating ambient: -40°C to 105°C
  • NEMA 3R
  • Certifications: Listed to UL1691, Listed to CSA C22.2 No.1691-12, CSA certified to C22.2, No. 182.3 LR13963

Available Options
  • Color options: black, red, green, white, blue, brown, orange, yellow
$233.44
