18 Series Cam-Type Detachable Plugs, #2 – 2/0 AWG, 300 Amp Max

$38.03
$38.03
SKU LEV-18D22-UE
Categories:
Application
The 18 Series Ball Nose plugs, receptacles and connectors are well suited for use in the broadcast industry in Canada, as well as the welding industry in the United States. They feature solid brass contacts and high performance TPV insulator so they are ideal for both indoor and outdoor use. So they are also used in oil and gas, mining operations, power distribution, construction sites, and other temporary power applications.

Benefits and Features
  • Positive locking connection maintains integrity even when high vibration during use
  • They are inter-mate able and compatible with other competitive brand cam type products (can be retrofitted)
  • Designed for easy assembly and disassembly, without special tools.
  • NEMA 3R rated for outdoor use when mated
  • Color-coding provides fast and easy phase identification
  • Single or double set screw termination
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating

Electrical Specifications
  • Cable Range: 2-2/0 AWG
  • Connection Type: Double Set Screw or Single Set Screw
  • Max. Amperage: 300 Amp
  • Max. Voltage: 600 Volt
  • Style Name: Detachable
  • Standards and Certifications: UL/CSA, UL/CSA UL Listed: File E-13399; 1691, 508 – 35k A / 600V
  • Short Circuit Current Rating

Available Options

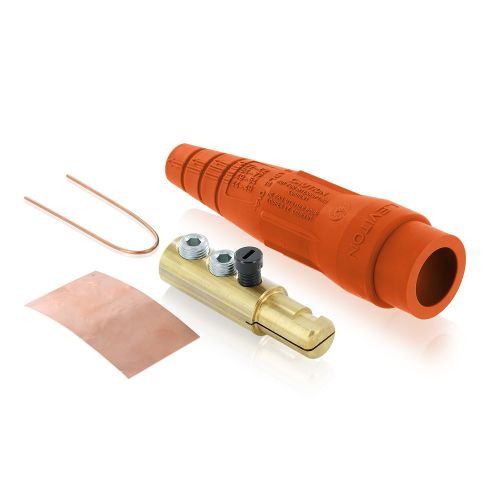

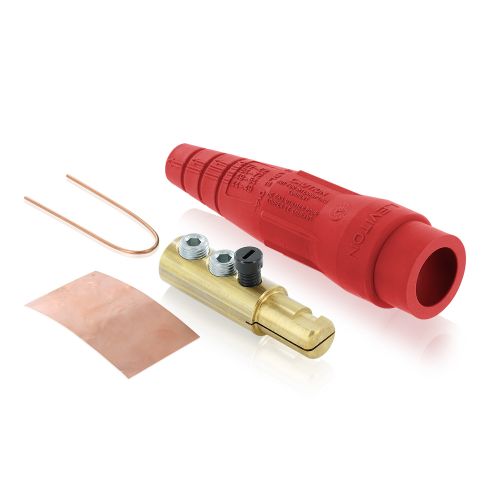

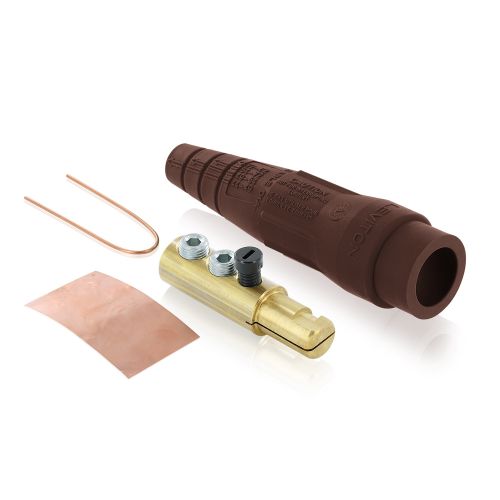

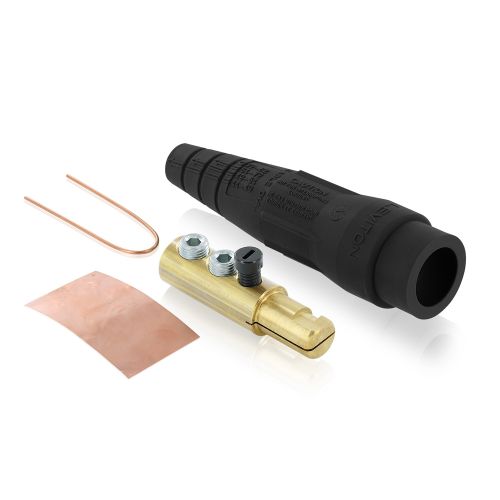

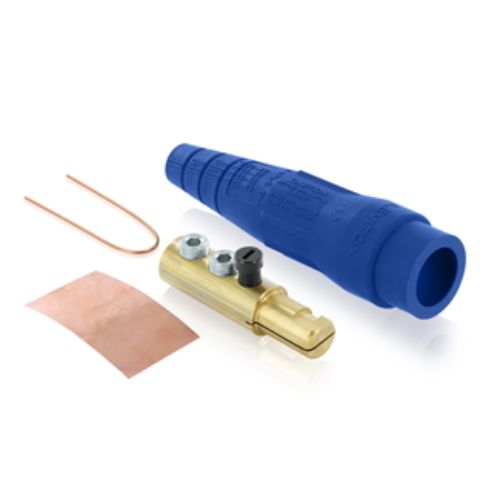

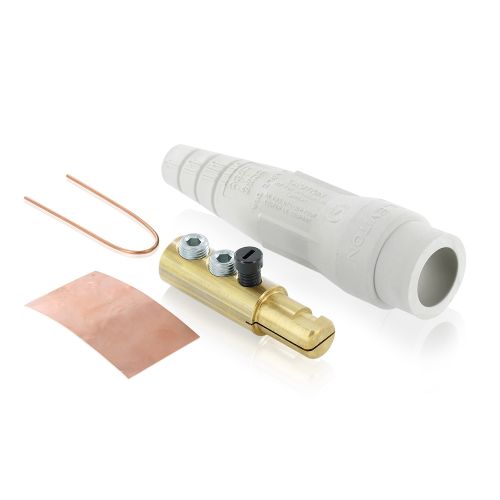

  • 18D22 range – Male, double set screw termination

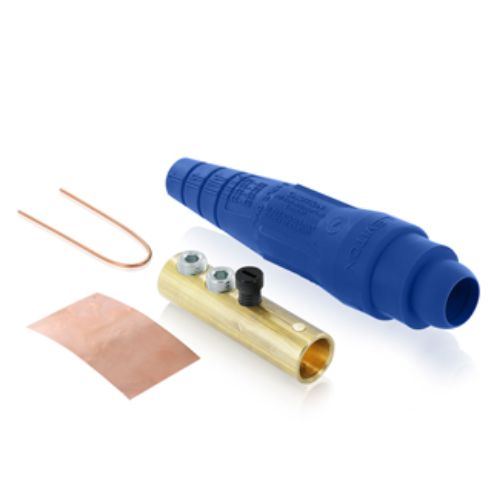

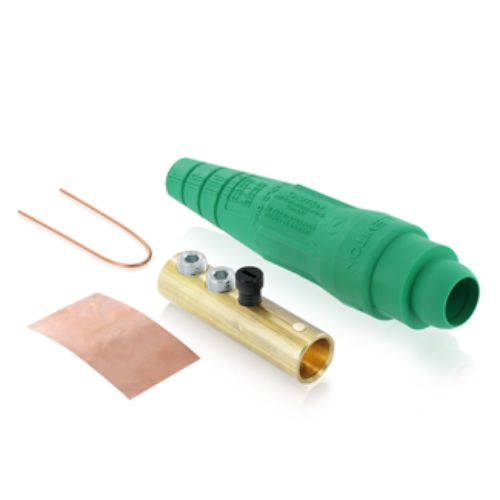

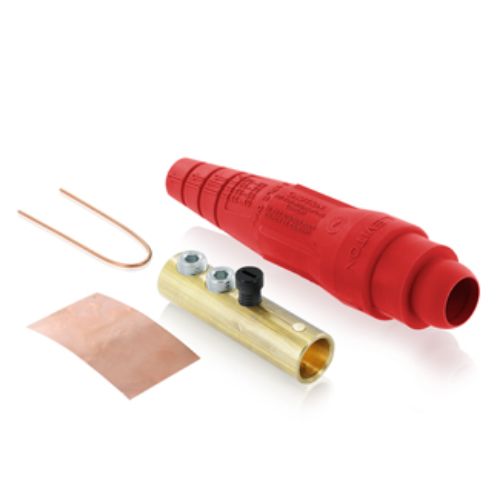

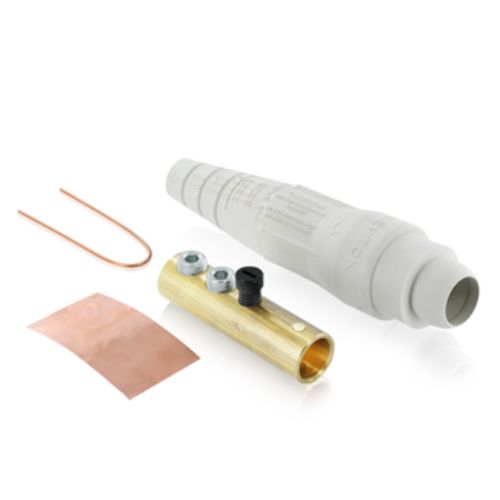

  • 18D31 range – Female, double set screw termination

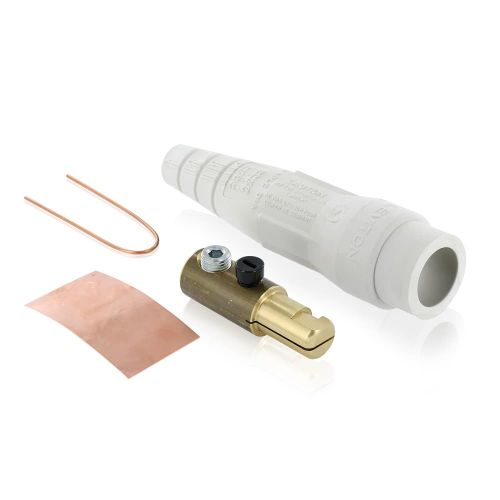

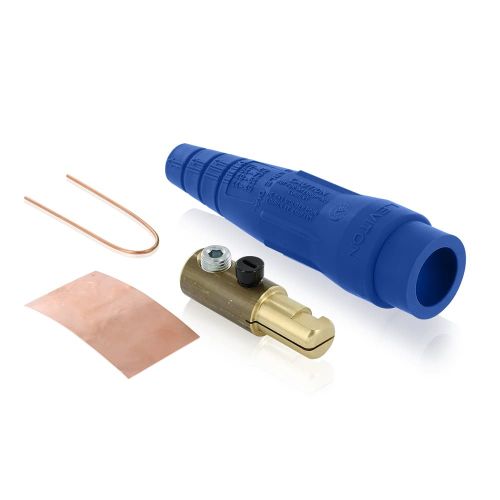

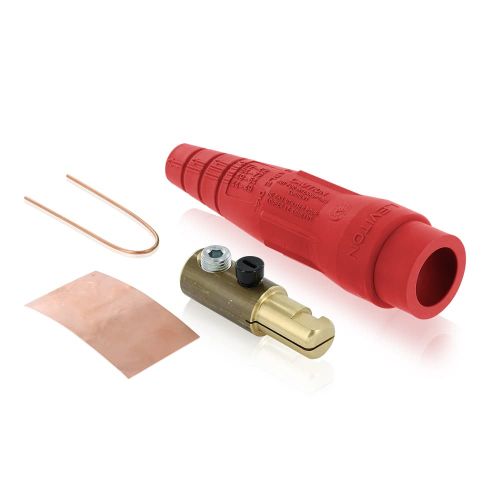

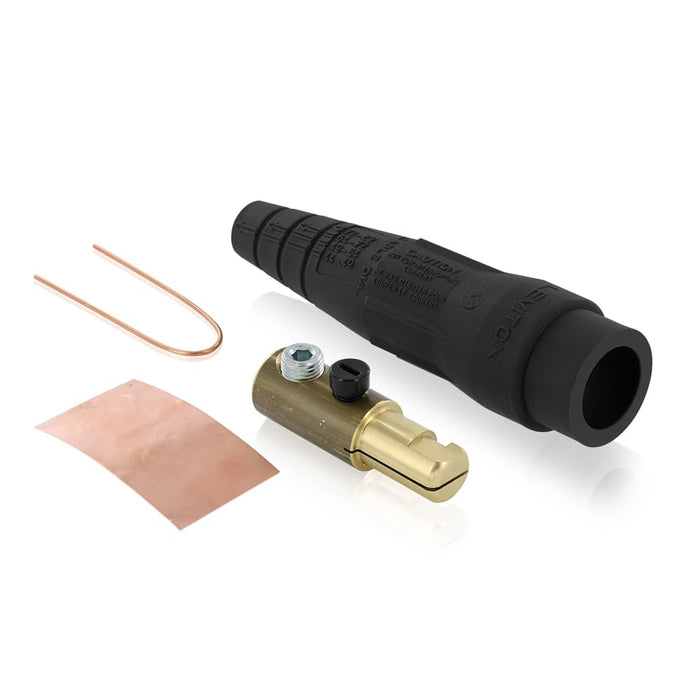

  • 18D21 range – Male, SSS

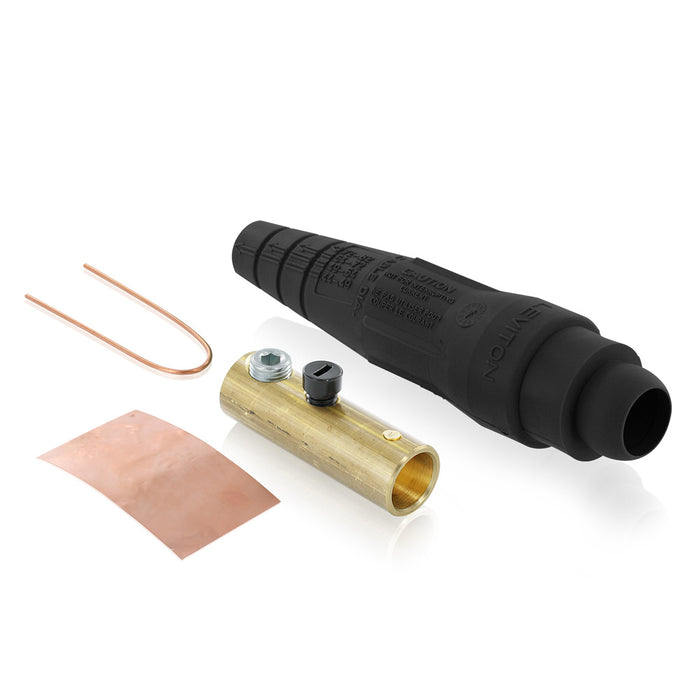

  • 18D29 – Female, single set screw
