17 Series Cam-Type Detachable Plug, Double Set Screw Termination, 350-500MCM, 690 Amp Max
* All pictures shown are for illustration purposes only.
Actual product may vary based on spec selection.

17 Series Cam-Type Detachable Plug, Double Set Screw Termination, 350-500MCM, 690 Amp Max

by Leviton Manufacturing Company
$161.74
$161.74
SKU LEV-17D22-B
Categories:
Inline, Wire Connectors,
Application
The 17 Series Taper Nose connectors withstand gruelling, heavy-duty industrial use. Applications include generator test stations, water purification plants, electro-chemical machining equipment and other general industrial uses.

Benefits and Features
  • They are insulated for water tightness and safety.
  • They allow you to quickly connect or disconnect equipment
  • They are inter-mate able and compatible with other competitive brand cam type products (can be retrofitted)
  • They are durable – shatter and crack proof because of the santoprene TPV they are made off
  • Self-compensating for wear and use – the male contact has a slit to provide for spring action during longer use
  • Vibration proof connection with high conductivity - will not vibrate or loosen, ensuring maximum efficiency
  • UL listed

Electrical Specifications
  • Max. Amperage: 690 Amp
  • Max. Voltage: 600 Volt
  • Cable Range: 350-500MCM AWG
  • Connection Type: Double Set Screw

Material Specifications
  • Contact Material: Brass Sleeve
  • Material: Santoprene TPV
  • Strain Relief: Copper Wire

Available Options

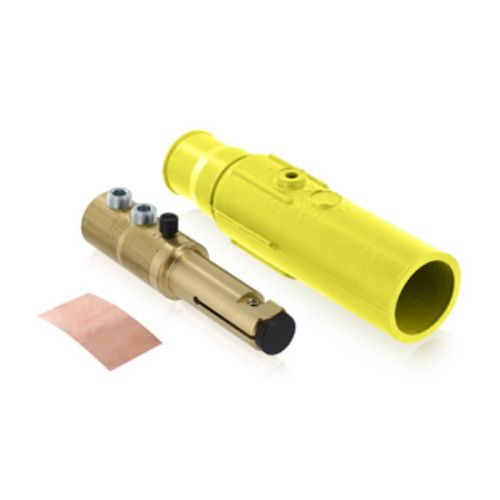

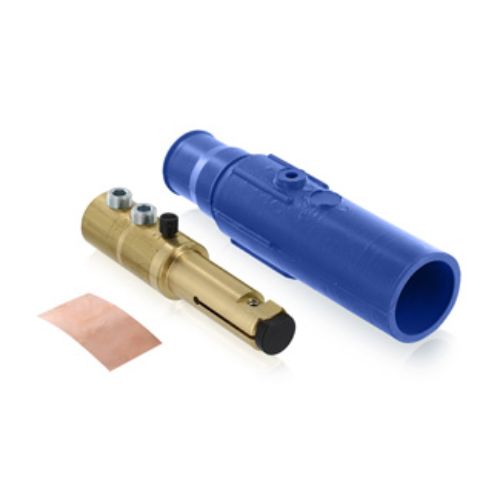

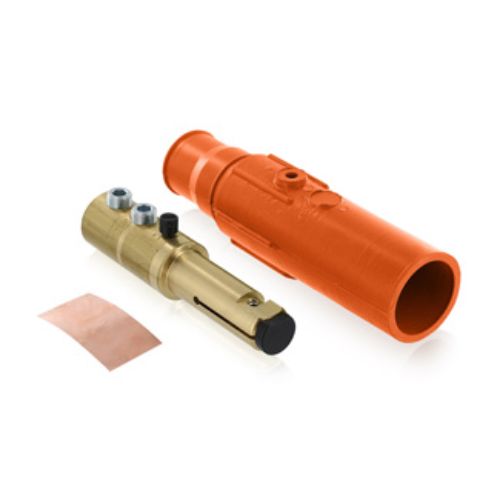

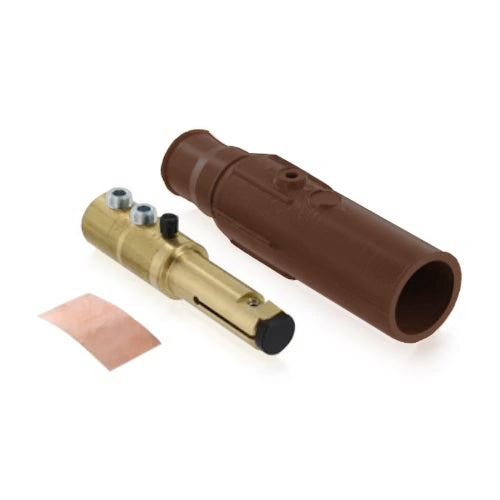

  • 17D22 - Male, double set screw available in color coded range

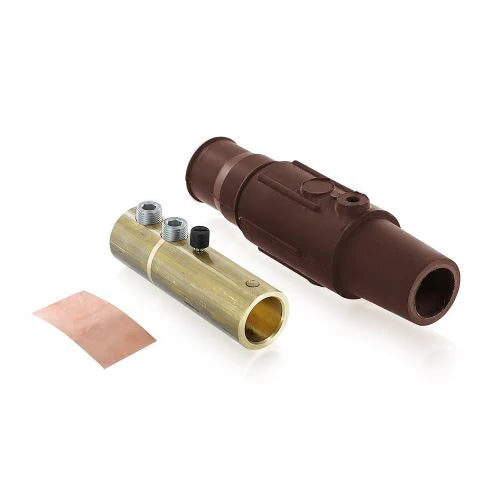

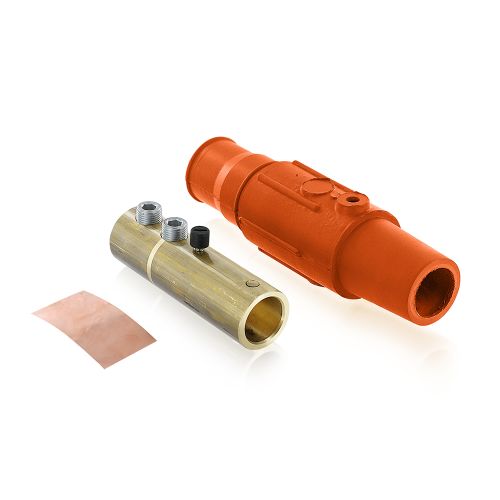

  • 17D24 - Female, double set screw available in color coded range
$161.74
$161.74
