1 Conductor Aluminum Mechanical Lugs

by Ilsco
$2.39
$2.39
SKU ILS-TA-2/0
Categories:

ATI provides Ilsco’s Dual Rated Aluminum Mechanical Lugs which offer the flexibility of several approved wire stranding options (DLO, Type W, and other flexible stranded conductors). Ilsco’s Mechanical lugs are UL Listed 453G, RoHS compliant, and DE-OX Inhibitors are recommended for all aluminum terminations. Additionally, versitile applications are sure to cover your termination needs. Should you require Project Based Pricing or Ilsco products not listed on our site, please call us at: 800-597-9311

Features:

  • High strength 6061-T6 aluminum alloy
  • Great for use with either copper or aluminum conductors
  • Electro-Tin plated
  • CSA Certified
  • Rated to 90° C
  • UL 486A/B Listed, UL File E6207



MPN Conductor Range Bolt/Stud Size Length Width Height Hex Size

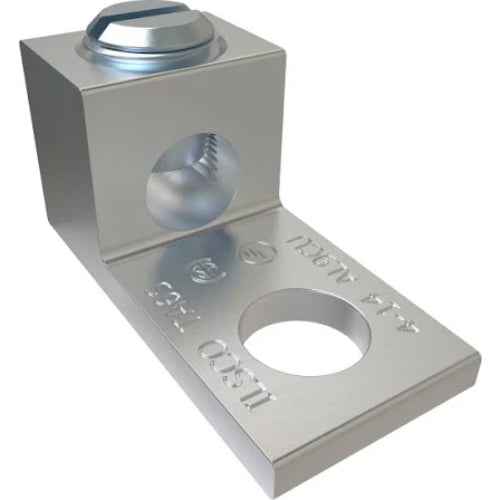

TA-6-S 4-14 AWG 1/4 1.0625 0.5000 0.5000 S
TA-2 2-14 AWG or (2) 10-14 CU or (2) 10-12 AL 1/4 1.1563 0.5000 0.5500 S
TA-0 1/0-14 AWG or (2) 4-12 AWG 1/4 1.4688 0.6250 0.7940 S

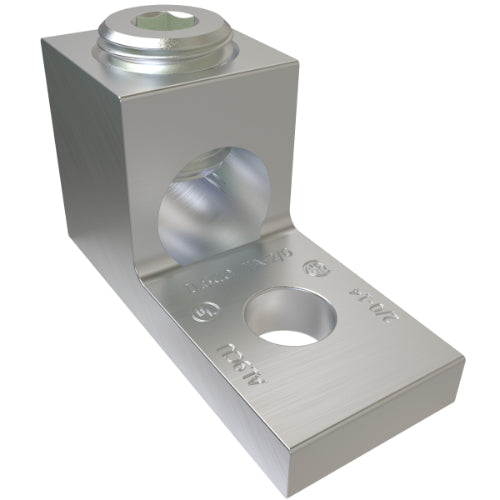

TA-2/0 2/0-14 AWG 1/4 1.4688 0.6250 0.7940 3/16
TA-250 250 kcmil-6 AWG 5/16 1.9840 0.9900 1.1220 5/16

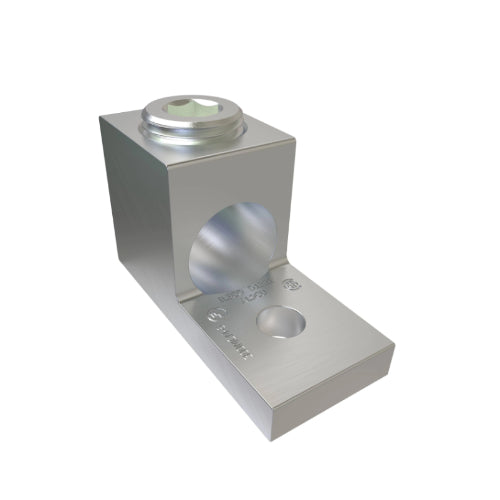

TA-300 300 kcmil-6 AWG 1/4 1.9840 0.8530 1.1220 5/16
TA-350 350 kcmil-6 AWG 3/8 2.2500 1.1250 1.2500 3/8
TA-500 500 kcmil-4 AWG 3/8 2.8125 1.5000 1.5620 1/2
TA-600 600 kcmil-2 AWG 3/8 3.1875 1.5000 1.5630 1/2
TA-800 800 kcmil-300 kcmil 5/8 3.3750 1.7500 1.9380 1/2

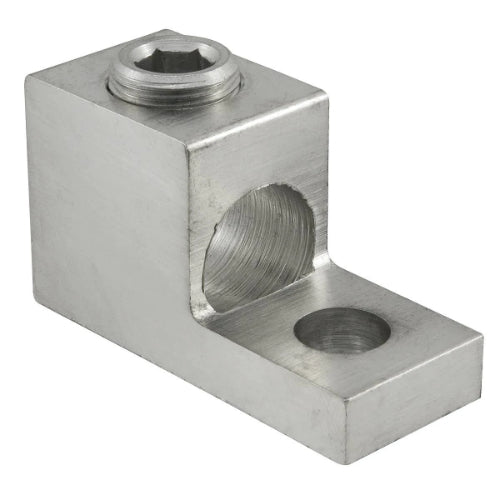

TA-800-S 800 kcmil-3/0 AWG 5/8 3.2500 1.3125 1.8120 1/2

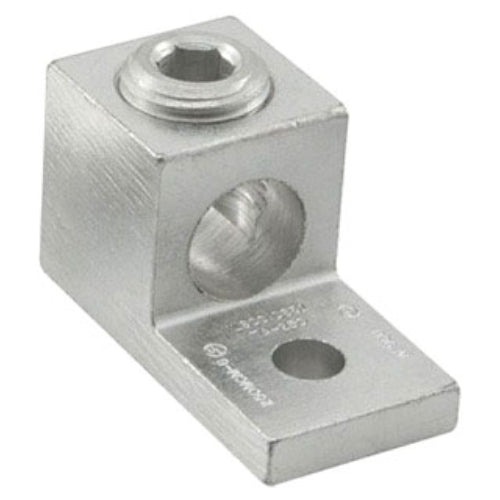

TA-1000 1000 kcmil-350 kcmil 5/8 3.3750 1.7500 1.9380 9/16
TA-1000-2N 1000 kcmil-350 kcmil 1/2 5.9700 1.6250 1.8130 (2)3/8



Manufacturer’s Cut Sheet
