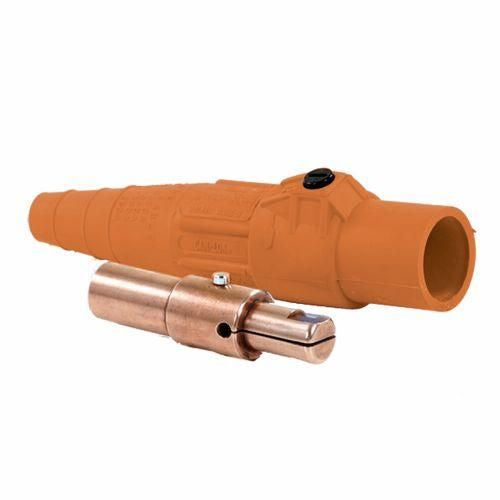

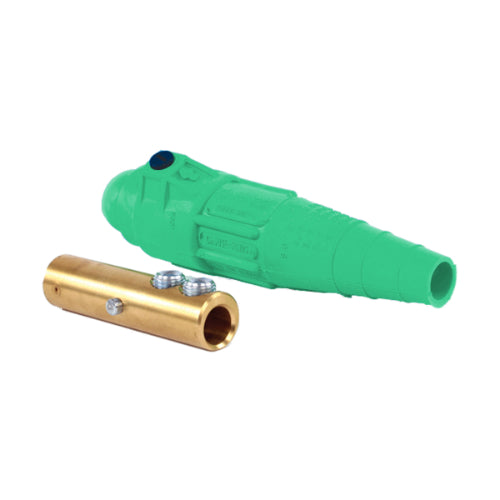

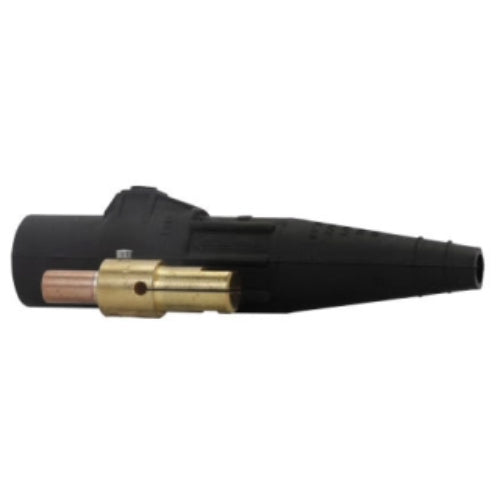

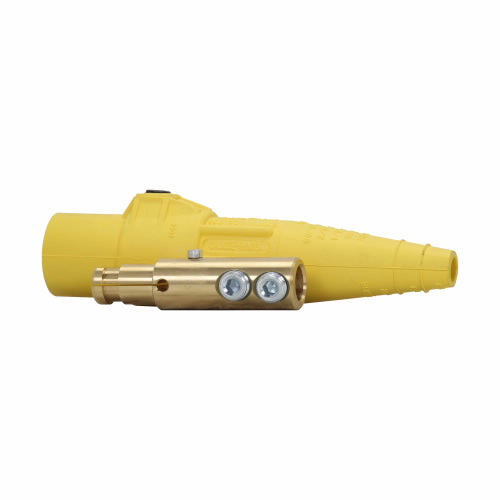

Cam-Lok Standard Series E-Z1018 Double Set Screw Plugs, Cable Size #2 - 2/0
$25.03
$25.03
SKU ECH-E-Z1018-8375
Staying connected is critical for any business. That why having the right tools is so important. This set of Cam-Lok J series connectors are the right tools. Designed for use in heavy duty demanding environments, these connectors will provide power for portable applications.
Applications
Features & Benefits
Product Specifications
Available Options

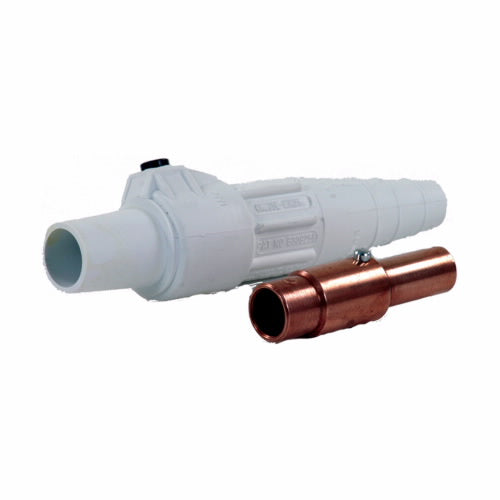

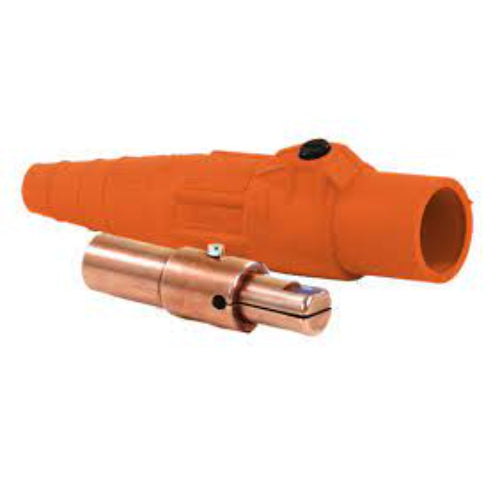

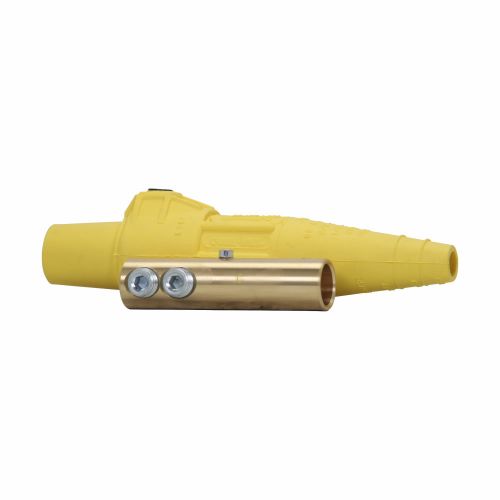

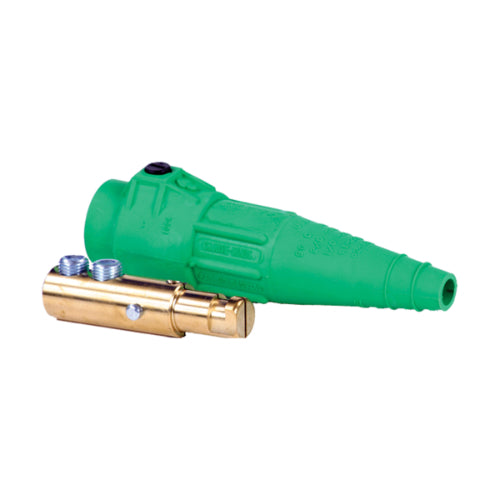

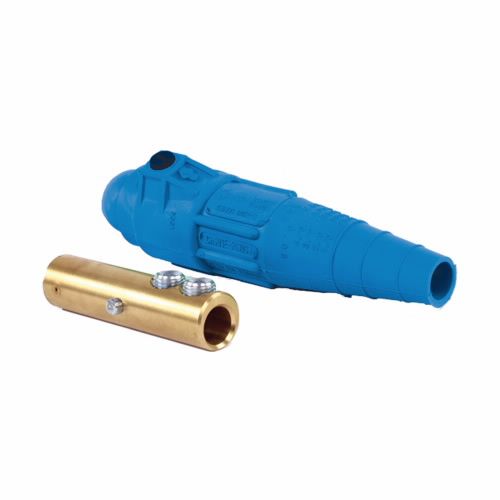

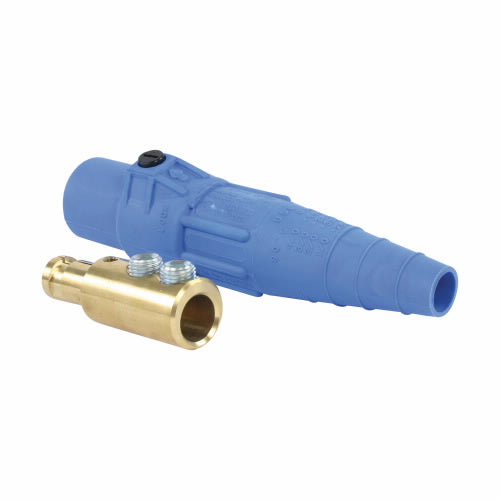

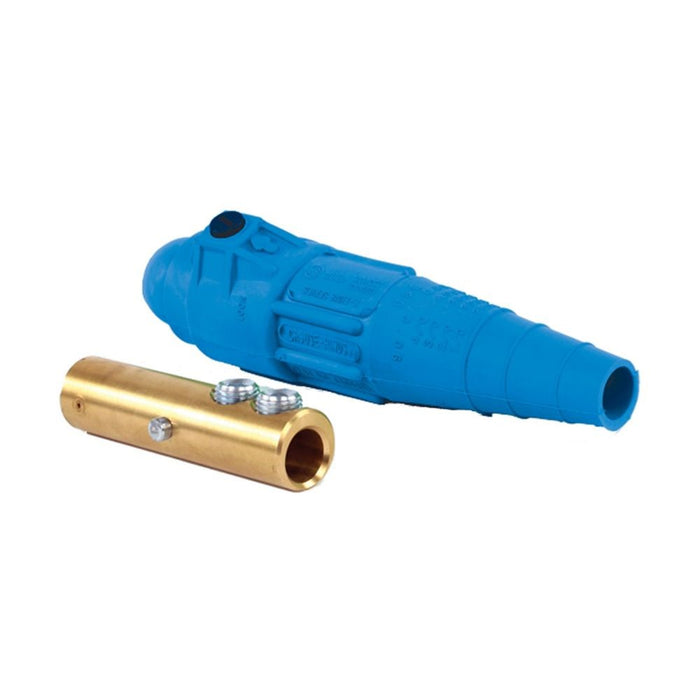

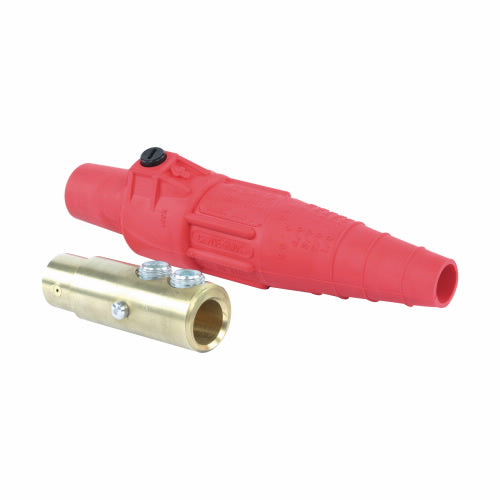

Male or Female plugs in Black, Red, Green, White, Blue, Brown, Orange, Yellow
Applications
- These plugs are ideal for use at
- Fares/events
- Concerts and film sets
- Entertainment applications
- Motors and generators
Features & Benefits
- This connectors series is insulated
- The plugs are shatter crack resistant and water tight
- They are heat, weather, ozone, oil and abrasion resistant
- Elastomeric, non-vulcanized, double set screw connection
- The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
- The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
- The locked contacts will withstand a pulling force of 1,000lbs
- Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
- The connectors are self-compensating for wear
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Non-metallic retaining screw provides safe, strong and reliable contact retention
- The retaining screw snaps back into place to prevent loss
- The cam-lock plugs and connectors are easily assembled with standard tools
- These J-series non-vulcanized plugs have a cable size of 350-500 MCM
- E-Z align drive pin increases torque and longitudinal strength 300%
- Double set screw termination for added strength
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure.
- Plugs feature a high-strength, molded-in-place locking ring to capture and secure the insulator to the contact.
Product Specifications
- Cable Size: #2 AWG- 2/0
- Voltage Rating: 600V AC/DC
- Amperage Rating: Up to 300A continuous
- Temperature Ratings: -40°C to 105°C
- NEMA 3R
Available Options
Male or Female plugs in Black, Red, Green, White, Blue, Brown, Orange, Yellow
