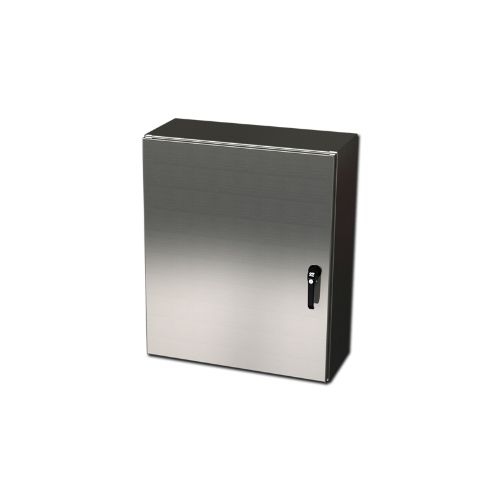

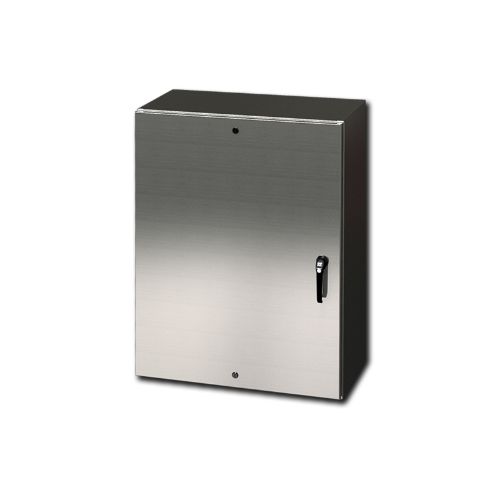

Enviroline ® Series Single Door Enclosures with 3 point Hardware

Store and Secure electrical components, controls, instruments, switches with these 0,075” carbon & stainless steel enclosures. The enclosures are NEMA Rated and UL listed, designed to protect your electrical components from dirt and moisture. These boxes are suitable for outdoor use (drip shield recommended) in industrial or heavy duty commercial operations. You can use these enclosures to protect electronic controls and instruments in:

• Oil refineries Chemical and petrochemical plants
• Onshore plants
• Fuel depots
• Ships and shipbuilding
• Corrosion resistance
• Carbon & Stainless Steel material
• ANSI-61
• Powder coated gray paint makes the enclosure resistant to corrosion from environmental elements and UV exposure
• NEMA Rated and UL for safety and protection

The enclosures are watertight, protecting against ingress of water and moisture and industrial use. They are also resistant to the entrance of dust, dirt, oils. Mechanical 0.075 In. carbon/stainless steel. Seams continuously welded and ground smooth. Flange trough collar around all sides of door opening. Collar studs provided for mounting optional sub-panels. Mounting holes in back of enclosure for wall mounting. Mounting hardware, sealing washer and hole plugs included. Concealed hinges. Removable and inter-changeable doors. Black zinc die cast keylocking/padlocking handle. 3-point latching mechanism. Black quarter turn latches as required. Removable print pocket. Pour in place oil & water resistant gasket. Ground stud on door & body.
