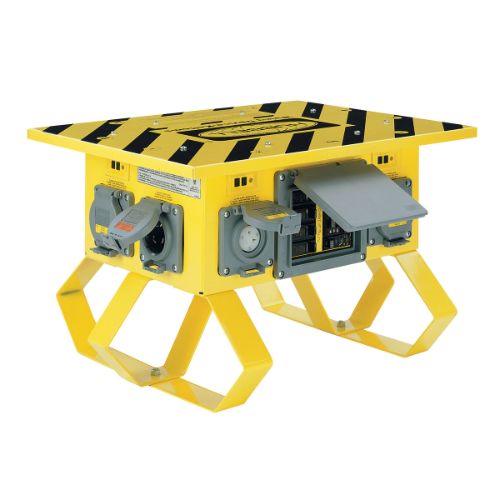

Spider II Spider Boxes, 50A, Single Phase, 120/240VAC

Outdoor events require reliable power sourcing that is safe given the electrical hazards that can typically exist outdoors. These spider boxes provide temporary power for outdoor events and sites that is reliable and safe. They are rated at 50 Amps with 120/240 VAC.

APPLICATION
With 3R rating the enclosure is rainproof and suitable for use in damp and wet locations, as well as dry ones. This single phase power distribution box can be used to power electricals, tools and equipment on sites both indoor and outdoor, including concerts, events, carnivals, festivals or construction and manufacturing sites.

FEATURE:

• These spider boxes have the following Feature to distribute power effectively, efficiently and safely
• Individual GFCI modules on all 20Amp inlet/receptacles circuit breaker to minimize shock hazard
• The enclosure of the distribution box is rated NEMA type 3R meaning it is metallic, heavy duty and fitted with abuse resistant legs
• The termination circuit breakers have gasketed lift covers
• The boxes are a high visibility yellow color, making them easily identifiable. This is important on busy work sites like construction and manufacturing with lots of other hazards.

MATERIALS:

• Enclosure: Galvanized steel with yellow polyester paint finish
• Cover: Galvanized steel with yellow polyester paint finish
• gasket: closed cell neoprene foam • Legs: HR steel with yellow polyester paint finish
• Screws: C1021 Steel chromate/zinc plated

DIMENSIONS:

• Height: 14,7 inches
• Length: 22,71
• Width: 18,71

AVAILABLE OPTIONS:

• Spider II Spider Boxes,Twist Lock, (7) GFI 20A 125V Receptacles, (1) 50A 125/250V Inlet and Outlet, Yellow
• Spider II Spider Boxes,Straight Blade, (7) GFI 20A 125V Receptacles, (1) 50A 125/250V Inlet and Outlet, Yellow

Using our drop down options, select between a spider box with twist lock inlets/outlet or a straight blade inlets/outlets.
