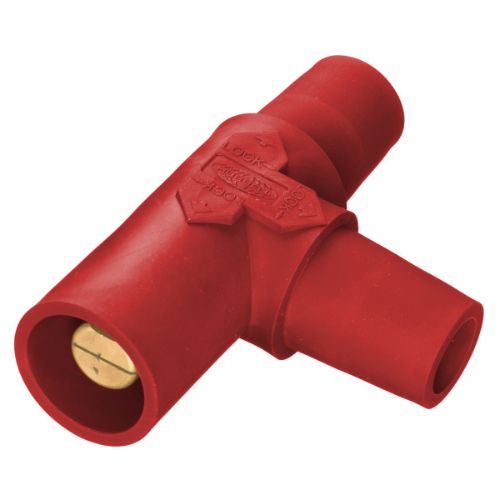

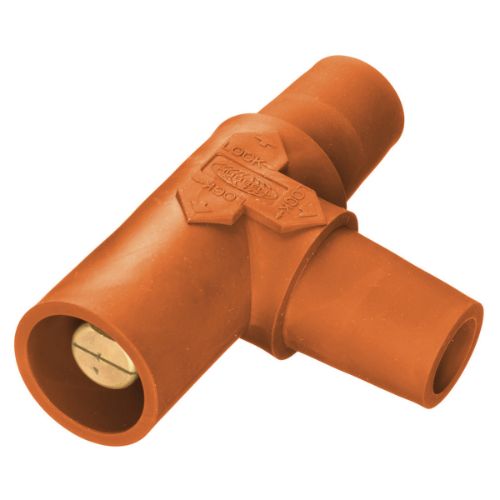

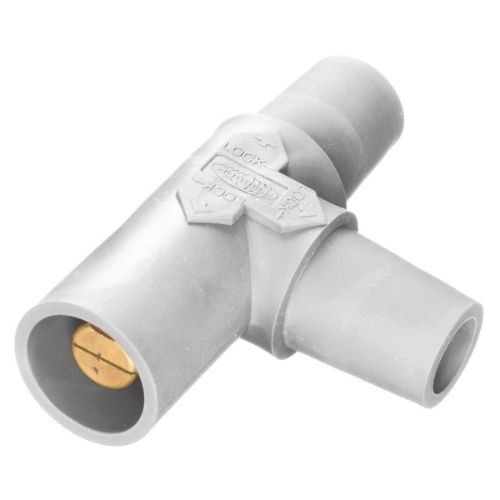

Series 16 Tapping Tee (Female-Female-Male)

$64.82
$64.82
SKU HUB-HBLTBK
Categories:
These Tapping Tee Connectors are multiway adaptors designed to allow connection to more than one power outlet. The contacts are connector as follows 1 Female contact IN: 1 Female contact and 1 Male contact out These connector adaptors are useful because they allow for versatility in power connection, giving your more options to suit your needs. They are made of Thermoplastic Elastomer (TPE) crack resistant in extreme heat or cold, making suitable for the often harsh environments of industries, especially entertainment which these connecting adapters are designed for.
Available in Black, White, Green, Red, Blue, Brown, Orange, Yellow.
Other features include:
  • The TPE housing is a NEMA rated enclosure preventing dust, dirt and moisture from penetrating
  • The housing is rounded design which prevents snagging on other structures or equipment
  • Turn and Lock symbol aids to indicate that devices are properly connected – devices lock 180° to prevent accidental disconnect
  • Large Raised Alignment Arrow aids in the mating of devices
  • Non-conductive retaining screws lock the contacts into place – prevent movement during usage.
  • These 16 Series Tee plugs, divide connection
  • Electrical - Amperage Rating - 400A Maximum
  • Electrical - Voltage Ratings - 600V AC Maximum
  • 250V DC Maximum
  • Number Of Pins: 1) In and 2) Out- Female-Female-Male
  • Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
  • Brass contacts for high conductivity
$64.82
$64.82
