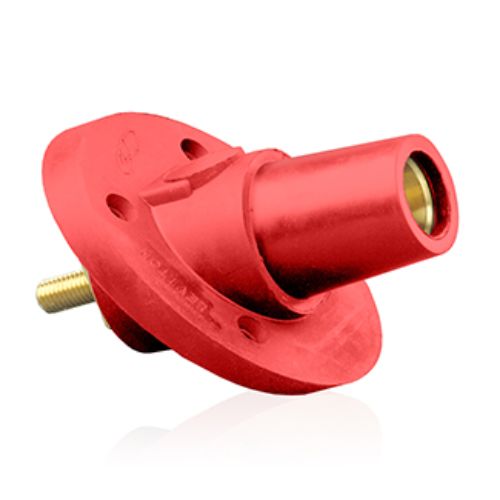

Leviton 17 Series Panel Mount CAM Locks, Threaded Stud Termination, 250-750MCM, 690 Amp Max
* All pictures shown are for illustration purposes only.
Actual product may vary based on spec selection.

Leviton 17 Series Panel Mount CAM Locks, Threaded Stud Termination, 250-750MCM, 690 Amp Max

by Leviton Manufacturing Company
$372.71
$372.71
SKU LEV-17R23-SO
Categories:
Panel Mount, Wire Connectors,
Application
The 17 Series Panel Mount Cam Locks can withstand gruelling, heavy-duty industrial use. Applications include generator test stations, water purification plants, electro-chemical machining equipment and other general industrial uses.

Benefits and Features
  • They are insulated for water tightness and safety.
  • They allow you to quickly connect or disconnect equipment
  • They are inter-mate able and compatible with other competitive brand cam type products (can be retrofitted)
  • They are durable – shatter and crack proof because of the santoprene TPV they are made off
  • Self-compensating for wear and use – the male contact has a slit to provide for spring action during longer use
  • Vibration proof connection with high conductivity - will not vibrate or loosen, ensuring maximum efficiency
  • UL listed

Electrical Specifications
  • Max. Amperage: 690 Amp
  • Max. Voltage: 600 Volt
  • Cable Range: 250-750MCM AWG
  • Connection Type: Threaded Stud

Material Specifications
  • Contact Material: Brass
  • Sleeve Material: Neoprene

Available Options

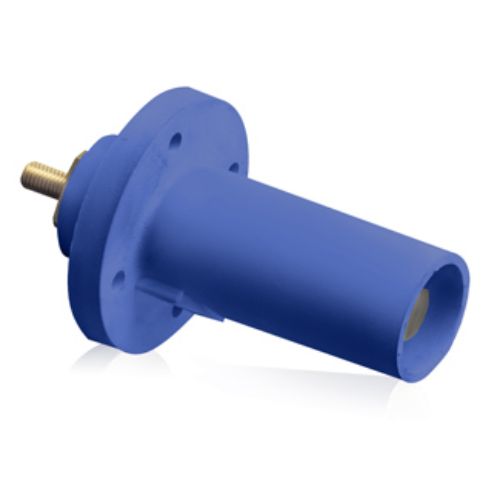

  • 17R21 range – Male, 90 degree
  • 17R22 range – Female, 90 degree

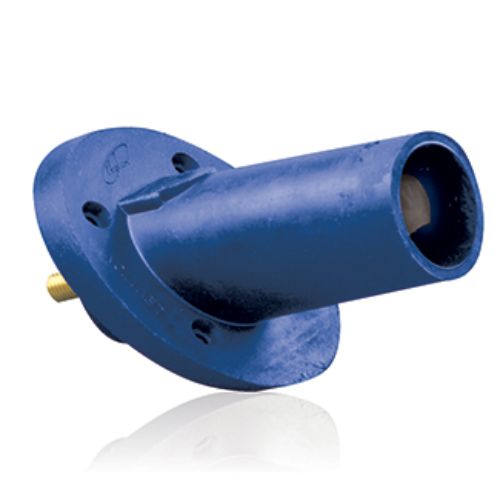

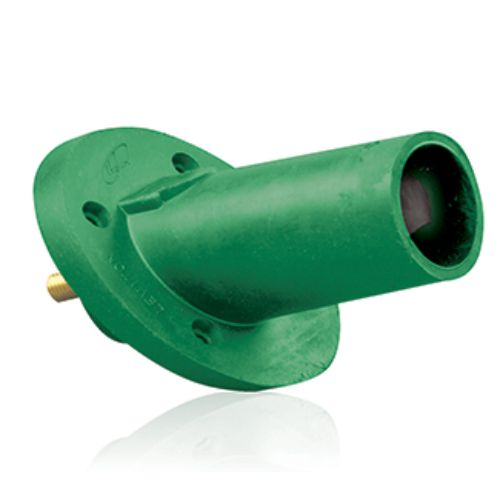

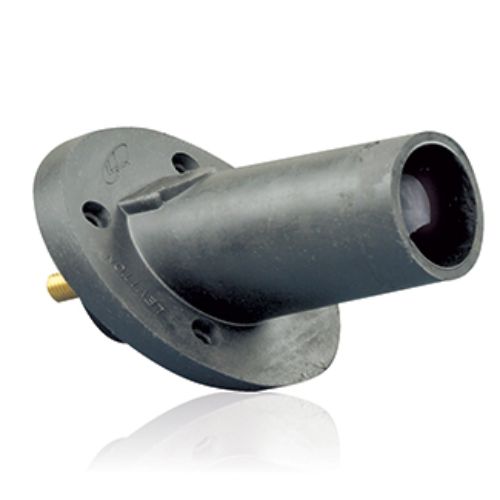

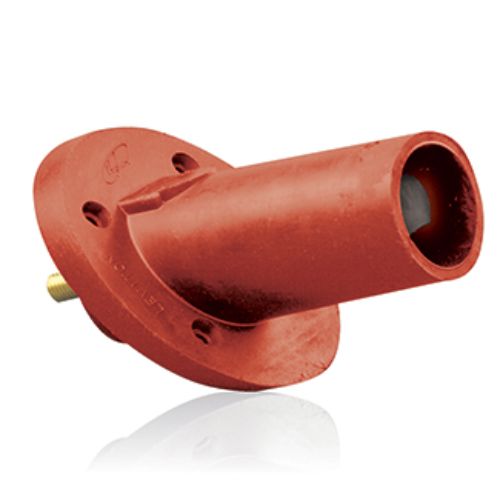

  • 17R23 range – Male, 30 degree

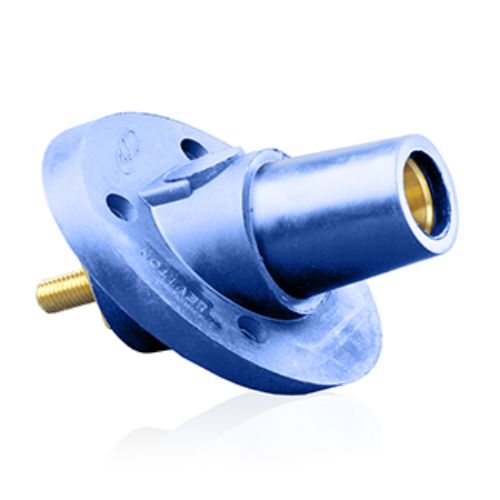

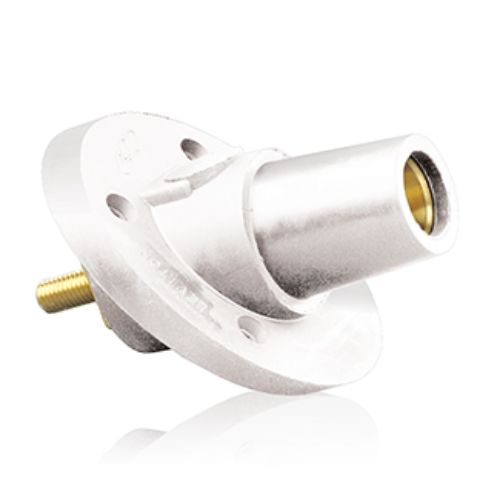

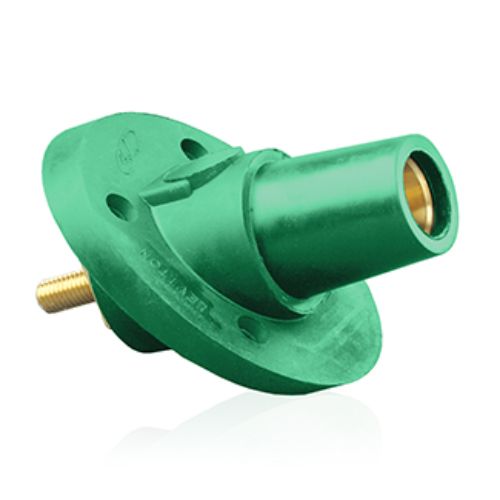

  • 17R24 range – Female, 30 degree
$372.71
$372.71
