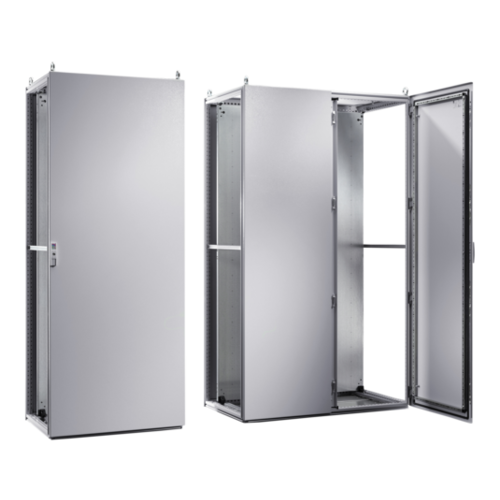

Rittal TS8 Baying System Carbon Steel Enclosure

Rittal TS 8 Baying Systems Enclosures are made from carbon sheet steel and compact to save space. The symmetrical design and triple machined construction ensures that the enclosure closes securely and maintains it's NEMA 12 rating. The unique design allows for the enclosure to be bayed on all sides for installation in limited space. The enclosure is first dipcoat-primed, then the door, roof, and rear panel are further finished in a powder-coat textured paint to protect from scratches and corrosion. Mounting plate and base plates are zinc-plated for added strength and security.

Package Includes:

• Supply includes: 4 eyebolts
• Door(s)
• Enclosure frame
• Lock: 3 mm double-bit
• Rear panel
• Right-hand door catch on single-door enclosures may be swapped to the left
• Roof plate
• 2 TS punched rails 18 x 38 mm
• Base Plates and Mounting plate

Enclosure Dimensions:

• 78.74" x 31" x 23.62"
• 78.74 x 23.62" x 23.62"
• 78.74" x 47.24" x 19.69"

Material Thickness:

• Housing: 1.5 mm (0.06 ")
• Door: 2.0 mm (0.08 ")
• Mounting plate: 3.0 mm (0.12 ")
