5 Type SC Stage Cable Pigtail Series 16 Tie-In Set Assemblies - #4 AWG
Save 19%
Original Price
$309.46
Current Price
$251.44
Save 19%
Original Price
$309.46
Current Price
$251.44
SKU PWA-TS16SC04003M-RG

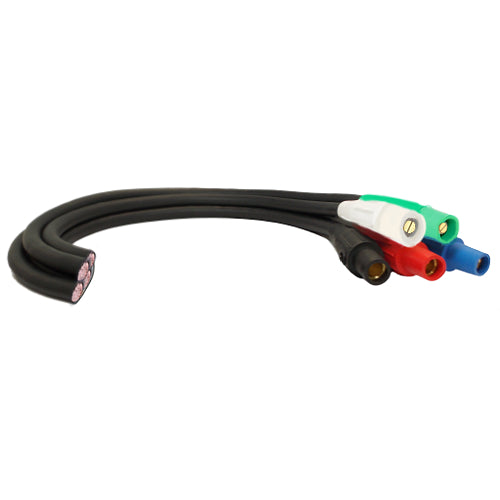

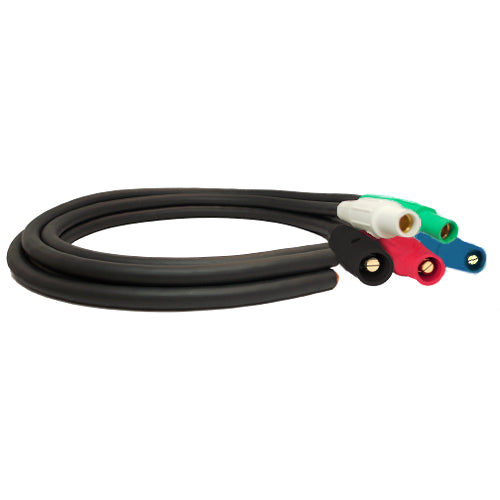

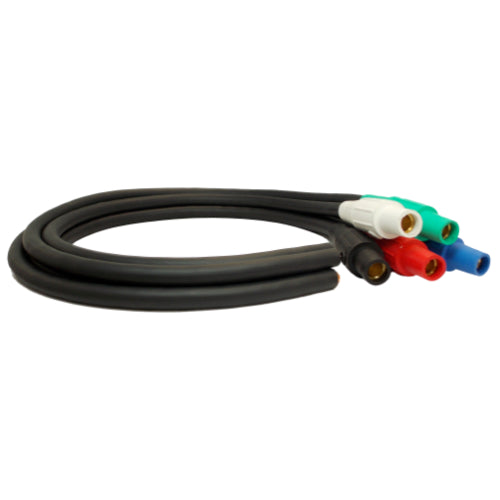

These 5-wire banded stage cable pigtails are assembled using #4 Type SC cable and your choice of male or female series 16 CAM lock connectors with a bare/blunt end. Our #4 pigtail tie-in sets are rated for 140 Amps, 600V, and are available with Black, Red, Blue, White, and Green Twist-locking CAM connectors that can be purchased in a standard configuration (All CAMS one gender), or with a reversed ground (ground opposite gender of rest of cable), or a reversed ground and neutral (both ground and neutral opposite gender).
Applications:
Type SC Stage & Lighting Pigtail Sets are primarily used in the entertainment industry in events such as concert venues, festivals, carnivals, nightclubs, theaters, television, motion pictures, trade shows, etc. However, they are not limited to those applications and are often used in conjunction with generator hookups and portable and other temporary power systems.
For custom configurations not found on this page, please contact our portable power experts at (800)-597-9311 or email the portable power group at PPG@ATIelectrical.com to receive a formal quote in a matter of minutes.
Key Features
Applications:
Type SC Stage & Lighting Pigtail Sets are primarily used in the entertainment industry in events such as concert venues, festivals, carnivals, nightclubs, theaters, television, motion pictures, trade shows, etc. However, they are not limited to those applications and are often used in conjunction with generator hookups and portable and other temporary power systems.
For custom configurations not found on this page, please contact our portable power experts at (800)-597-9311 or email the portable power group at PPG@ATIelectrical.com to receive a formal quote in a matter of minutes.
Key Features
- Manufactured in the USA
- NEMA 3R while connected
- RoHS Approved components
- UL/CSA Listed connectors/plugs
- UL/CSA Listed Type SC cable
- Abrasion Resistant Jacket
- Meets/ Exceeds Flame Test Requirements of UL, CSA, & MSHA
- Incredible Cable Flexibility from high strand count
- Heat, Oil, Chemical, & UV Resistant Jacket
- Male or Female Inline Camlock Connector
- Max Amperage: 400A
- Max Voltage: 600V AC/DC
- Camlock Housing: Rubber
- Contact Material: Brass
- AWG Sizes: #4, #2, 2/0, & 4/0
- Connectors: Female/Blunt and Male/Blunt
- Lengths: 3' and 5'. Additional lengths are available upon request.
- Configurations: Standard, Reverse Ground, or Reversed Ground and Neutral
Please Note: Power Assemblies products are built to order. Please check lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
