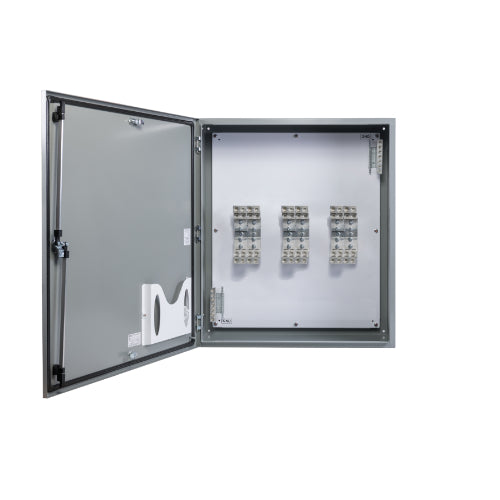

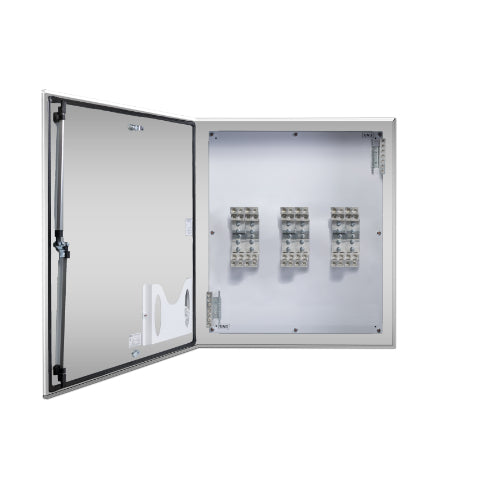

1200A, 600V Wall Mount Electrical Tap Box

The Power Assemblies tap boxes are a great choice for making cable connections in a clean safe enclosure. The nema 4X Stainless Steel or 12/4 enclosure protects against dust and moisture leaving plenty of room for tools and wire bending radius. The Enclosure is made of ANSI-61 gray powder coated 0.075 carbon steel for long life and corrosion resistance.
Specifications:


• 1200A
• 600V
• 65KAIC
• Line side:
  o    (8) #2 AWG to 600 MCM per pole
• Load side:
  o    (8) #2 AWG to 600 MCM per pole
• Ground
  o    (14) #6 AWG to 350 MCM

Please Note: Power Assemblies products are built to order. Please check lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
