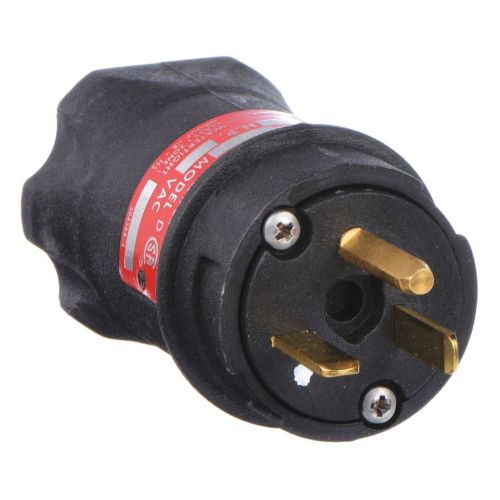

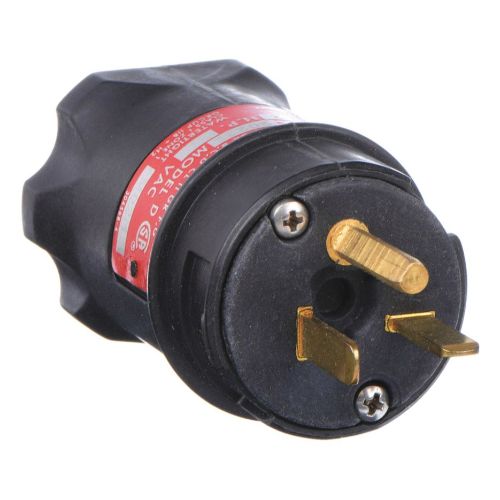

NCP U-line 30% Glass-Reinforced Thermoplastic Polyester Plug, 20A, 120/240VAC

Appleton brings you this range of U-Line interchanger plugs with 20 amperage rating. This plugs are capable for use with both stationary and portable electrical devices. The design of the plugs makes them well suited for hazardous conditions and locations. Use the NCP plug in wet environments where moisture and corrosion are constant problems. Thus it’s suitable for use on facilities in marine platform, or pipeline transportation.

Benefits and Features

• Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
• Insulators provide superior dielectric and mechanical strength and lowest arc tracking
• Longer plug housing for better gripping and easier plug insertion and withdrawal
• Plugs fits any standard non-explosion proof receptacle (NEMA 5-15R, 5-20R, or 6-20R) as well as U-Line explosion proof receptacles
• Twisting plug locks it in place and cannot be accidentally pulled out
• NCP plug: special neoprene watertight plug bushing accommodates flexible cord ranging from .538"" to .639"" diameter
• Inter-mateable with competitor's plugs of like configurations

Electrical Specifications

• Hazardous Area Classification: Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups F, G; Class III; NEMA Type 4, 7BCD, 9GF
• Amperage: 20
• Voltage: 120 VAC or 240 VAC
• Number of Poles: 3
• Number of Wires: 2
• Plug Cable Diameter.538 – .639 NCP
• Plug Material: 30% glass-reinforced thermoplastic polyester
