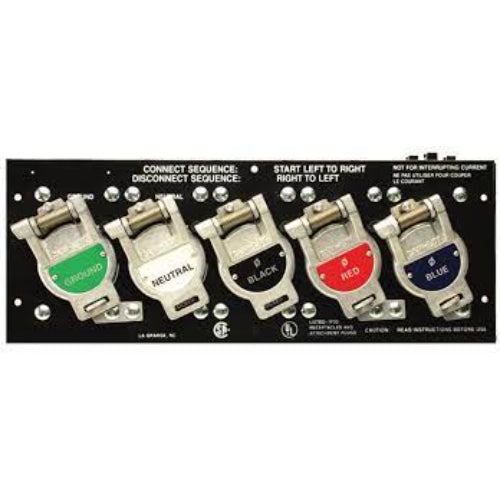

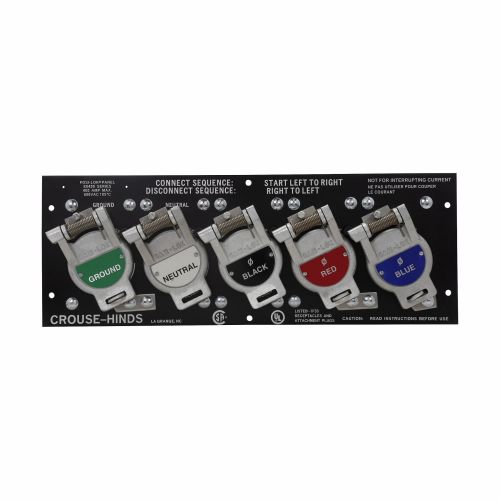

Posi-Lok E400 Series Panels, Cable Size #2-4/0

These panels, like the plug connectors that mate with them, are ideal for use in emergency or disaster relief scenarios, where it is critical to have secure and safe power connection because of the unique color coded interlock. Use a single conductor cable up to full amperage without the need to de-rate. With this you’ll be able to provide temporary and standby power in such instances with ease and peace of mind. These electricals are designed in accordance with safety requirements. They are UL Listed and CSA Certified. The panel is also made to meet Article 520-53 Section K and Article 530-22 Section A (NEC) standards. BENEFITS & FEATURES • Sequential Plug Inter-Lock One of the premier design features of the Posi-Lok™ series panel is the sequential connector lock. This is a built in safety feature which requires each plug to be connected or disconnected in sequence. The receptacle covers will not unseal and raise until the preceding plug is properly locked into place. The panel features directions and warning printed on to direct you of this incredible safety feature. Other features include: • Limit switch capabilities • Phase integrity in ensured by a reliable cross-phase protection system. • Quick Installation - these panels can be mounted onto standard 19 inch racks with ease. • The panels use lightweight, single conductor cables to provide the means for hurried personnel to quickly and safely connect and disconnect power systems without having to use any tools • Panel receptacles have lock washers, flat washers and jam nuts included. • Panels have silver plated copper contacts • Ampacity is based on cable size or continuous rating (whichever is less) PRODUCT SPECIFICATIONS Insulator Material: Elastomeric Contact Material: Copper Temperature Ratings: -40°C to 105°C Environmental Rating: NEMA 3 AVAILABLE OPTIONS Receptacles per Panel Options • 3 receptacles per panel: green, white, black • 4 receptacles per panel: green, black, red & blue • 5 receptacles per panel: green, white, black, red & blue • 6 receptacles per panel: green, white, white, black, red & blue Cable Size Options (E0400) • #2 AWG: 190 Amps • #1 AWG: 220 Amps • 1/0: 260 Amps • 2/0: 300 Amps • 3/0: 350 Amps • 4/0: 400 Amps
