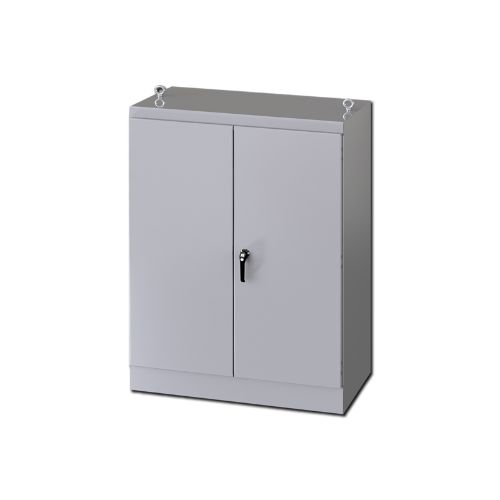

Free Standing Two Door Single Access Enclosures

These enclosures are ideally suited for use in both indoor and outdoor environments. They provide protection to your electrical equipment and components that can be safely stored inside. The solid structures guard against the ingress and entrance of solid objects like dirt and water and moisture (rain, sleet, snow). They can be mounted on surfaces and racks. Use this 0,104 inch carbon steel trough to store electricals and disconnects in a range of industrial applications and heavy commercial uses like:

• Oil refineries
• Chemical and petrochemical plants
• Onshore plants
• Fuel depots
• Ships and shipbuilding

The enclosures are free standing – they can be securely placed on the flat floor surface for sturdy stable positioning. The enclosures have two door with single handle access with secure latching. ANSI-61 gray powder coated both inside and outside for corrosion resistance and UV resistance.
Mechanical Features

• 0.104 In. carbon steel.
• Concealed hinges.
• Two-Door Single Access.
• Removable and interchangeable doors.
• Seams continuously welded and ground smooth.
• Lifting eyes for easy handling.
• Black zinc die cast keylocking/padlocking handle.
• 3-point latching mechanism.
• Latch rods have ramp shoes for easier door closing.
• Flange trough collar around all sides of door opening.
• Removable print pocket provided on door with 3-point latch.
• Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
• Pour in place oil & water resistant gasket
• Ground stud on door.
• Provisions for light kits.
• Holes plugs provided to seal holes in bottom of enclosure.
