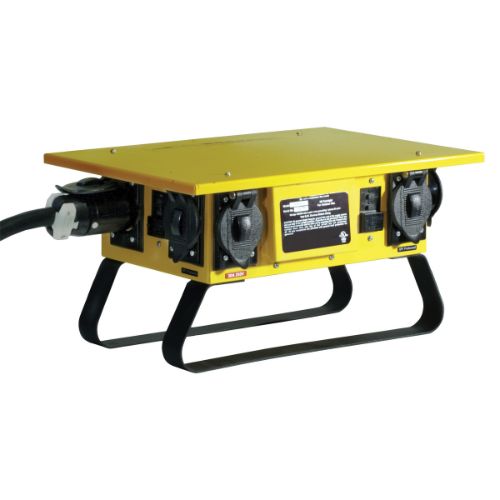

50A, 120/240V AC Temporary Power Distribution System Boxes

$1,613.38
$1,613.38
SKU HUB-TPDL
Categories:
Time is money and since a lack of power can cost time, having the ability to stay connected with temporary power is crucial. Thus the temporary power distribution capability provided by these portable power boxes is critical for several industries. Select between a twist-lock inlet/outlet power box or straight blade inlet/outlet power box.

APPLICATION:
  • These box can be used to power live events, conventions, concert tours, filming production and industrial uses.
  • Use them to distribute power to computers, vending machines sound systems and to power tools.

FEATURE:
  • These distribution boxes have several feature that make them well suited for a variety of applications
  • They have a yellow powder coated steel constructed frame which makes the highly visible, an important feature on sites with a lot of human and vehicular traffic
  • As many as six 20 Amp covered receptacles which allow for six distribution cable extensions (TPC 50 or TPC 100)
  • The spider box has individual GFCI modules for circuit breaker protection minimizes shock hazards, shutting off current power within 1/40th of a second.
  • The enclosure of the distribution is rated NEMA 3R – resistant to rain and capable of use in damp locations
  • These temporary power boxes have a nesting leg design that saves space

DIMENSIONS:
  • Length: 21,5 inches
  • Width: 14,5 inches
  • Height: 12,52 inches
AVAILABLE OPTIONS:
  • Distribution Box, Twist Lock, (6) GFI 20A 125V Receptacles, (1) 30A 250V Receptacle, (1) 50A 125/250V Inlet and Outlet, Yellow
  • Distribution Box, Straight Blade, (6) GFI 20A 125V Receptacles, (1) GFI 30A 250V Receptacle, (1) 50A 125/250V Inlet and Outlet, Yellow
$1,613.38
$1,613.38
