Non-Plenum GenSPEED 5000 CAT 5e Cable,1000' Box

$200.80
$200.80
SKU WRE-244PCAT5eNPBLU
Categories:
Non-Plenum GenSPEED 5000 Category 5e Cable, 1000' Box, Blue Category 5e twisted cable for computer networks. This is a 1000 foot non-plenum cable length. These GenSPEED 5000 Category 5e Cables are designed for data transmission including across the following networks:
  • Used for broadband transmission
  • Baseband Analog video broadcast
  • Copper Distributed Data Interface (CDDI), Token Ring, ATM
  • Suitable for Ethernet Based network cables such as IEEE 802,3:1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+
Features
  • These Non-Plenum cables have a range of features that benefit users beyond other makes and cable wire manufacturers
  • They are engineered to provide stable and continuous performance
  • The cables are designed to operate at a guaranteed frequency of up to 200MHz.
  • The cable are part of the TRU-Mark ® brand designs which have footage markings from 1000’ to 0’

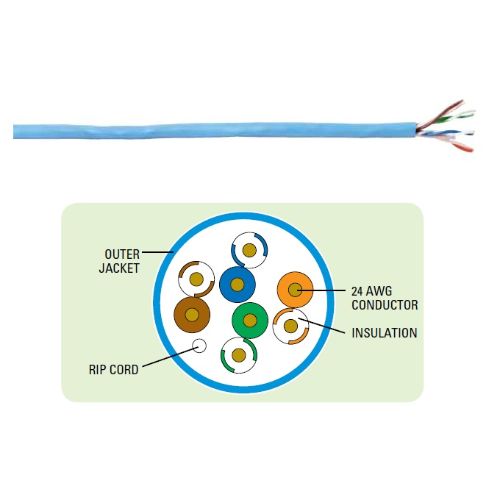

  • 24 AWG Solid Bare annealed copper conductor
  • Rip cord applied longitudinally under the jacket
  • The Non-plenum type jacket is flame retardant PVC
  • Insulation is non-plenum type of polyolefin
  • It is important to note that General Cable has designed these cables in accordance with industry standards: UL Listed, ICEA listed and RoHS Compliant
Electrical Characteristics
  • DC resistance [max]: 9.38
  • DC Resistance unbalanced [max] individual pair %: 4.00
  • Delay skew [max] (ns/100m): 45
  • Nom. Velocity of Propagation (%Speed of Light): CMP: 72, CMR: 70
  • Characteristic Impedance (frequency: 1-200MHz): 0hms (100±15)
Physical Data
  • Nominal Cable Diameter (in): 0,195
  • Nominal Cable Weight (lbs/1000ft): 19
  • Minimum Bend Radius (in): 1.0
  • Maximum Pulling Force (lbs): 25
  • Temperature Rating (°C) Installation at 0 to +60 Operation at -20 to +75

$200.80
$200.80
