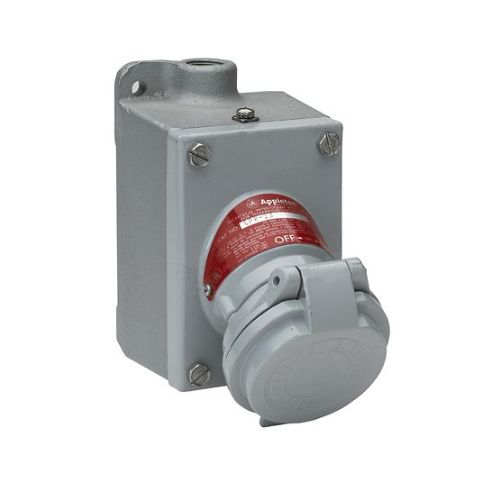

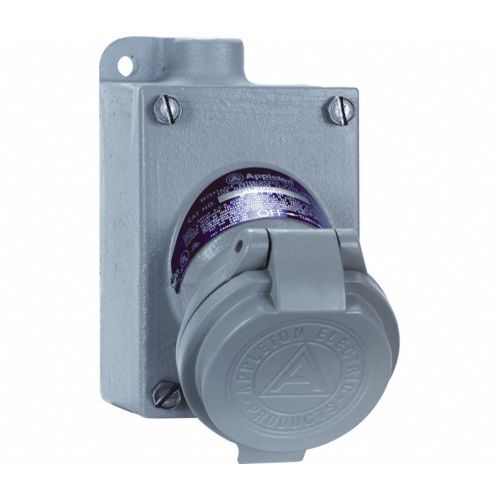

Contender CPS Factory Sealed 20 Amp Pin and Sleeve Receptacles, 120/240VAC

$570.62
$570.62
SKU APP-CPS152-101
Categories:
Benefits and Features
  • Covers are UL Listed when used with Contender Series mounting bodies
  • Plug mechanical cable clamps prevent strain on cables – they meet or exceed UL strain relief pull-out requirements
  • Insulators provide superior dielectric and mechanical strength and lowest arc tracking
  • Delayed action construction: insert plug partially rotate slide on front of receptacle and insert plug fully
  • Factory sealed: external seals not required
  • Plug and receptacles are supplied with pressure terminal connectors

Electrical Specifications
  • Hazardous Area Classification Class I, Division 1 and 2, Groups C, D
  • Amperage: 20
  • Voltage: 125-250 Vac, 125 Vac or 18 Vac
  • Number of Poles: 3
  • Number of Wires: 2
  • Horsepower Ratings: 1
  • Plug Cable Diameter: .538 – .639
  • Mounting Box Entries: Dead-End or Feed-Thru
  • Materials and Finishes Receptacles: covers, caps and ECP plugs are copper free (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat (1) zinc electroplate, (2) chromate and (3) epoxy powder coat finish. Insulating blocks are fiber glass
$570.62
$570.62
