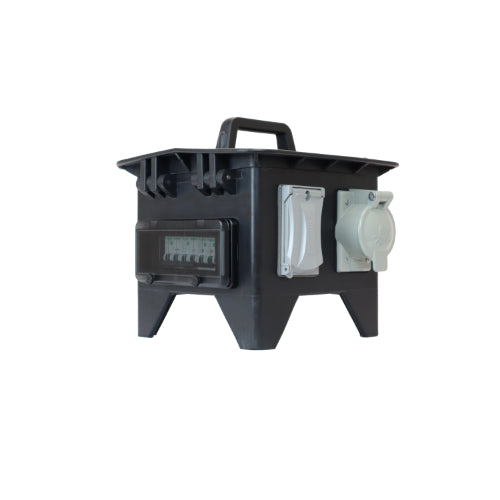

Marine Beetle Box Power Distribution Center

The Marine Beetle Box by Power Assemblies is an ideal power distribution center that is perfect for marine settings such as marinas, docks, or yachts, This Marine Beetle Box is constructed of a rugged, non-metallic rubber, and configured with GFCI protection to endure harsh marine weather conditions. While this allows for a stronger, safer, and more portable way to distribute power in any marine environment, it is not limited to wet-location settings and can be optimized in industrial fields, as well. For project-based pricing or any marine products not listed on our site, please contact us at (954)-644-3876.

• Marine Rated

• Branch circuit protection

• Lightweight, durable, compact

• Impervious to rust due to its non-metallic frame

• Ground fault circuit interrupters (GFCI) protection

• An elevated base keeps receptacles above ground level

• Breakers are mounted under a hinged window for easy access

• Spring-loaded covers protect receptacles from dirt and moisture

• Non-metallic rubber housing to insulate against electrical currents

• Sturdy construction that stands up to the toughest marine environments

Model Options:

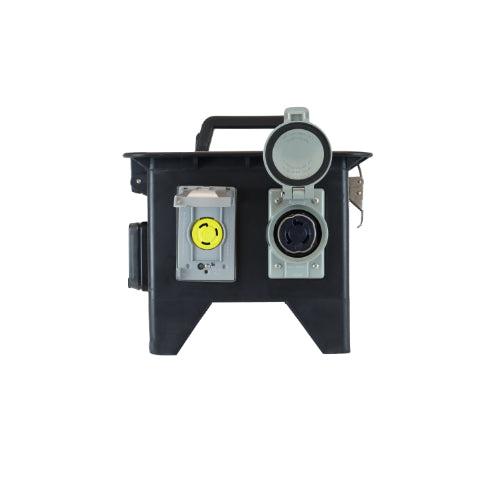

• BB-M50-HW

Input: Hard Wired From Current Electrical System

Output:

• (2) 20A GFCI 125V Straight Blade Receptacles
• (1) 30A 125V Twist Lock Marine Rated Receptacle
• (1) 50A 125/250V Twist Lock Marine rated Receptacle

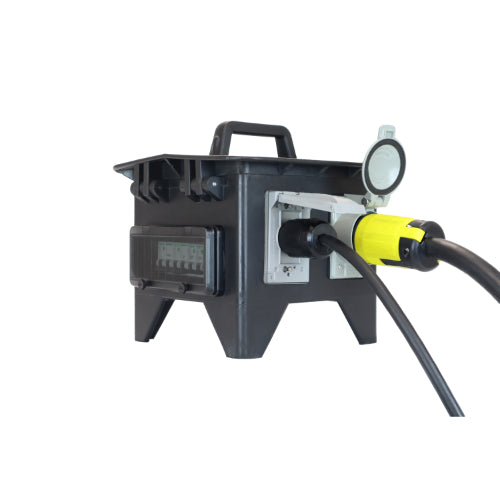

• BB-M50-IN

Input: 50A Inlet

Output:

• (1) 50A 125/250V Twist Lock Marine rated Receptacle
• (1) 30A 125V Twist Lock Marine Rated Receptacle
• (2) 20A GFCI 125V Straight Blade Receptacles

Please Note: Power Assemblies products are built to order. Please check lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
