Pilot Lighted 8300 Duplex Receptacle Outlet
$60.13
$60.13
SKU LEV-8300-PLI
Get these Extra Heavy Duty Hospital Grade Receptacles from Leviton, featuring their innovative power on light indicator.
Application: The receptacles UL tested to ensure safe operating standards and mechanism in applications that require high-abuse tolerance including:
- Health care facilities like hospitals and clinics
- Manufacturing plants and industrial operations
- Schools and educative centers
Receptacle Features:
- The duplex receptacles feature a Power indication – a dot lens with a green LED indicator that will last for over a 100,000 hours of operation. The green light indicates properly function power
- Face made of impact resistant thermoplastic nylon that withstand knocks and abrasion
- Impact resistant cover is also smooth. It will not easily collect dirt making it easy to maintain and keep clean
- Straight blade for plug in receptacle

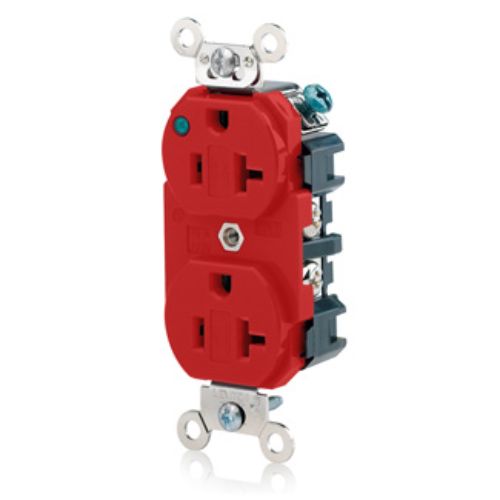

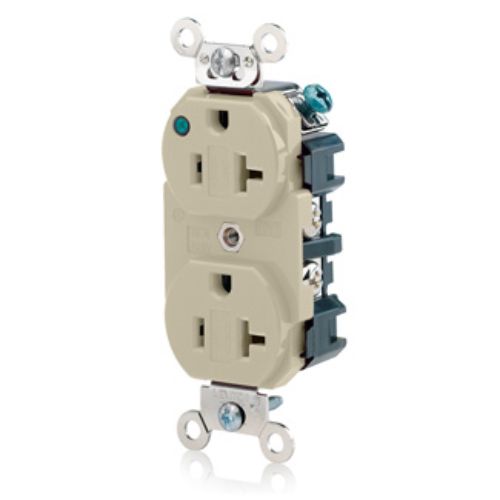

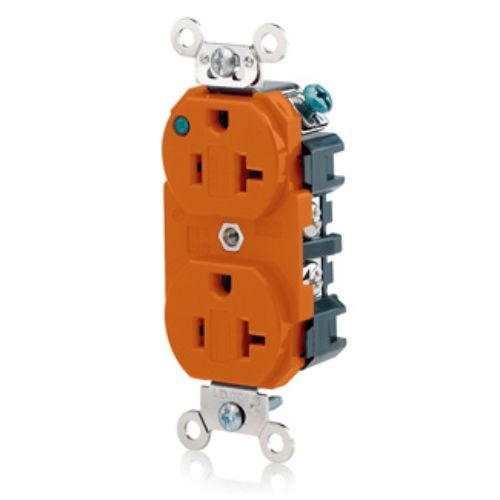

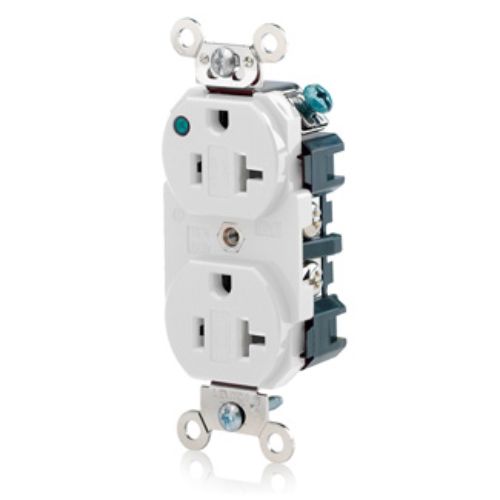

- Available in white, red, orange, ivory.
Termination and Grounding Features:
- The receptacle features back and side wire ground termination with back and side wiring options, specifically 8 hole feed through.
- The terminal screws are made of a high performance brass #10-32 that reduce conductor oxidation
- There is an apron barrier between terminal screw heads and metal box to prevent accidental contact
- V shaped serrated back wiring clamps for superior contact
Safety and Environmental Features:
- Meets all UL listed requirements, NEMA 5-20R rating, CSA certifications and is backed by 10 year warranty
- The flammability is rated V-2 per UL94
- The receptacle has optimal operating temperature range of -40°C to 60°C
Electrical Specifications
- AC Horsepower Rating: 1 HP
- Amperage: 20 A Current Limiting: Full Rated Current Dielectric
- Voltage: Withstands 2000V per UL498
- Grounding: Self-Grounding
- Pole: 2
- Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
- Voltage: 125 VAC
- Wire: 3
- Markings are permanently marked on device Terminal Accom.: 14-10 AWG
- Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
- Termination: Back or Side Wire Torque
- Range: 14-16 inch pounds
- Nylon Clamp Nuts: Galvanized Steel Face
- Material: Nylon Ground
- Clips: Nickel-Plated Brass
- Grounding Screw: Plated Brass Line
- Contacts: Nickel-Plated Brass Triple-Wipe .040 Thick
- Strap Material: Nickel-Plated Brass
- Terminal Screws: Plated Brass
Standards and Certifications: ANSI: C-73; CSA C22.2 No. 42: File 152105; NEMA: WD-6; NOM: 057; UL Fed Spec WC-596: File E13399; UL498HG: File E13399
