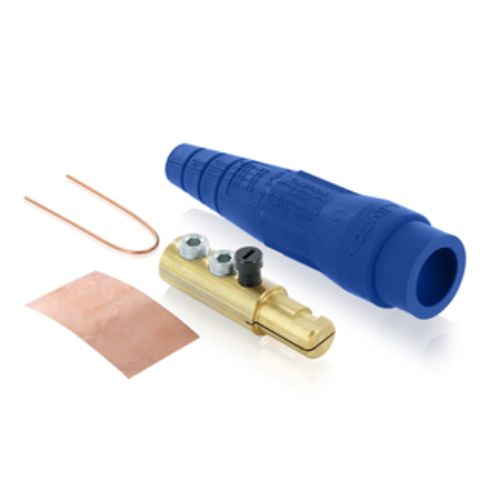

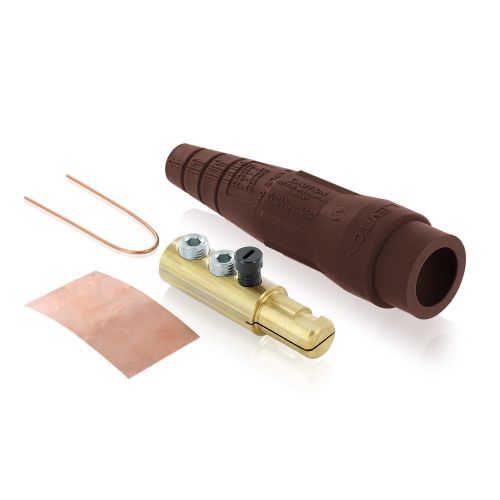

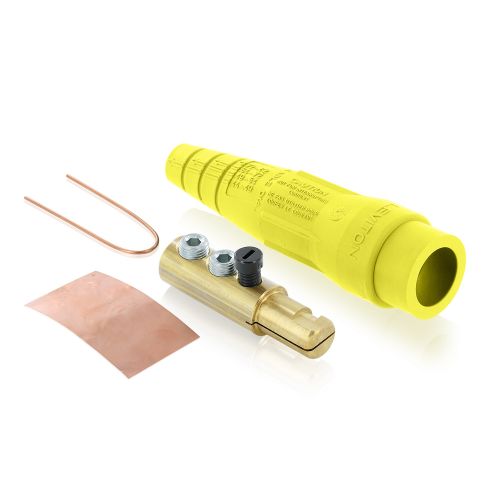

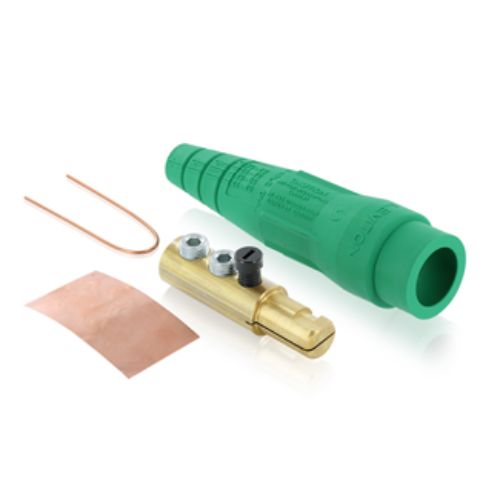

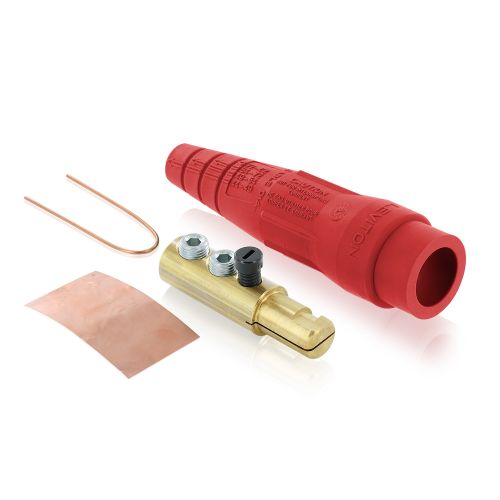

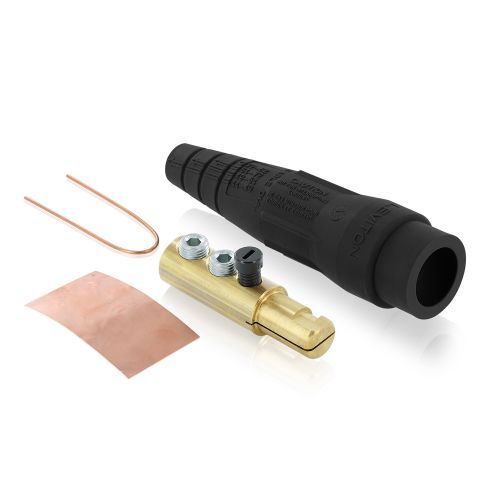

18D22-E 18 Series Cam-Type Male Detachable Plug, double set screw, black
* All pictures shown are for illustration purposes only.
Actual product may vary based on spec selection.

18 Series Cam-Type Detachable Plugs, #2 – 2/0 AWG, 300 Amp Max

by Leviton Manufacturing Company
$22.22
$22.22
SKU LEV-18D22-UE
Categories:
Inline, Wire Connectors,
Application
The 18 Series Ball Nose plugs, receptacles and connectors are well suited for use in the broadcast industry in Canada, as well as the welding industry in the United States. They feature solid brass contacts and high performance TPV insulator so they are ideal for both indoor and outdoor use. So they are also used in oil and gas, mining operations, power distribution, construction sites, and other temporary power applications.

Benefits and Features
  • Positive locking connection maintains integrity even when high vibration during use
  • They are inter-mate able and compatible with other competitive brand cam type products (can be retrofitted)
  • Designed for easy assembly and disassembly, without special tools.
  • NEMA 3R rated for outdoor use when mated
  • Color-coding provides fast and easy phase identification
  • Single or double set screw termination
  • UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating

Electrical Specifications
  • Cable Range: 2-2/0 AWG
  • Connection Type: Double Set Screw or Single Set Screw
  • Max. Amperage: 300 Amp
  • Max. Voltage: 600 Volt
  • Style Name: Detachable
  • Standards and Certifications: UL/CSA, UL/CSA UL Listed: File E-13399; 1691, 508 – 35k A / 600V
  • Short Circuit Current Rating

Available Options
  • 18D22 range – Male, double set screw termination

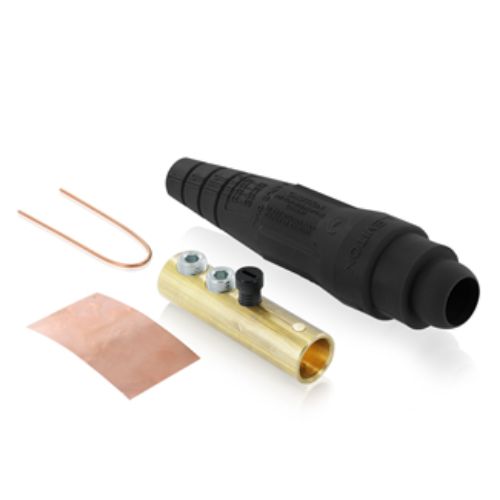

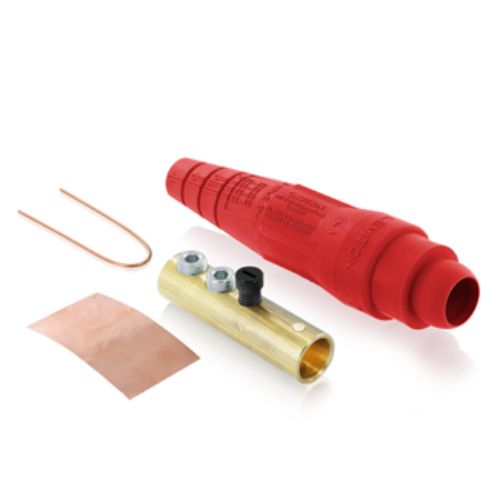

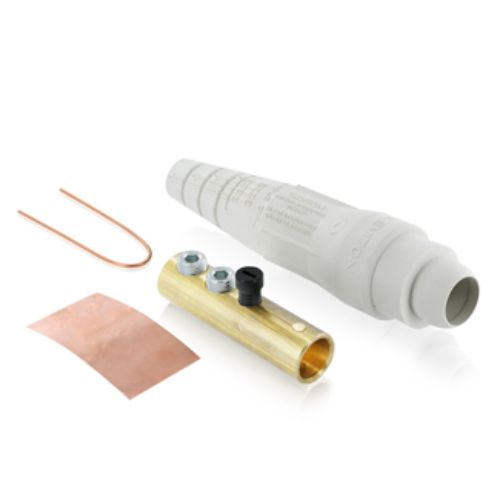

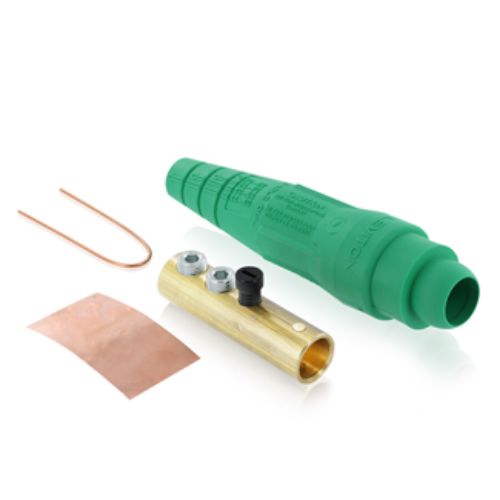

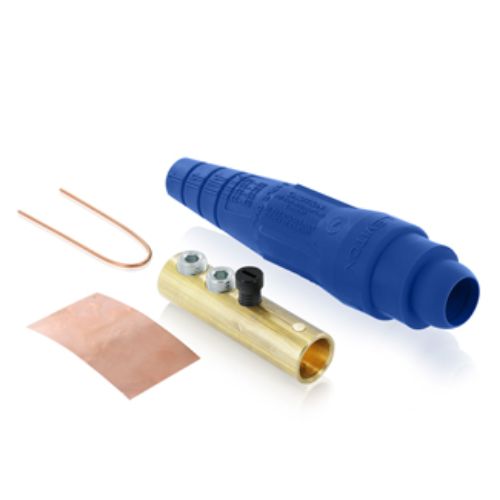

  • 18D31 range – Female, double set screw termination

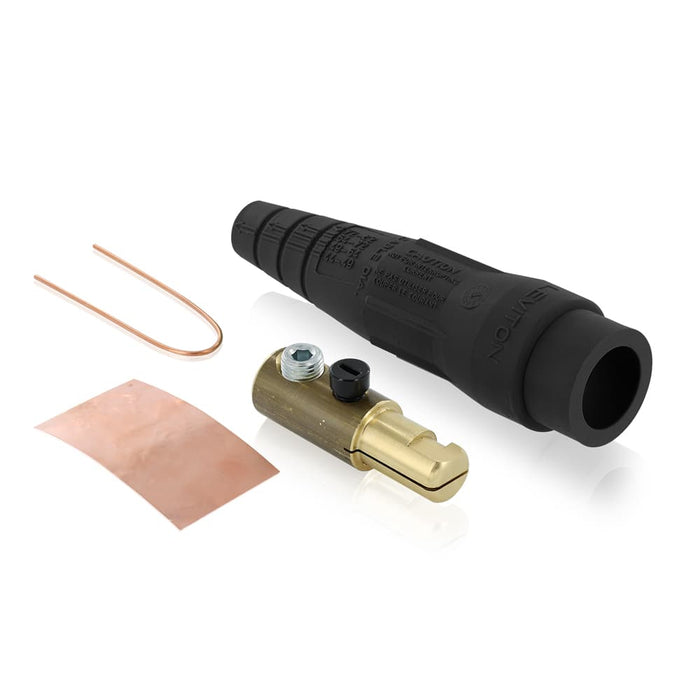

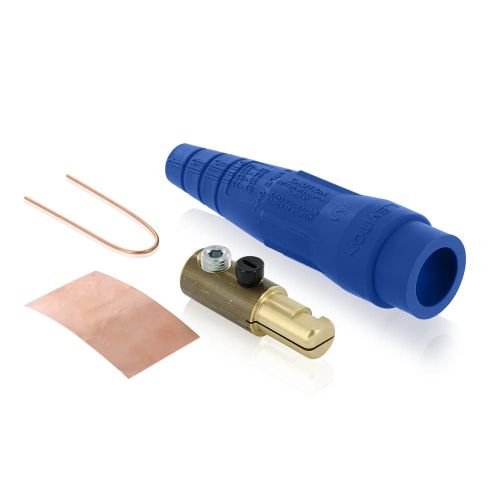

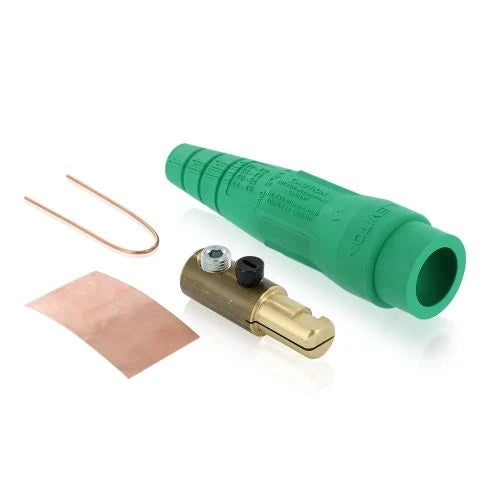

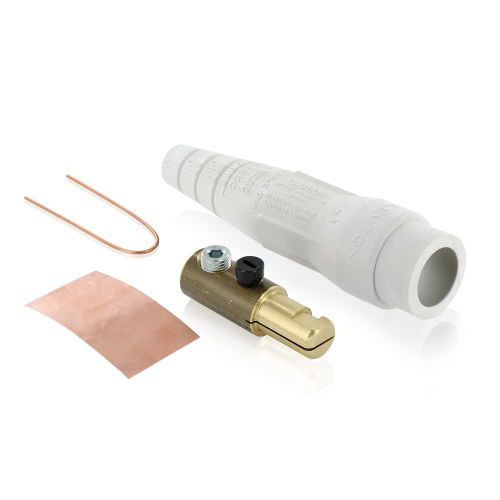

  • 18D21 range – Male, SSS

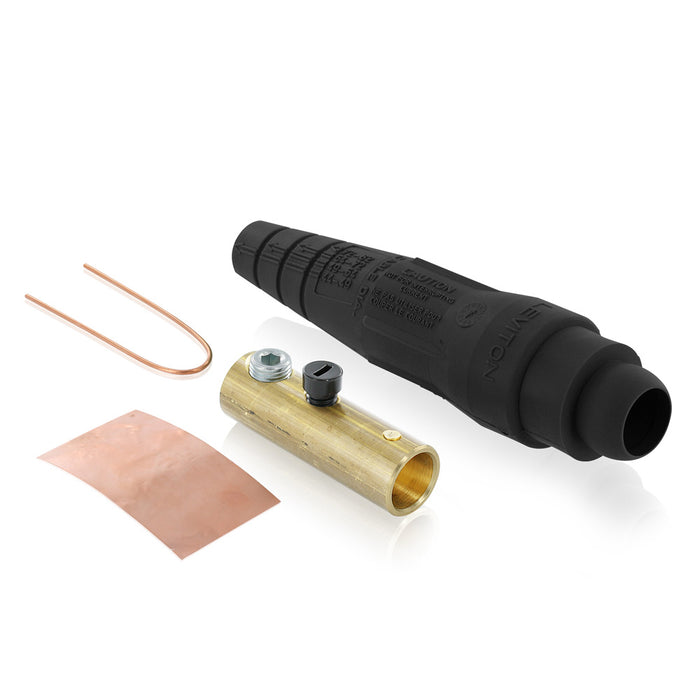

  • 18D29 – Female, single set screw
$22.22
$22.22

Customer Reviews

Based on 1 review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
100%
(1)
M
Michael Wilke
Sent me something I didn't even know existed.

I have been using and ordering Cam Lok for 40 years. It is the industry standard in Entertainment. I ordered these, not knowing, and not seeing anything in the description that they are some oddball version, I nor anyone in the industry I have asked has ever heard of. They do say it's 18 Series, but no notation of Ball Nosed. Maybe I should have been suspicious that they listed the Series or looked really closely at the picture. No other vendor or website I have bought from even lists them as an option. It's actually a completely different version which does not interface with the industry standard Cam Lok.
Long story short, they charge a hefty restocking fee , plus I have to pay return shipping so I will just give these away. I'll at least use the screws out of the bags for spare part.
