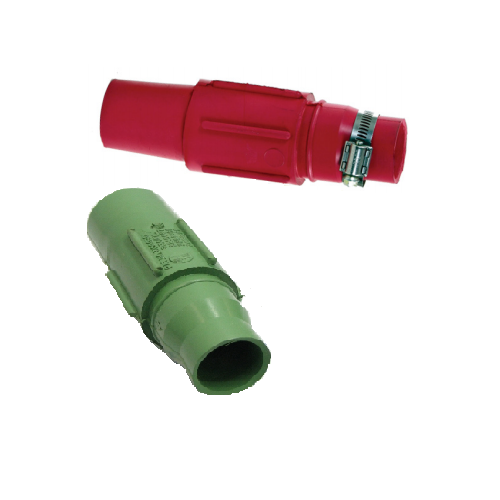

J Series E1017 DSS Insulator Plug, 350-500 MCM

$133.81
$133.81
SKU ECH-A200040-2
Categories:
Cam-Look ™ J Series connectors are made for portable applications. These single pole J–series plugs and receptacles are well designed for quick connections The E1017 J Series are designed with CAM-Lock double cam principle for positive – vibration proof connection – the connection won’t be dislodged by vibrational use.
Please Note: This is the Insulator Only. To purchase the complete set (Insulator and Contact), please contact us at (800) 597-9311

Features:
  • These J Series E1017 plugs and receptacles have several features:
  • Insulated: Recessed contacts protected by insulated jacket
  • Shatter and crack resistant housing
  • Water tight – heat, weather, oil, ozone and abrasion resistant
  • Color coded for easy phase identification
  • The contact can withstand a torque/pulling force of 1,000 lbs.
  • Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in providing minimum resistance

Specification
  • Electrical rating: 600V AC/DC, 690Amps Continuous
  • Temperature ratings: Operating ambient: -40°C to 105°C
  • Accepts cable size: #8, AWG – 800MCM
  • Insulator material: Elastomeric or Rubber
  • Contact material: Brass or Copper
