22 Series Ball Nose In-Line Latching Connector, 350-500MCM, 690 Amp Max
* All pictures shown are for illustration purposes only.
Actual product may vary based on spec selection.

22 Series Ball Nose In-Line Latching Connector, 350-500MCM, 690 Amp Max

by Leviton Manufacturing Company
$435.91
$435.91
SKU LEV-22L22-E
Categories:
Inline, Wire Connectors,
Application
The 22 Series Cam-Type positive latching connectors and receptacles are the standard used by Navy bases and shipyards in supplying 3-phase power to ships at dockside. These ball nose protective caps are used on the 22 series connectors and receptacles to protective and shield them for the harsh navy and shipyard environment.

Benefits and Features
  • Made from Santoprene which is durable and hardy able to withstand the weather at sea and any physical strain
  • Santoprene is resistant to UV and chemical exposure
  • The protective covers are also vibration resistant, holding strong during usage. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.
  • Insulated for water tightness and safety
  • Allows for quick connect and disconnect
  • Have been tested to meet Navy standards

Electrical Specifications
  • Max. Amperage: 690 Amp
  • Max. Voltage: 600 Volt
  • Cable Range: 350-500MCM
  • Connection Type: Crimped

Material Specifications
  • Contact Material: Brass
  • Sleeve Material: Santoprene TPV
  • Strain Relief: Copper Wire

Available Options

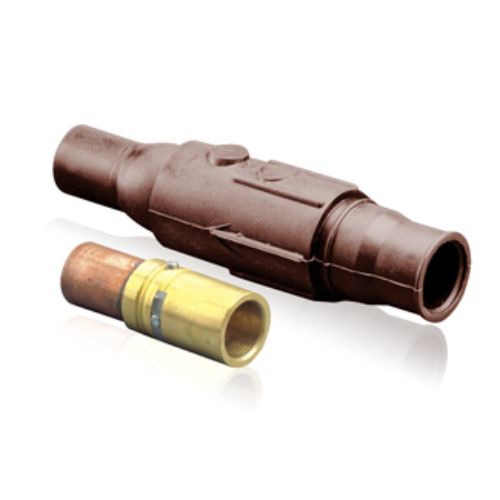

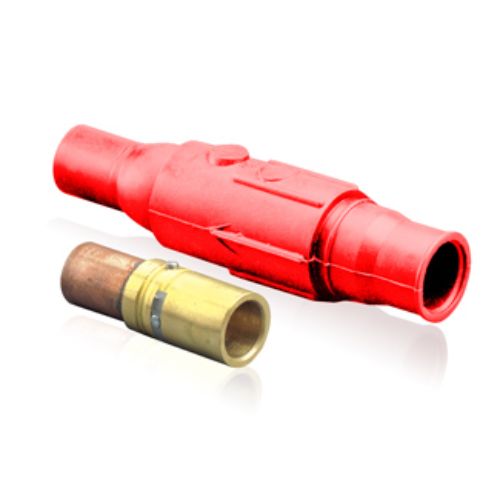

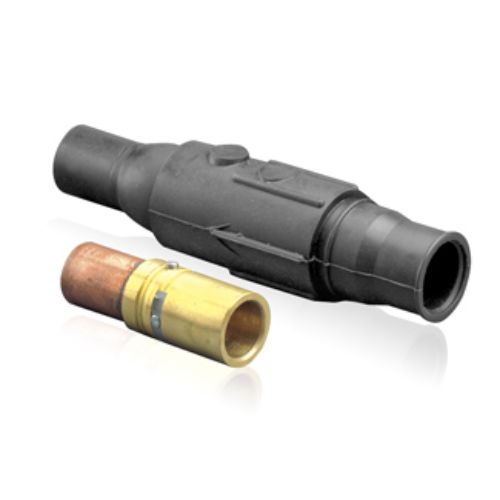

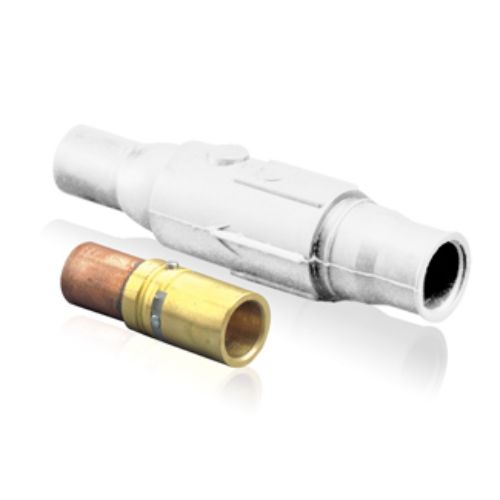

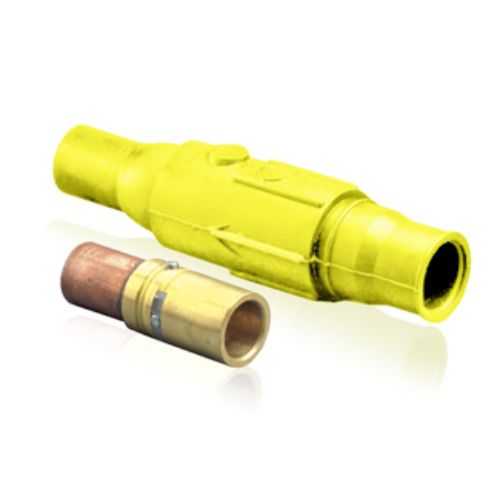

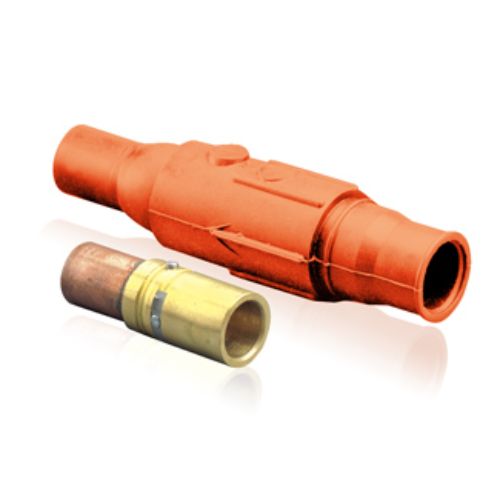

  • 22L25 - 22 Series Ball Nose In line Female Connector

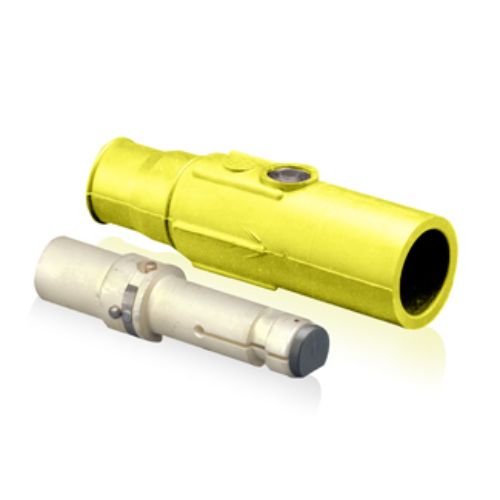

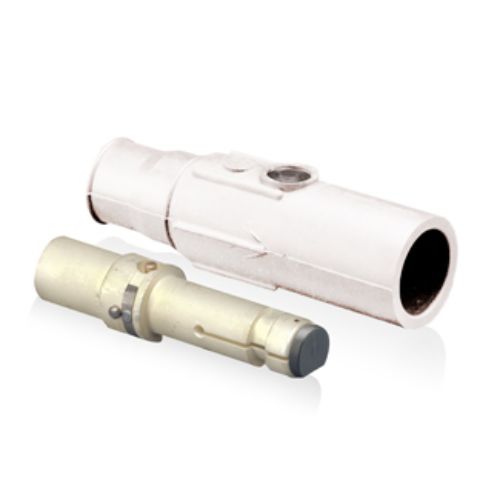

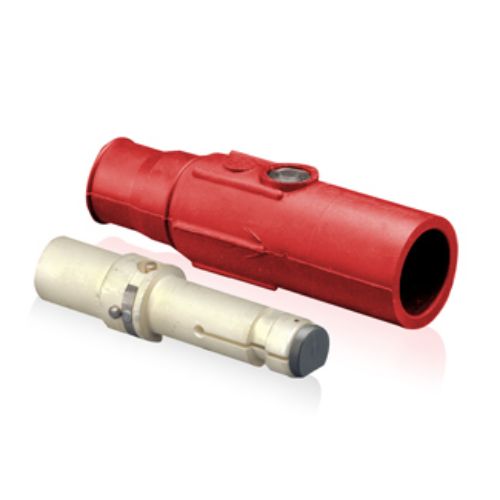

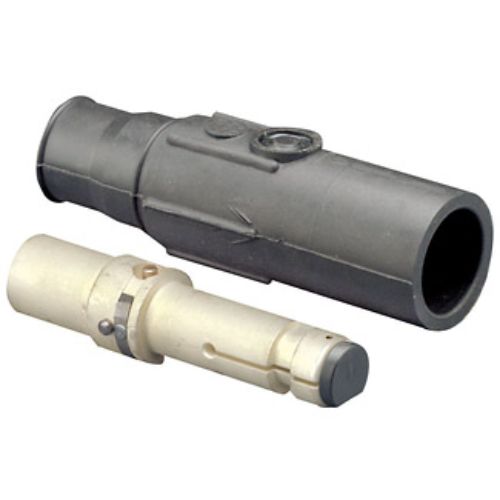

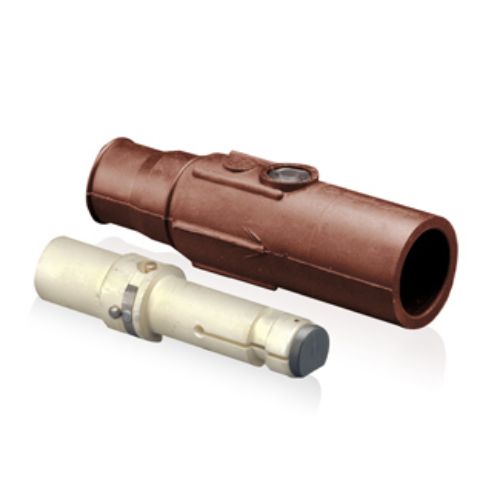

  • 22L22 - 22 Series Ball Nose In line Male Connector
