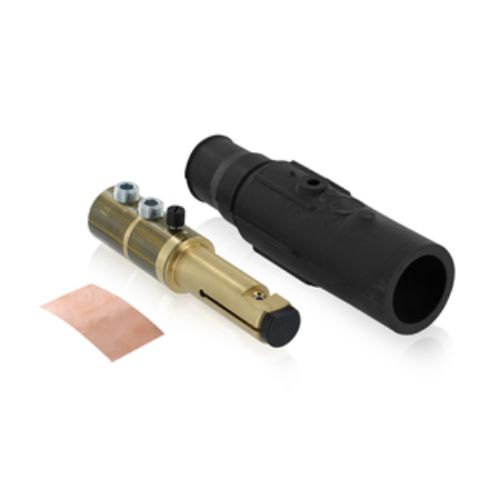

19 Series Cam-Type Detachable Plug, Double Set Screw Termination, Ball Nose, 350-500MCM, 690 Amp

Application
The 19 Series Ball Nose connectors and panel receptacles have become the industry standard for multiple operator stations, distribution panels, stress relieving and numerous other applications including use on generator test stations, water purifications plants, electrochemical machining equipment and other general industrial uses.
Benefits and Features

• They are insulated for water tightness and safety.
• They allow you to quickly connect or disconnect equipment
• They are inter-mate able and compatible with other competitive brand cam type products (can be retrofitted)
• They are durable – shatter and crack proof because of the santoprene TPV they are made off
• Self-compensating for wear and use – the male contact has a slit to provide for spring action during longer use
• Vibration proof connection with high conductivity - will not vibrate or loosen, ensuring maximum efficiency
• UL listed

Electrical Specifications

• Max. Amperage: 690 Amp
• Max. Voltage: 600 Volt
• Cable Range: 350-500MCM AWG
• Connection Type: Double Set Screw
• Contact Cat. No.: 19D24-C Insulator Cat. No.: 19SDF-R

Material Specifications

• Contact Material: Brass
• Sleeve Material: Santoprene TPV
• Strain Relief: Copper Wire
