Outlet Box PBT Plates and Covers

$43.02
$43.02
SKU HUB-HBL3056
Categories:
DescriptionSpecifications
Outlet boxes allow you to provide safe power on location on sites in industrial plants, maintenance projects, entertainment locations and sets, construction sites, factory facilities, and shipyards. Hubbell brings you a range of unassembled boxes, with these covers, that you can configure to your required specifications with ease. Select from this range of covers.

Features
  • These covers are flame and UV resistant, with an operating temperature of between -40°C (without impact) to +60°C continuous.
  • PBT material strength - This PBT material is impact resistant making the outlet box more durable, able to withstand busy work environments.
  • Weather Resistant rated -  This outlet box cover is UL Type 3R rated. This means that it is rated for use both indoor and outdoor and is resistant to water, moisture or dampness.
  • Gasketed Cover Plate - Seal The covers are gasketed for a seal finish that prevents the intrusion of dirt and dust and particulates from work sites. The plate has adhesive on one side for easier assembly
  • Chemical and Corrosion Resistant -  The covers are made with lift covers that have stainless springs and hinges. This stainless steel is resistant to corrosion by chemicals, making them last longer is harsh environments.

Materials
  • Housing: PBT
  • Cover plate screws: Stainless steel
  • Cover plate spring: Stainless steel
  • Hinge Pin: Stainless steel
  • Hinge bracket: Stainless steel
  • Gasket: Neoprene
Available Options:

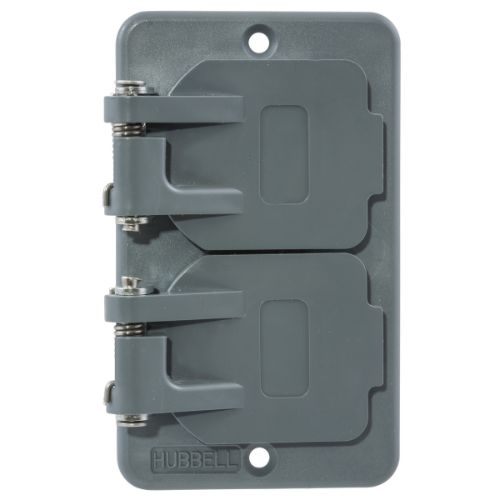

  • HUB-HBL3056: Outlet Box Cover, Duplex Receptacle, UL Type 3R
  • HUB-HBL3057: Outlet Box Cover, 1.39" Diameter Receptacle, UL Type 3R

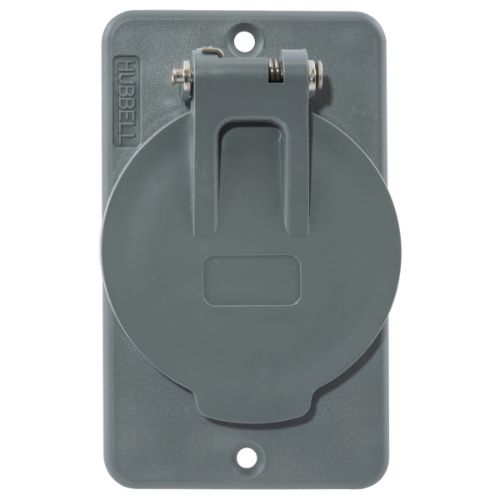

  • HUB-HBL3058: Outlet Box Cover, 1.572" Diameter Receptacle, UL Type 3R

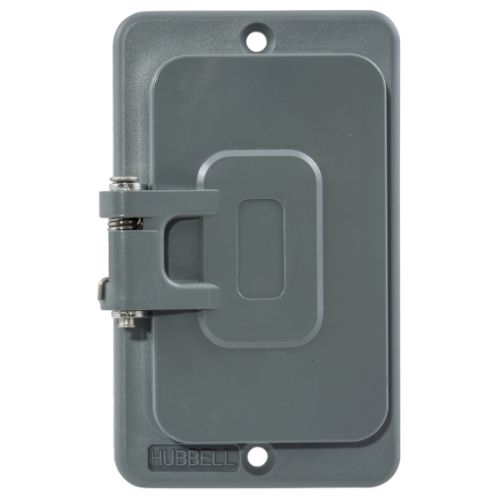

  • HUB-HBL3061: Outlet Box Cover, GFCI, UL Type 3R

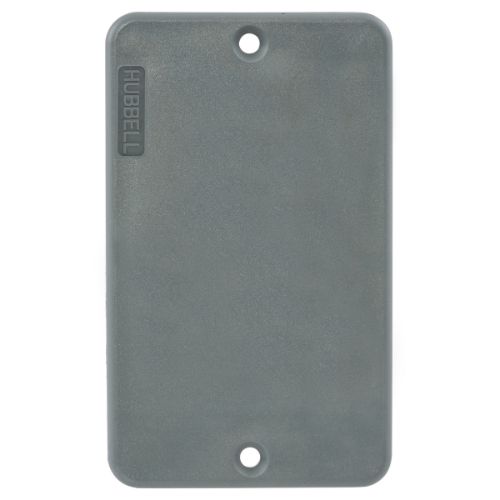

  • HUB-HBL3054: Outlet Box Cover, Blank, UL Type 3R

Other options are available upon request. Please contact us at 800-597-9311 to further assist you.
MaterialPolybutylene Terephthalate (PBT)
ColorGray
Operating temperatures-40°C (without impact) to +60°C continuous
FeatureImpact and Heat Resistant
StandardsListed to UL514C, UL Type 3R, Meets NEMA WD-1, WD-6 and ANSI standards
BrochureView
Spec SheetView
