Generator Connection Boxes (GDS), 400A, Mini Series, 24"H x 20"W x 8"D

Save 19%
Original Price $3,141.62
Current Price $2,552.56
Save 19%
Original Price $3,141.62
Current Price $2,552.56
SKU PWA-GDS-M04-4
Categories:

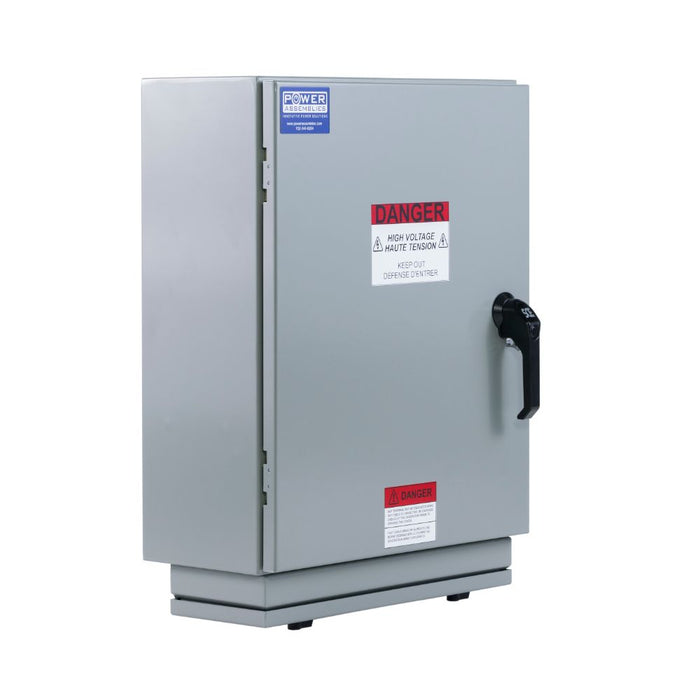

The Mini Generator Docking Station (GDS) is our smallest and lightest connection box available online, and it packs quite a punch with a maximum amperage rating of 400 Amps! It has a voltage rating of up to 600 VAC. The Mini GDS measures 24 in H x 20 in W x 8 in D making it the most suitable selection for space-constrained areas. To see larger units with more amperage options, we also carry the Standard model and the Large model.

Application
The Miniature GDS paired with an Automatic Transfer Switch provides the capability to connect a backup generator quickly and efficiently for emergency power applications. This offers homes and businesses a solution to transfer over from utility power to generator power quickly, safely, and effectively. This wall-mounted enclosure will act as a hub between your generator and transfer switch so when you’re ready to roll out your cable assemblies, just plug them in and get power.

Assembly

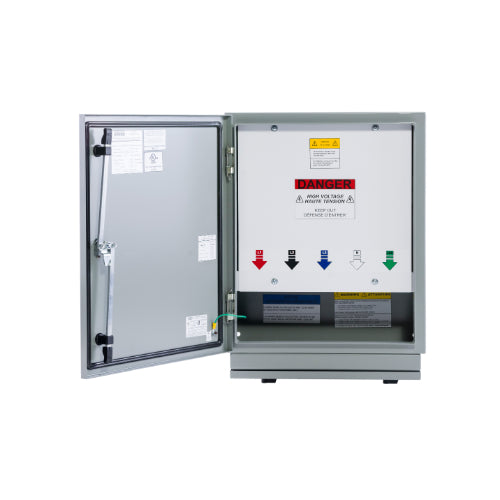

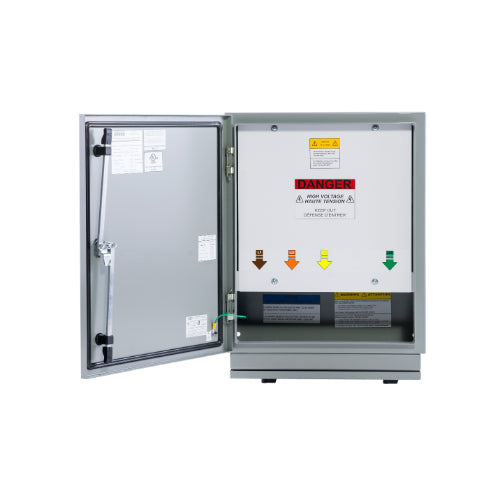

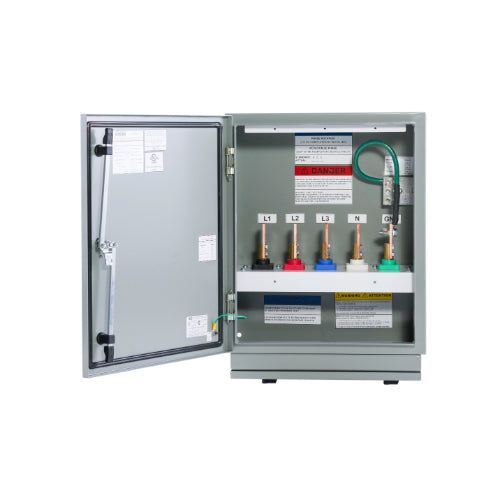

This Generator Docking Station developed by Power Assemblies is a low-cost high-quality Generator Connection Box with a CAM Lock quick connection system. It comes equipped with industry-standard Series 16 Male Input CAM Locks and grounding terminals enclosed within a pad-lockable enclosure. Terminations are landed in the enclosure on a silver-plated copper bus bar mount for reduced resistance. The bottom of the GDS enclosure includes a hinged access panel for generator CAM-type connector feeder cables, and the inlets cannot be accessed unless the door is open.

Durability
All our Generator Docking Stations can stand up to residential, commercial, and industrial working conditions. This connection box is NEMA 4/12 rated ready to perform indoors or outdoors and can withstand exposure to dirt, debris, and wind-driven rain. The Mini GDS is built from durable 0.075” (14-gauge) carbon steel to ensure long life and corrosion resistance. (Stainless steel and powder-coated options are available upon request).

Guarantee
The Mini GDS is cULus UL 1008 Listed. A series of stringent testing validates that it will operate safely and reliably as intended. These tests range from overload, endurance, and interruption testing criteria in addition to all mechanical construction requirements. Our products are covered by a manufacturer’s warranty for a period of one (1) year from date of shipment from the manufacturer.

Key Features:

  • 400A
  • Voltage Rating Up to 600 VAC
  • 24"H x 20"W x 8"D
  • Wall-Mounted
  • CAM Lock Quick Connection System
  • Power Input: Industry Standard Series 16 CAM Lock
  • Power Output:  Silver-plated Copper Bus Bar Mount
  • Lockable
  • 3-point Latching Mechanisms
  • NEMA 4/12 Rated
  • Watertight
  • PowerTEK™ Series OU, OM & SB
  • 0.075” (14-Gauge) Carbon Steel
  • UL 1008 Listed – Transfer Switch Equipment

Common Applications:
  • Residential
  • Construction
  • Hospitals
  • Data Centers
  • Airports
  • Emergency Power

Please Note: Power Assemblies products are built to order. Please check the lead time under the specification tab to avoid any delays. Items will ship by your selected shipping method upon completion. Customers have the option to add an expedited fee of 25% if needed before the lead time period. This fee will not be charged online as we need prior confirmation from the production facility.
