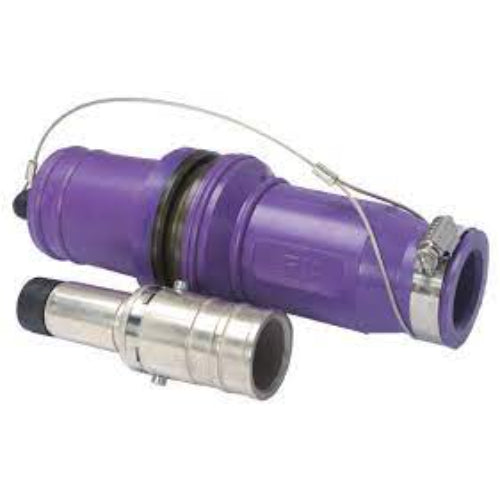

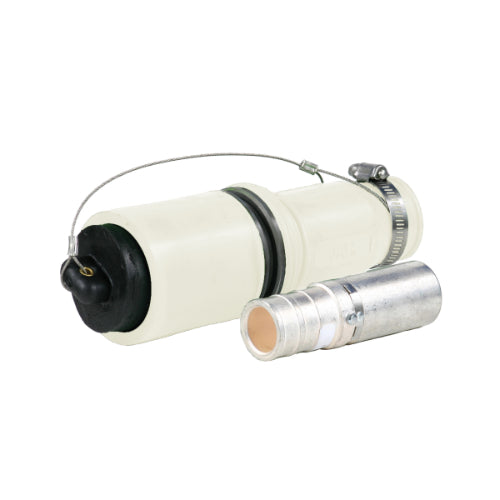

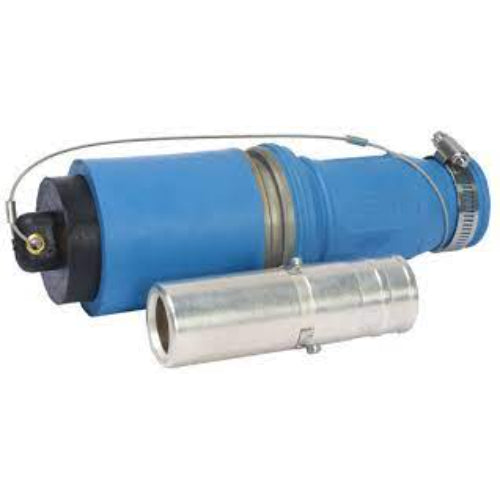

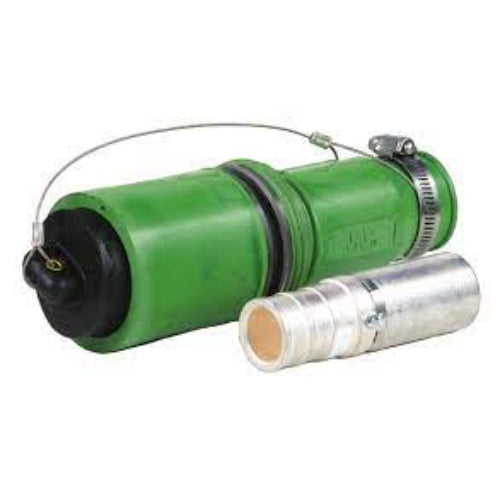

Roughneck E1049 Series Male and Female Standard Connectors - 646 MCM
$1,121.22
$1,121.22
SKU ECH-E1049-60
These Roughneck™ E1049 series connectors are made rugged and hardy, ideal for land based drilling applications. They are designed to withstand heavy abuse all the while maintaining a safe and secure connection.
Benefits and Features
Product Specification
Benefits and Features
- Contacts machined from solid copper and specially plated for corrosion resistance and superior conductivity
- Color-coded rubber insulator provides quick visual identification of circuit and phase connections
- Watertight insulators provide maximum protection
- Male and female contacts are assembled to cable with standard crimp tools
- Drive pins on contacts securely lock it to the insulator
- Male contacts are equipped with safe front insulated tip
Product Specification
- Cable Size: 646 MCM
- Voltage Rating: Up to 1009A continuous
- Ampacity rating at 40° ambient: 814 Amps at 90°C - 1009 Amps at 125°C
- Material - Insulator: Rubber
- Material – Receptacle Shell: epoxy powder coated aluminum alloy
- Material – Hardware: Stainless Steel
- Material – Contact: Copper
