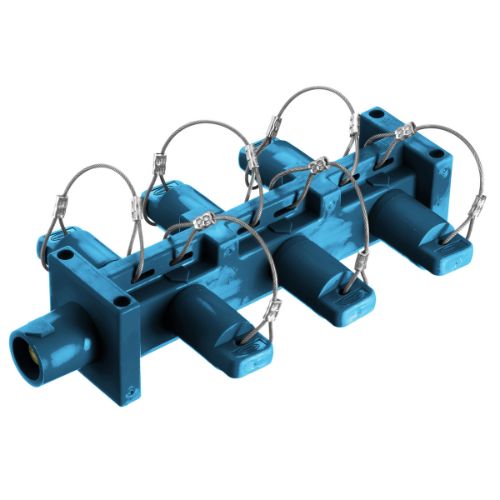

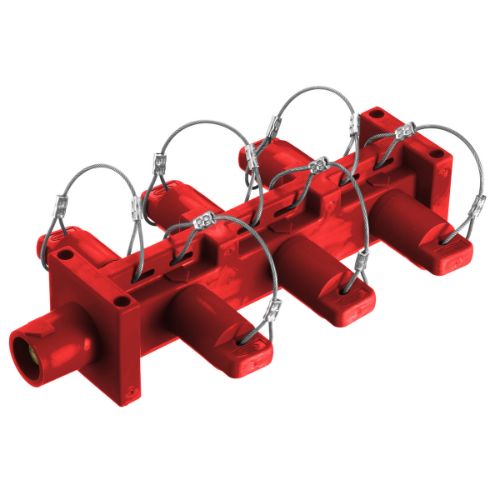

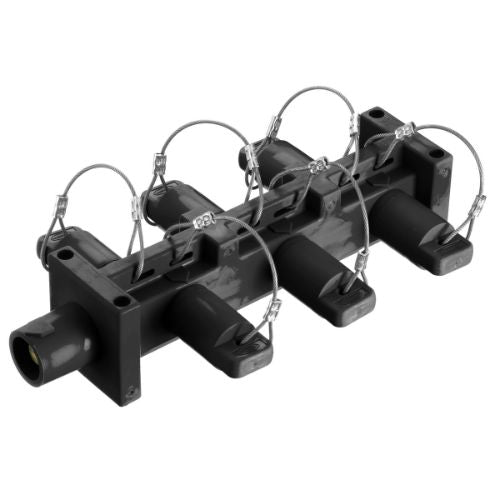

Series 16 Distribution Block ( 1 Male - 6 Females)

A distribution terminal block distributes an electrical circuit from a single input branching out to several outputs to power several devices. The benefit of such is great. It is economical and convenient because it reduces the number of wires in your electrical panel. It essentially eliminates the need to wire each device to the power source by using one large input wire and several smaller output wires. This feature is particularly useful in the entertainment industry where you may have to run several connections at one time. These distribution boxes from Hubbell are some of the best in the industry. These boxes have 1 Male input source to 6 Female output outlets. The distribution terminal blocks meet industry standards listed UL 498 and UL1691.

Available in Black, White, Green, Red, Blue, Brown, Orange, and Yellow, with lanyard protective caps for when the device is not in use.

Electrical Specifications:

• Material: Brass and Elastomer
• Number of Pins: (1) Male In - (6) Female Out
• Operating Temperature: Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
• Amperage Rating: 400A Maximum
• Voltage Ratings: 600V AC Maximum 250V DC Maximum
