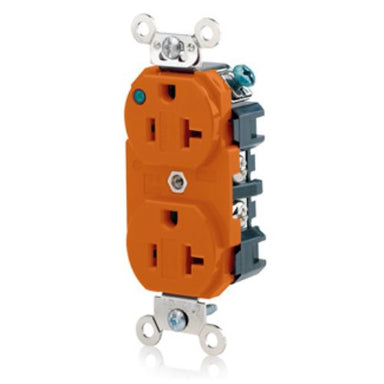

Get these Extra Heavy Duty Hospital Grade Receptacles from Leviton, featuring their innovative power on light indicator.

Application: The receptacles UL tested to ensure safe operating standards and mechanism in applications that require high-abuse tolerance including:

Health care facilities like hospitals and clinics
Manufacturing plants and industrial operations
Schools and educative centers

Receptacle Features:

The duplex receptacles feature a Power indication – a dot lens with a green LED indicator that will last for over a 100,000 hours of operation. The green light indicates properly function power
Face made of impact resistant thermoplastic nylon that withstand knocks and abrasion
Impact resistant cover is also smooth. It will not easily collect dirt making it easy to maintain and keep clean
Straight blade for plug in receptacle
Available in white, red, orange, ivory.

Termination and Grounding Features:

The receptacle features back and side wire ground termination with back and side wiring options, specifically 8 hole feed through.
The terminal screws are made of a high performance brass #10-32 that reduce conductor oxidation
There is an apron barrier between terminal screw heads and metal box to prevent accidental contact
V shaped serrated back wiring clamps for superior contact

Safety and Environmental Features:

Meets all UL listed requirements, NEMA 5-20R rating, CSA certifications and is backed by 10 year warranty
The flammability is rated V-2 per UL94
The receptacle has optimal operating temperature range of -40°C to 60°C

Electrical Specifications

AC Horsepower Rating: 1 HP
Amperage: 20 A Current Limiting: Full Rated Current Dielectric
Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Mechanical Specifications Product ID:

Markings are permanently marked on device Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back or Side Wire Torque
Range: 14-16 inch pounds

Material Specifications Body Material:

Nylon Clamp Nuts: Galvanized Steel Face
Material: Nylon Ground
Clips: Nickel-Plated Brass
Grounding Screw: Plated Brass Line
Contacts: Nickel-Plated Brass Triple-Wipe .040 Thick
Strap Material: Nickel-Plated Brass
Terminal Screws: Plated Brass

Standards and Certifications: ANSI: C-73; CSA C22.2 No. 42: File 152105; NEMA: WD-6; NOM: 057; UL Fed Spec WC-596: File E13399; UL498HG: File E13399
