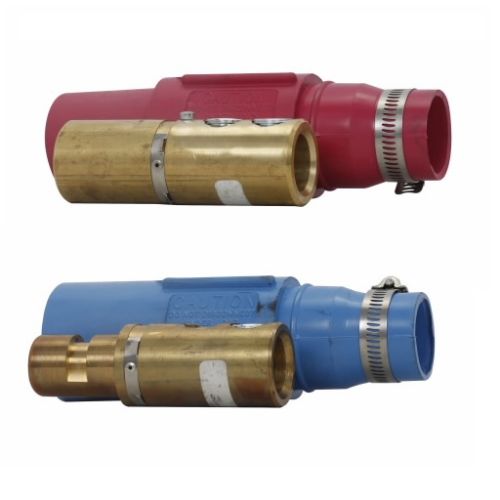

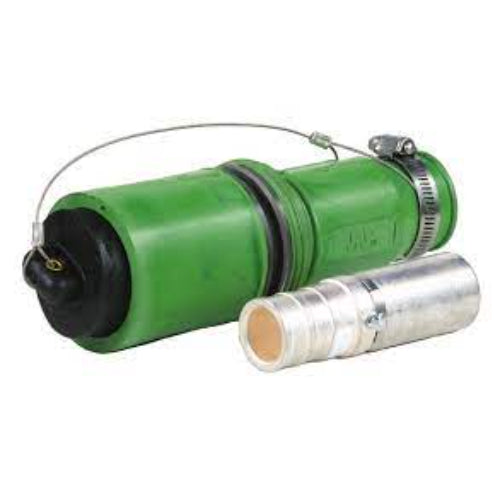

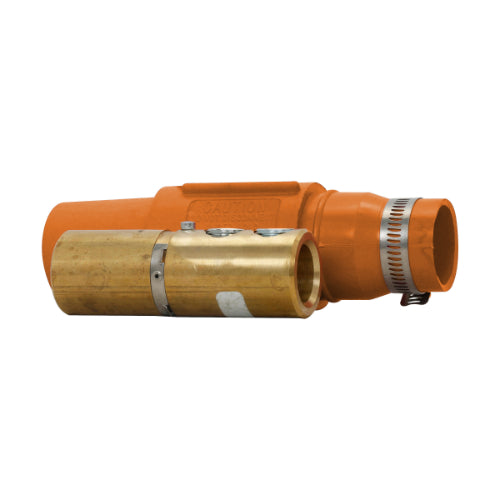

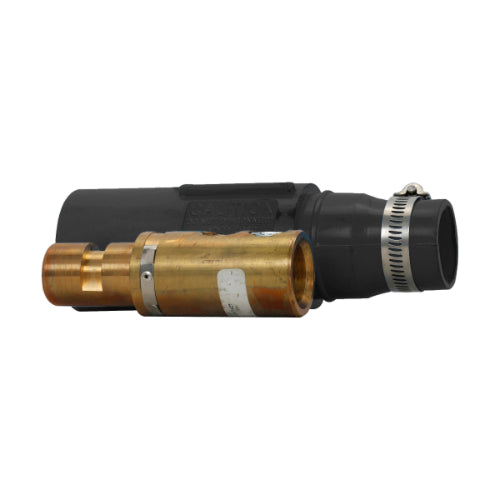

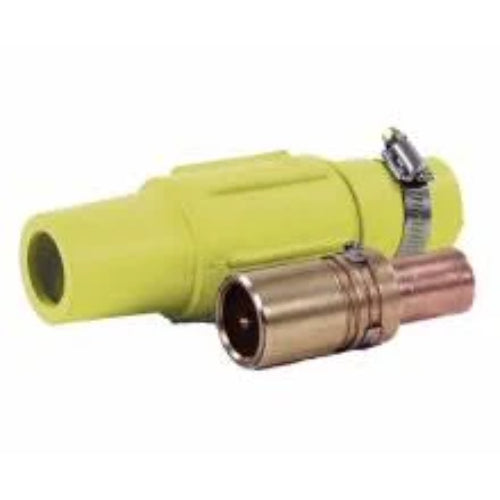

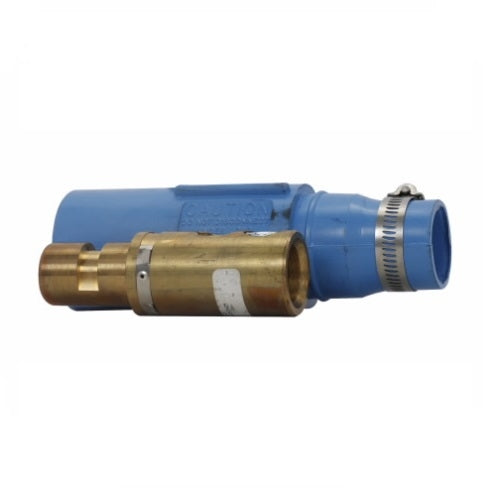

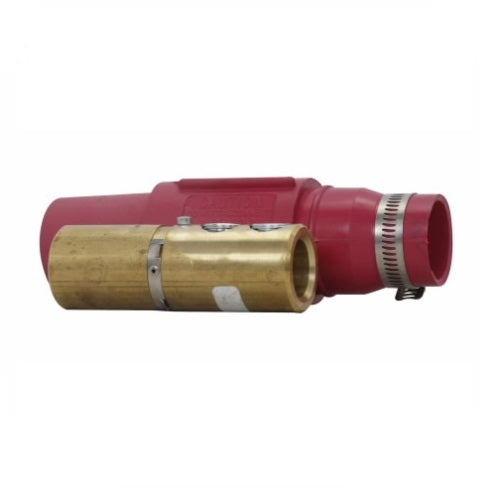

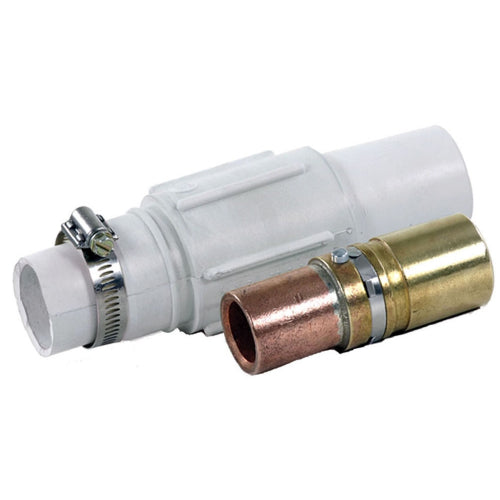

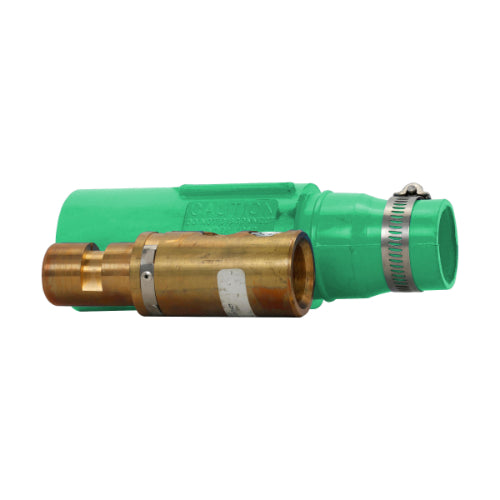

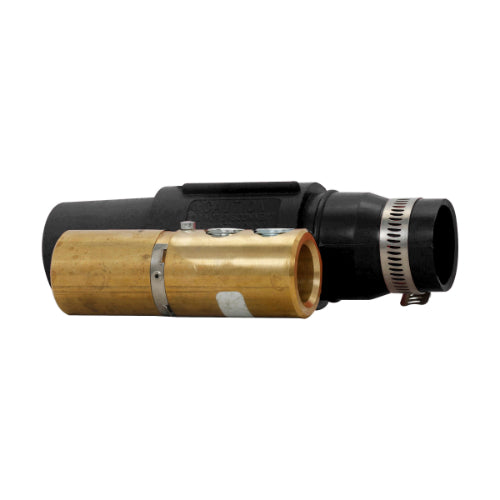

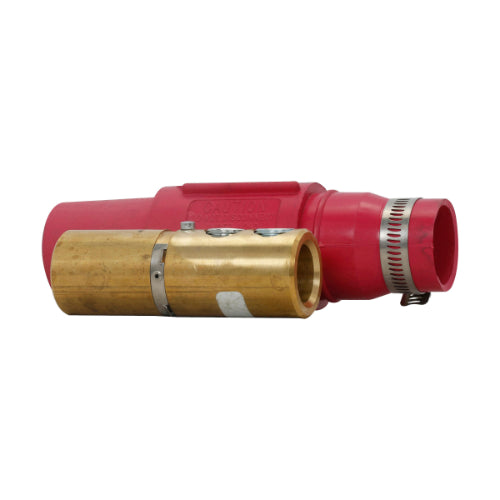

350-500 MCM Double Set Screw Non-vulcanized Plugs
$415.57
$415.57
SKU ECH-E1017-379
This series of Cam-Lok™ connectors J series are safer and stronger that traditional connector and wiring options. This series of cam-loks are made with integrated watertight insulators and feature a strain relief system.
Benefits and Features
Product Specification
Available Options
Benefits and Features
- The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
- The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
- The locked contacts will withstand a pulling force of 1,000lbs
- Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
- The connectors are self-compensating for wear
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Non-metallic retaining screw provides safe, strong and reliable contact retention
- The retaining screw snaps back into place to prevent loss
- The cam-lock plugs and connectors are easily assembled with standard tools
- These J-series non-vulcanized plugs have a cable size of 350-500 MCM
- E-Z align drive pin increases torque and longitudinal strength 300%
- Double set screw termination for added strength
Product Specification
- Cable Size: 350-500 MCM
- Voltage Rating: 600 volts
- Amperage: Up to 545 Amps continuous
- NEMA 3R
- Material: Rubber Insulator
- Temperature Rating: operating ambient: -40°C to 105°C
- NEMA 3R
- Certifications: Listed to UL1691, Listed to CSA C22.2 No.1691-12, CSA certified to C22.2, No. 182.3 LR13963
Available Options
- Color options: black, red, green, white, blue, brown, orange, yellow
