Plenum GenSPEED 6000 Enhanced CAT 6 Cable, 1000' Box

Category 6 cross-web design cable for computer networks. This is a 1000 foot plenum cable length. These GenSPEED 6000 Category 6 Cables are designed for data transmission including across the following networks:

• Used for broadband transmission
• Baseband Analog video broadcast
• Copper Distributed Data Interface (CDDI), Token Ring, ATM
• Suitable for Ethernet Based network cables such as IEEE 802,3:1000 BASE-T, 100 BASE-TX, 10 BASE-T, PoE, PoE+

Features

• These Plenum cables have a range of features that benefit users beyond other makes and cable wire manufacturers

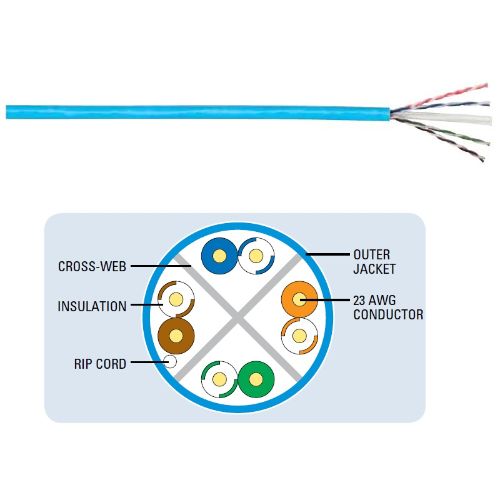

• They are engineered to provide stable and continuous performance with their cross web design of wires.
• Maximum pair separation that increases key electrical performance
• The cables are designed to operate at a guaranteed frequency of up to 350MHz.
• The cable are part of the TRU-Mark ® brand designs which have footage markings from 1000’ to 0’
• 23 AWG Solid Bare annealed copper conductor
• Rip cord applied longitudinally under the jacket
• The plenum type jacket is flame retardant PVC and has a low smoke emission
• Insulation is plenum type of fluoropolymer
• It is important to note that General Cable has designed these cables in accordance with industry standards: UL Listed, ICEA listed and RoHS Compliant

Electrical Characteristics

• DC resistance [max]: 9.38
• DC Resistance unbalanced [max] individual pair %: 4.00
• Delay skew [max] (ns/100m): 45
• Nom. Velocity of Propagation (%Speed of Light): CMP: 70, CMR: 68
• Characteristic Impedance (frequency: 1-200MHz): 0hms (100±15)

Physical Data

• Nominal Cable Diameter (in): 0,235
• Nominal Cable Weight (lbs/1000ft): 28
• Minimum Bend Radius (in): 1.0
• Maximum Pulling Force (lbs): 32
• Temperature Rating (°C) Installation at 0 to +60 Operation at -20 to +75
