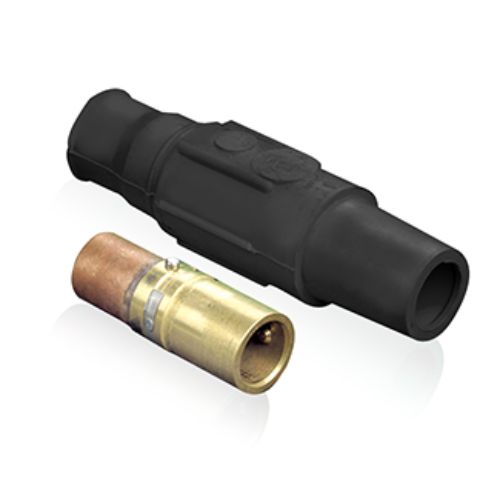

23 Series Taper Nose In-Line Latching Connector, 350-500MCM, 690 Amp Max
$457.70
$457.70
SKU LEV-23L22-E
Application
are used on the 23 series connectors and receptacles to protective and shield them for the harsh navy and shipyard environment.
Benefits and Features
Electrical Specifications
are used on the 23 series connectors and receptacles to protective and shield them for the harsh navy and shipyard environment.
Benefits and Features
- Made from Santoprene which is durable and hardy able to withstand the weather at sea and any physical strain
- Santoprene is resistant to UV and chemical exposure
- The protective covers are also vibration resistant, holding strong during usage. These connectors will not vibrate or loosen, ensuring high conductivity and maximum efficiency.
- Insulated for water tightness and safety
- Allows for quick connect and disconnect
- Have been tested to meet Navy standards
- Male contacts provide 40% more surface contact with the female vs. competitive products, ensuring greater conductivity while preventing burnout.
Electrical Specifications
- Max. Amperage: 690 Amp
- Max. Voltage: 600 Volt
- Cable Range: 350-500MCM
- Connection Type: Crimped
- Contact Material: Brass
- Sleeve Material: Santoprene TPV
- Strain Relief: Copper Wire
