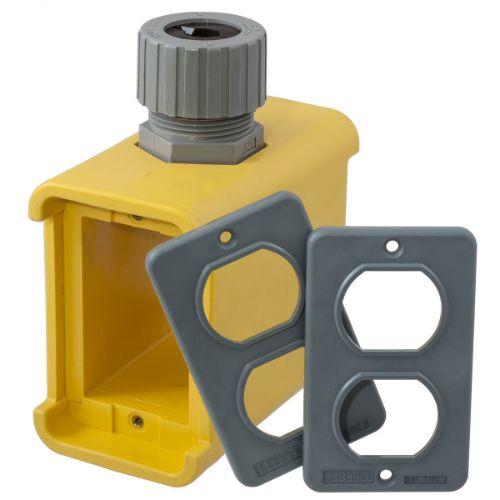

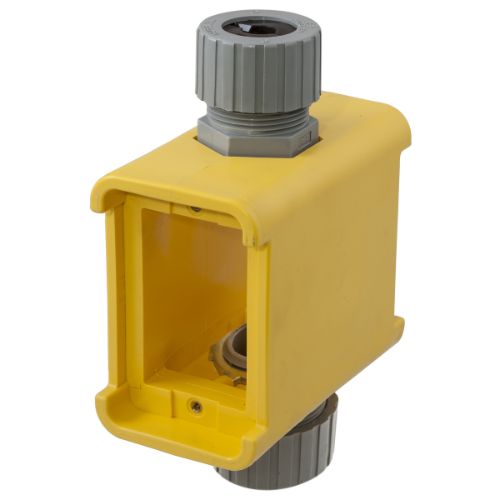

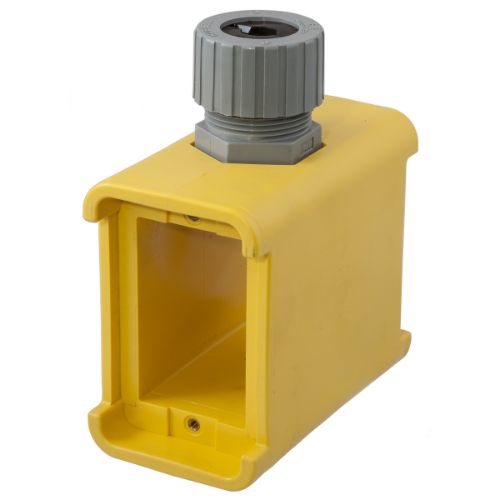

Pre-Assembled Portable Outlet Boxes, 3/4" Deep

$77.41
$77.41
SKU HUB-HBL3099
Categories:
Pre-Assembled Portable Outlet Boxes with Cord Connector Installed are small boxes that have receptacles inlet and outlets to allow you to provide safe power on places such us industrial plants, maintenance projects, entertainment locations and sets, construction sites, factory facilities, and shipyards. These boxes are small, approximately 6” in height and 5” in width, making them easily transferable and portable to just about anywhere on your site.

Features
  • These boxes, from Hubbell, have several feature designs that make them well suited for this kind of temporary and portable provision of power.
  • Thermoplastic Elastomer Housing Enclosure for safe provision of power
  • High strength, that exceeds the UL crush requirements. This makes is perfect for sites that make have vehicular traffic, the boxes will not break if driven or trodden over.
  • Lightweight material that although strong, makes it easy to handle
  • Withstand high temperatures well without any chemical changes as well as function properly in extreme cold, making it well suit for harsh environments
  • Withstand corrosive material and environments
  • Resistant to chemicals and detergents
  • Wiring room large enough to accommodate the broadest range of device requirements
  • These boxes are ¾” deep so that you have enough room to insert the wiring that you require Brass inserts for maximum strength
  • Watertight Rated NEMA 3R resistant to water, moisture or damp
  • High visibility yellow color
  • Very easily identifiable and visible, perfect for work sites with a lot of vehicular or foot traffic

Materials
  • Box Enclosure: Thermoplastic Elastomer
  • Gotcha Ring: Polypropylene
  • Strain Relief Nut: Nylon
  • Grommet: Thermoplastic Elastomer
  • Locknut: Steel, Zinc Plate
  • Threaded Inserts: Brass

Environmental Perfomance
  • Flammability UL94 V-0
  • Moisture Resistance UL Type 3R
  • Operating temperatures -40°C (without impact) to +60°C continuous
  • UV Resistance All exposed materials are UV stabilized
  • Mechanical Performance: Cord Accommodation .38" - .63
Other options are available upon request. Please contact us at 800-597-9311 to further assist you.
