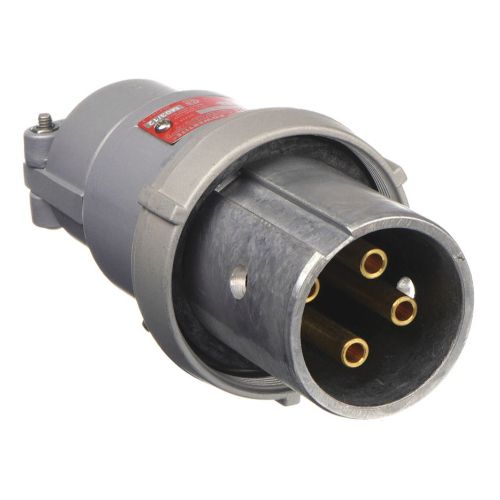

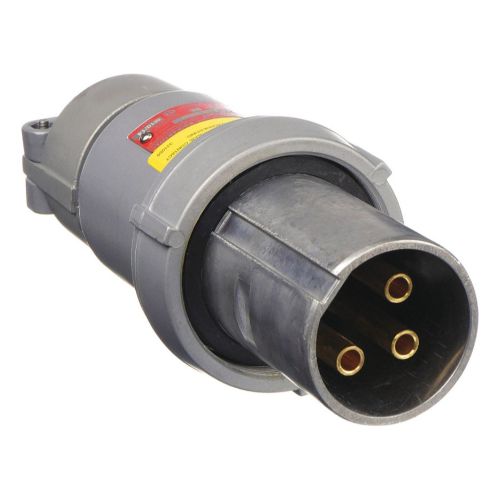

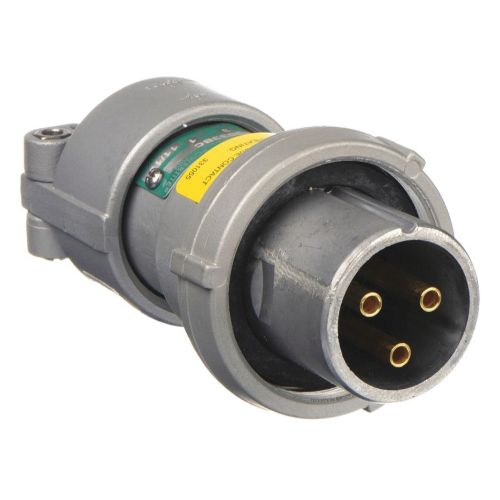

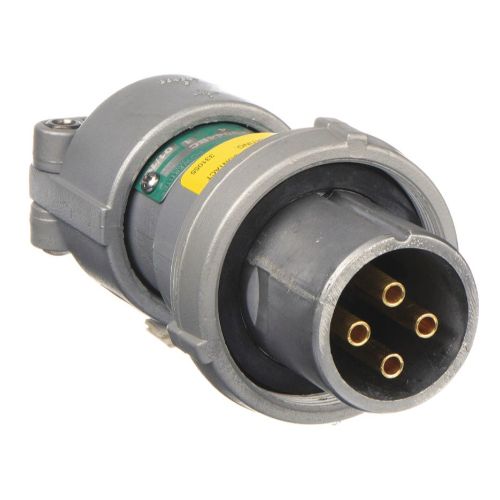

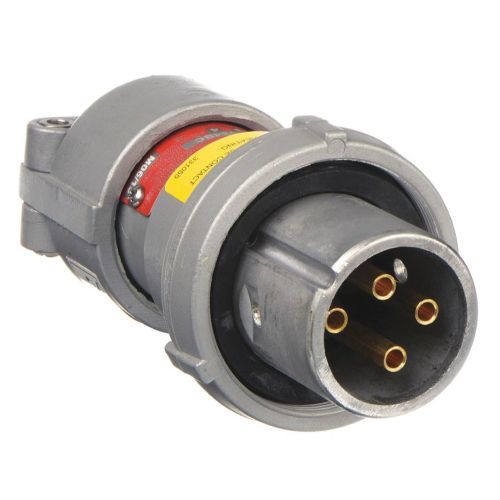

Powertite Series Pin and Sleeve Clamping Ring Plugs, 600VAC

Application
This range of Powertite Series Plugs is made to provide power, portable or fixed connection, to generator units, welders, pumps, compressors, cellular relay stations and SCR/VFD houses. ACP plugs suitable with cables used in oil rig installations. They are useful for these items, precisely because they can with stand the strain and robust usage that occurs in such conditions. They are perfect for ‘ship to shore’ and backup/temporary power applications. In addition this Connector range can also be used in locations where weatherproof enclosure is required.

Benefits and Features

• Metallic Clamping Ring Plug
• Plug has mechanical cable clamp which provides strain relief to the conduct cables and allows for easy cable replacements
• Pressure wire terminals that allow the cable to be readily replaced
• Style 1 Plugs – grounding conductor is directly wired to solderless lug which in turn is connected to plug housing
• Style 2 Plugs: o Grounding conduct is directly wired to the solderless lug in the plug housing but also to an extra grounding pole o Grounding pole has copper alloy grounding jumper strap that connects to plug housing
• Locking screw prevents the cable collar from backing off
• Featured neoprene bushings to accommodate a wide variety of cable diameters
• Neoprene Bushing provides a positive grip on cables as small as 0,390 inches
• Busing highly resistant to water and prevents the entrance of dust and water
• 30 Amp plug clamp used in first position with smallest

Electrical Specifications

• Area Classification: Listed for Ordinary (Unclassified) Locations; NEMA 3, 3R, 4, 4X
• Amperage: 30, 60, 100
• Voltage: 600 VAC
• Number of Poles: 3 or 4
• Number of Wires: 2, 3 or 4
• Hertz: 50-400 Hz
• Plug Cable Diameter: 30, 60 Amp: 0.500 to 1.250; 100 Amp: 0.875 to 1.906 3.500
• Mounting Box Entries: Dead-End or Feed-Thru Materials and Finishes: Plug, receptacle, connector and mounting box housings: copper free (4/10 of 1% max.) aluminum with epoxy powder coat finish. Fiberglass reinforced polyester insulating blocks with natural finish
