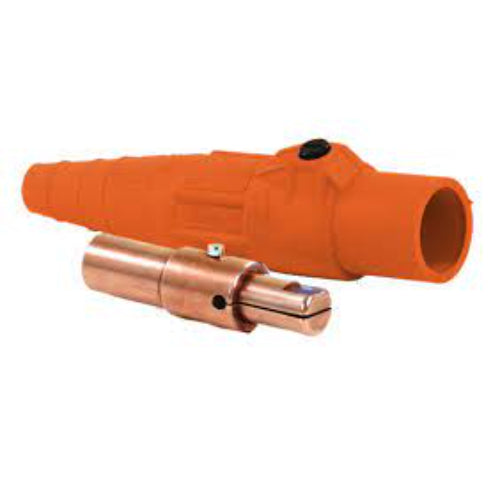

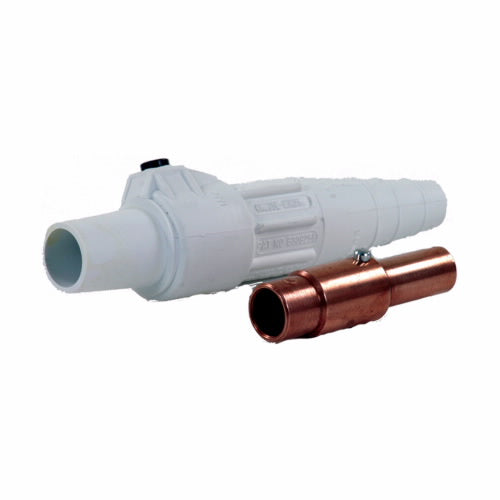

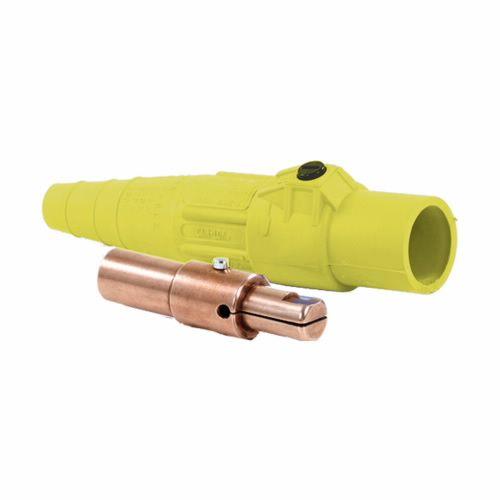

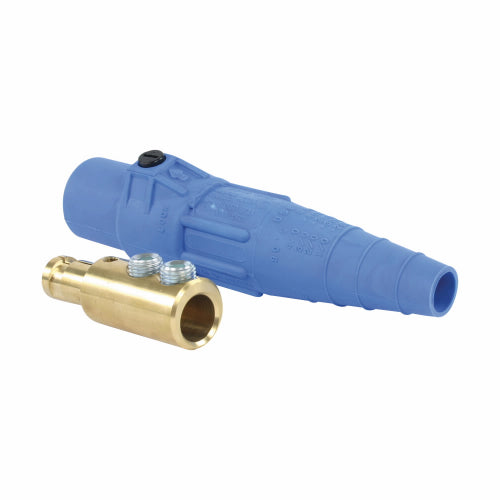

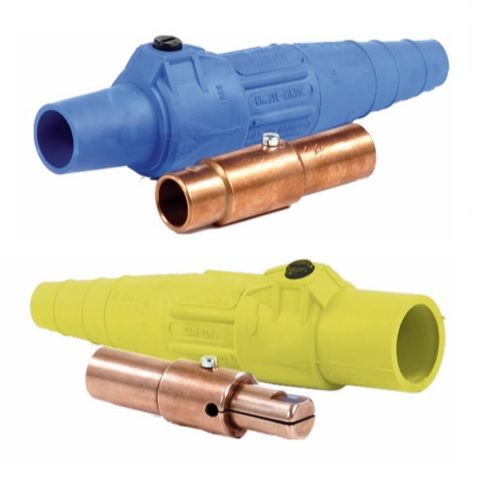

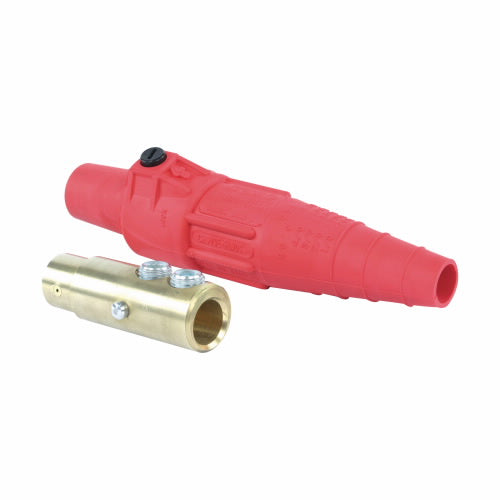

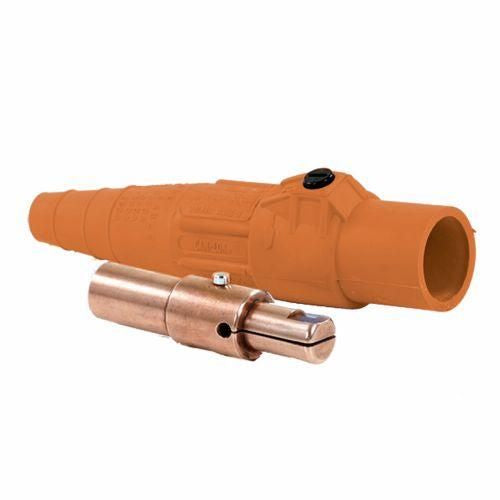

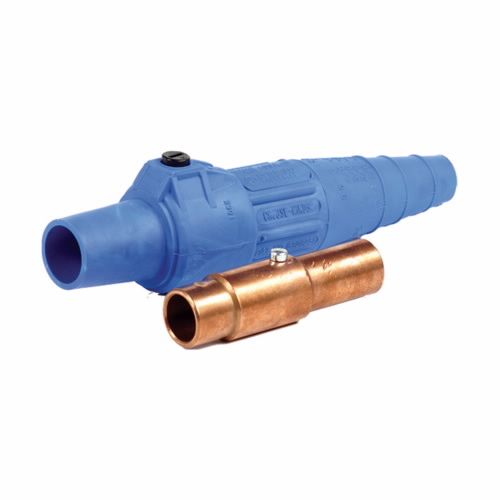

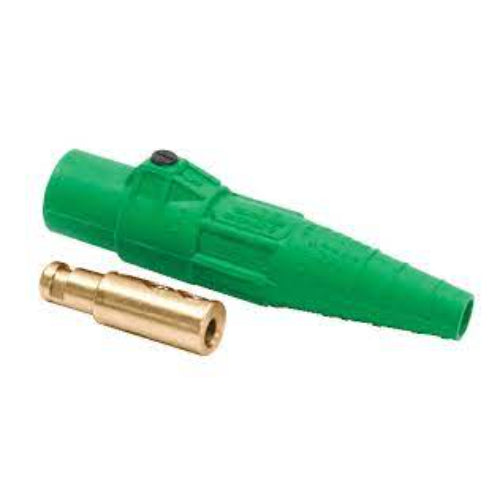

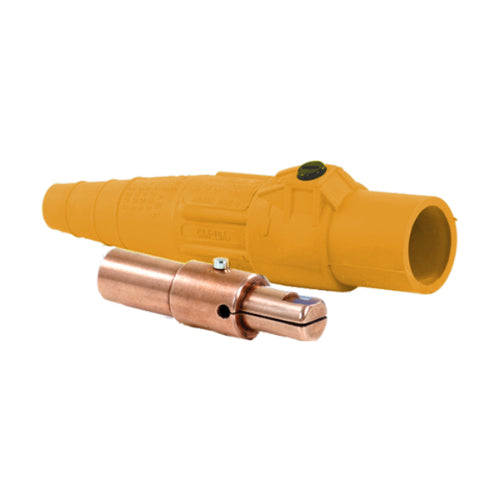

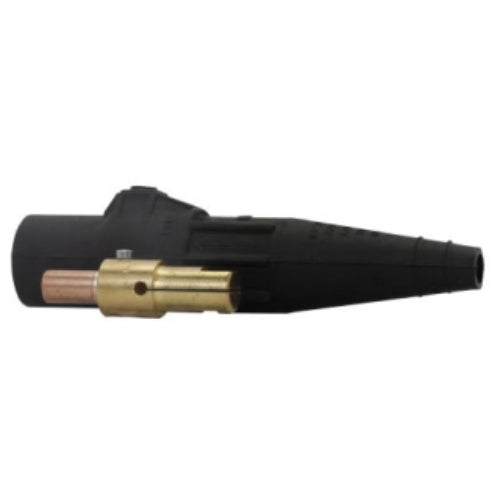

Cam-LoK J-Series E-Z1016 Crimp Plugs, Cable Size 3/0-4/0
$228.97
$228.97
SKU ECH-E-Z1016-7724
Staying connected is critical for any business. That why having the right tools is so important. This set of Cam-Lok J series connectors are the right tools. Designed for use in heavy duty demanding environments, these connectors will provide power for portable applications.
Applications
These plugs are ideal for use at
Benefits and Features
Product Specification
Available Options
Applications
These plugs are ideal for use at
- Fares/events
- Concerts and film sets
- Entertainment applications
- Motors and generators
Benefits and Features
- This connectors series is insulated
- The plugs are shatter crack resistant and water tight
- They are heat, weather, ozone, oil and abrasion resistant
- The watertight rubber insulators are molded from color-fast material, color-coded for easy phase identification
- The locking mechanism is a double cam principle that provides a positive, vibration-proof connection
- The locked contacts will withstand a pulling force of 1,000lbs
- Turning the contact 1/3 assures a high pressure contact approaching 600lbs per sq. in. providing minimum resistance
- The connectors are self-compensating for wear
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Non-metallic retaining screw provides safe, strong and reliable contact retention
- The retaining screw snaps back into place to prevent loss
- The cam-lock plugs and connectors are easily assembled with standard tools
- These J-series non-vulcanized plugs have a cable size of 350-500 MCM
- E-Z align drive pin increases torque and longitudinal strength 300%
- Double set screw termination for added strength
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety.
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure.
- Plugs feature a high-strength, molded-in-place locking ring to capture and secure the insulator to the contact.
Product Specification
- Cable Size: 3/0 – 4/0
- Voltage Rating: 600V AC/DC
- Amperage Rating: Up to 400A continuous
- Temperature Ratings: -40°C to 105°C
- NEMA 3R
Available Options
- MALE or FEMALE in Black, Red, Green, White, Blue, Brown, Orange, Yellow
